Door
Hinge
Door

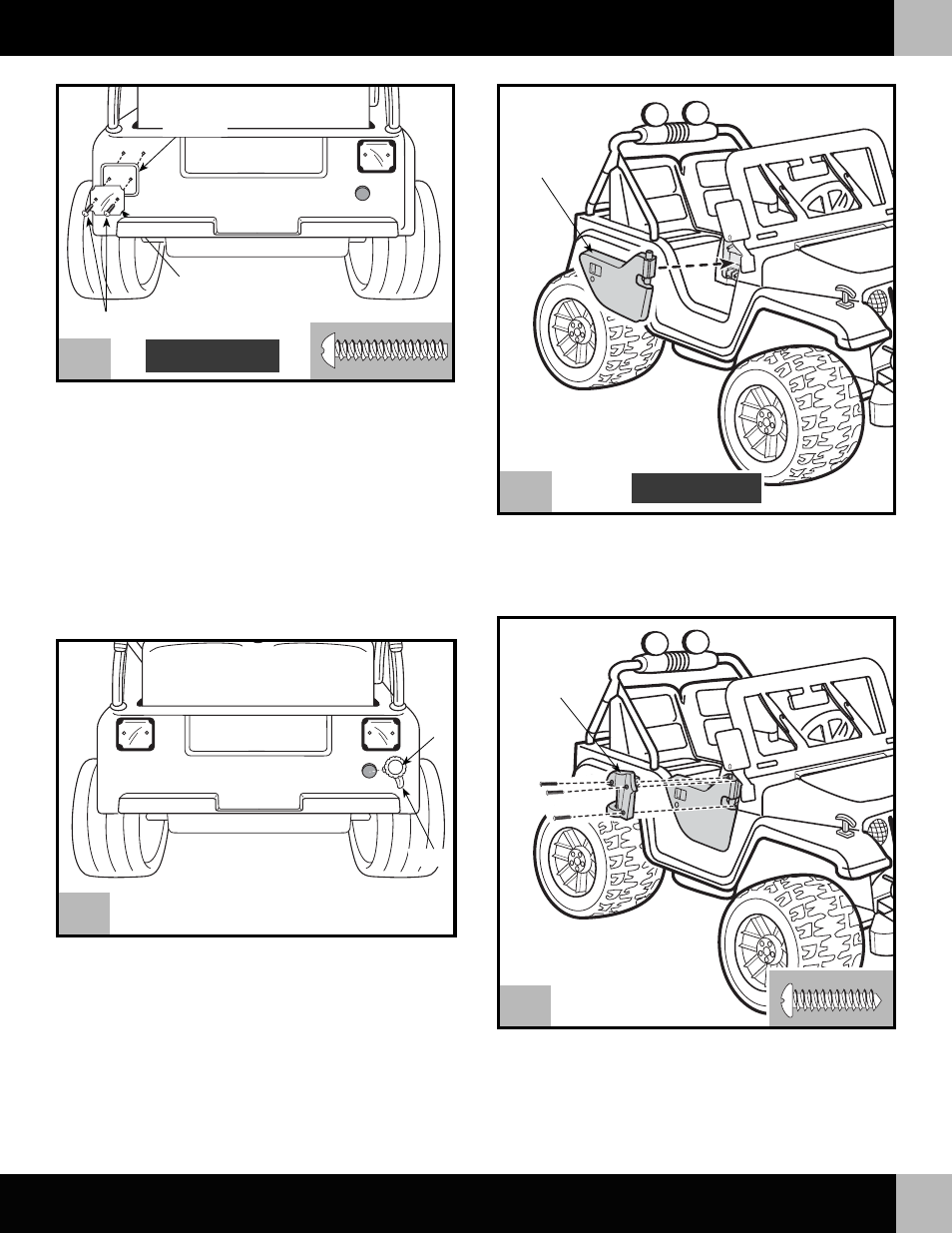

• Fit a door into the groove on the side of the dash.
Hint: Each door is designed to fit one way. If the door does not fit, try
the other door.
29
• Fit a hinge over the top end of the door.
Hint: Each hinge is designed to fit one way. If the hinge does not fit,
try the other hinge.
• Insert three #10 x
3 /
4
" screws into the hinge and tighten.
• Repeat Assembly steps 26 and 27 to assemble the other
door and hinge.
H3427pr-0922
15
SIDE VIEW
• Position the cap so that the tether is down.
• Snap the cap into the hole under the right taillight.
Cap
Tether
26
Taillight
Lens
#8 x 1" Screws
• Turn the vehicle upright.
• Using safety scissors, remove the taillight lenses and the taillight
housings from the plastic connectors. Dispose of the plastic
connectors.
• Face the rear of the vehicle.
• Fit a taillight lens inside a taillight housing.
• Position the taillight housing with lens against the vehicle with the
screw holes aligned, as shown.
• Insert two #8 x 1" screws through the taillight lens, housing and into
the vehicle as shown. Tighten the screws.
• Repeat this procedure to attach the other taillight assembly.
BACK VIEW
Taillight
Housing
ASSEMBLY
F
