23
Sport Bar Support
Side
Fender
PULL
HERE
PUSH
HERE
Rear of
Vehicle
24

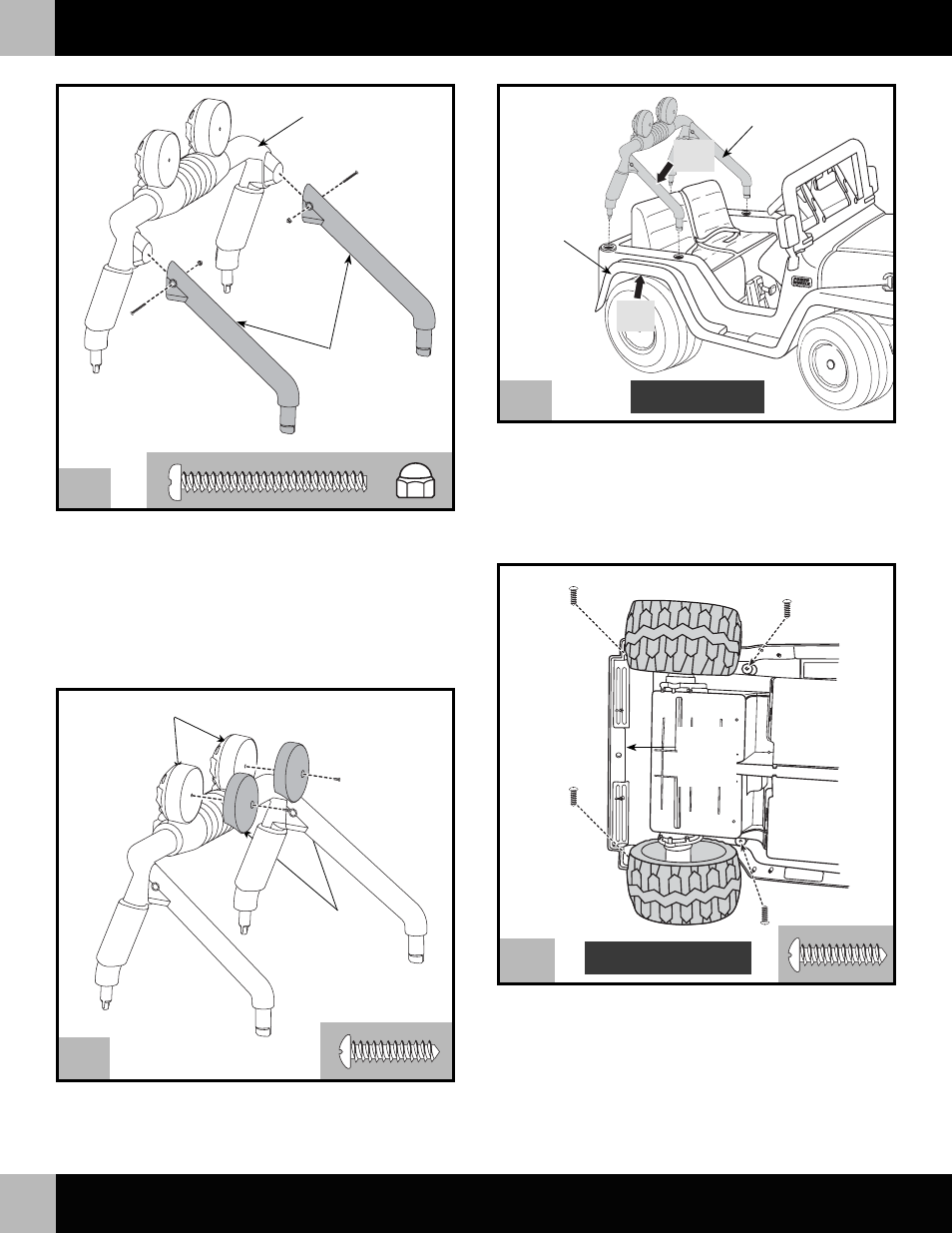

• Fit the sport bar assembly into the holes in the top side of
the vehicle.
• Push down firmly on a sport bar support while pulling up on the side
fender to fit the sport bar into the vehicle.
• Repeat this procedure on the other side of the vehicle.
• Turn the vehicle on its side.
• Insert two #10 x
3 /
4
" screws into the holes (behind the rear wheels)
in the underside of each rear wheel well, through the vehicle and
into the ends of the sport bar. Tighten the screws.
• Next, insert two #10 x 3 /
4
" screws into the holes (in front of the rear
wheels) in the underside of each wheel well, through the vehicle
and into the ends of the sport bar. Tighten the screws.
23 23 25
23
• Fit the remaining light covers to the top of the sport bar, as shown.
• Insert a #10 x
3 /
4
" screw into each light cover. Tighten the screws.
Light
Covers
Lights
SIDE VIEW
BOTTOM VIEW
• Fit a support to one side of the sport bar.
• Insert a #8 - 32 x 1
5 /
8
" screw through the support, the sport bar and
out through the support.
• Fit a #8 acorn lock nut to the end of the screw.
• While holding the acorn lock nut with an adjustable wrench or pliers,
tighten the screw.
• Repeat this procedure to fasten the other support to the sport bar.
22
Sport Bar
Supports
14
ASSEMBLY
F
