Troubleshooting and Repair

6.4.10 External Keyboard Check

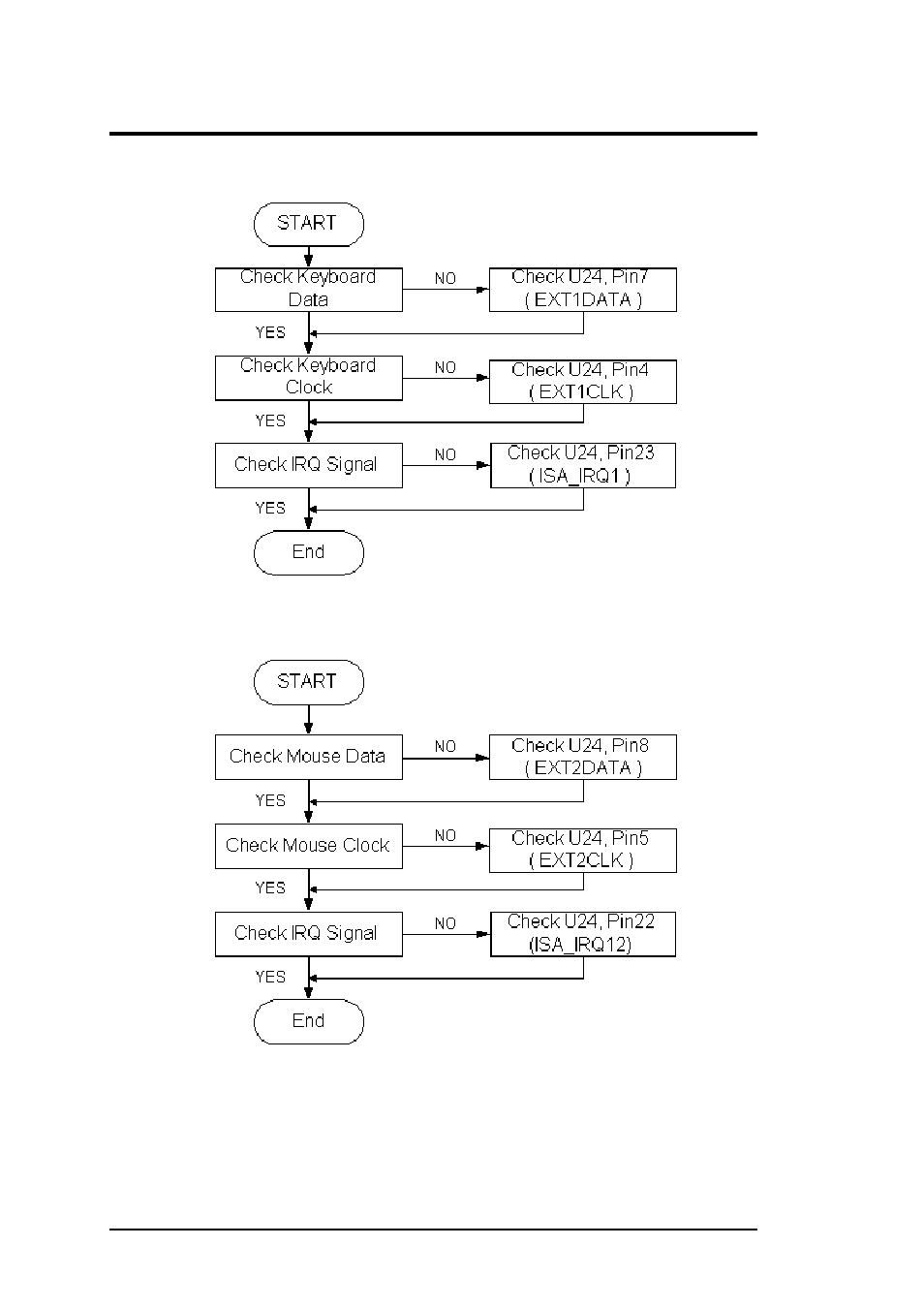

Figure 6-9

Internal Keyboard Check

6.4.11 PS/2 Mouse Interface Check

Figure 6-10

PS/2 Mouse Inteface Check

6-18

FIC M295 / M296 Service Manual
