FIC M295 / M296 Disassembly Instruction

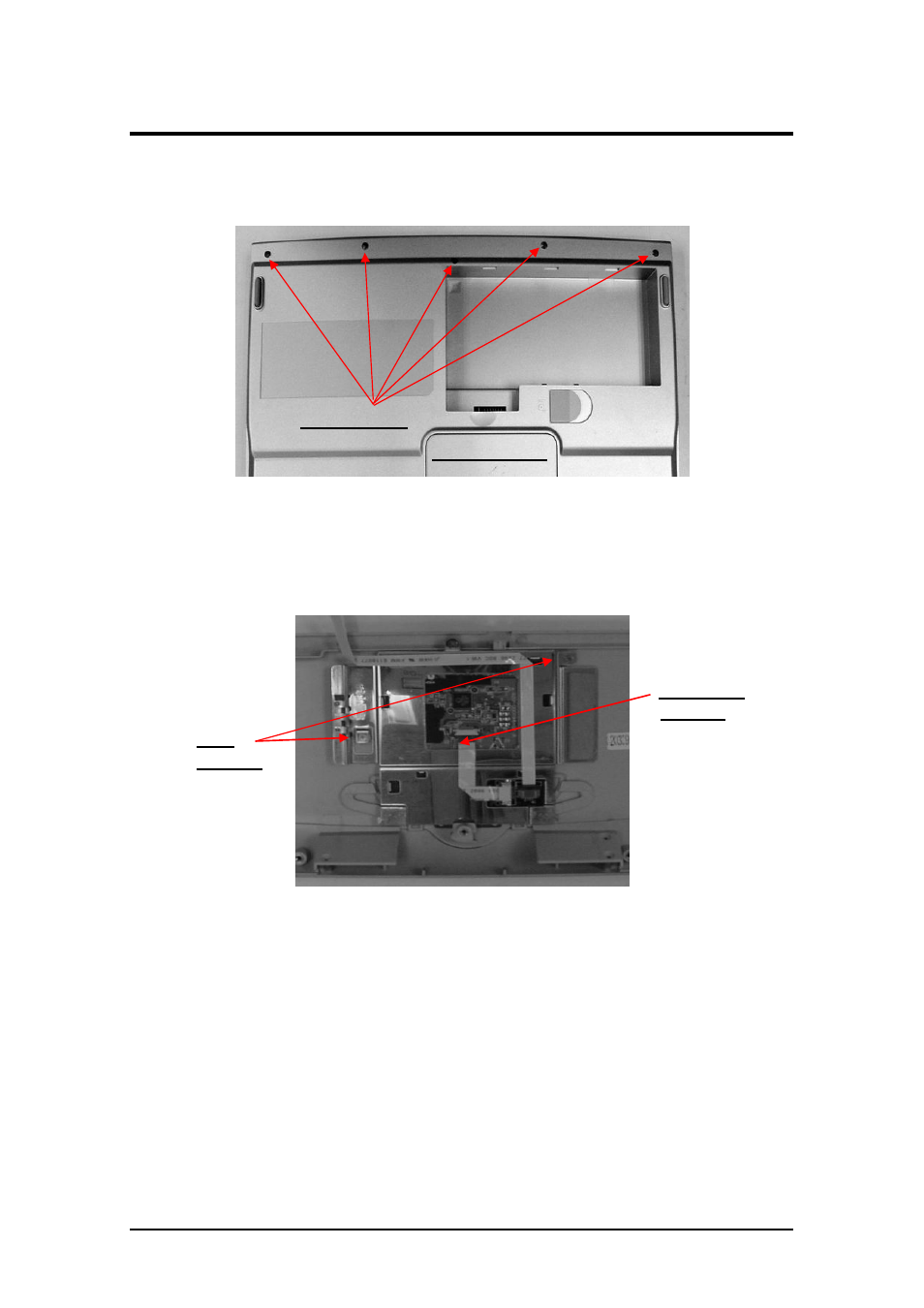

2. To remove the palm rest cover, you need to remove five screws on the under side as
indicated on the figure below.
Five Screws
Bottom Case
Palm Rest Cover Screws underneath the under side
3. Turn the machine upward. Slowly lift the palm rest cover, and you will find two cables
connected from the glide pad and audio DJ panel to DC-DC board. Pull them out in order to
separate the palm rest cover from the system unit.
Two
Screws
Glide Pad
Module
Glide Pad Disassembly
4. Underneath the palm rest cover, you will see the glide pad module assembly. Remove the
two screws on the glide pad module. When the glide pad board is removed, you can remove
the select-button bracket casing covering the glide pad board.
P -4
