Troubleshooting and Repair
6.4.8 CD-ROM Interface Check

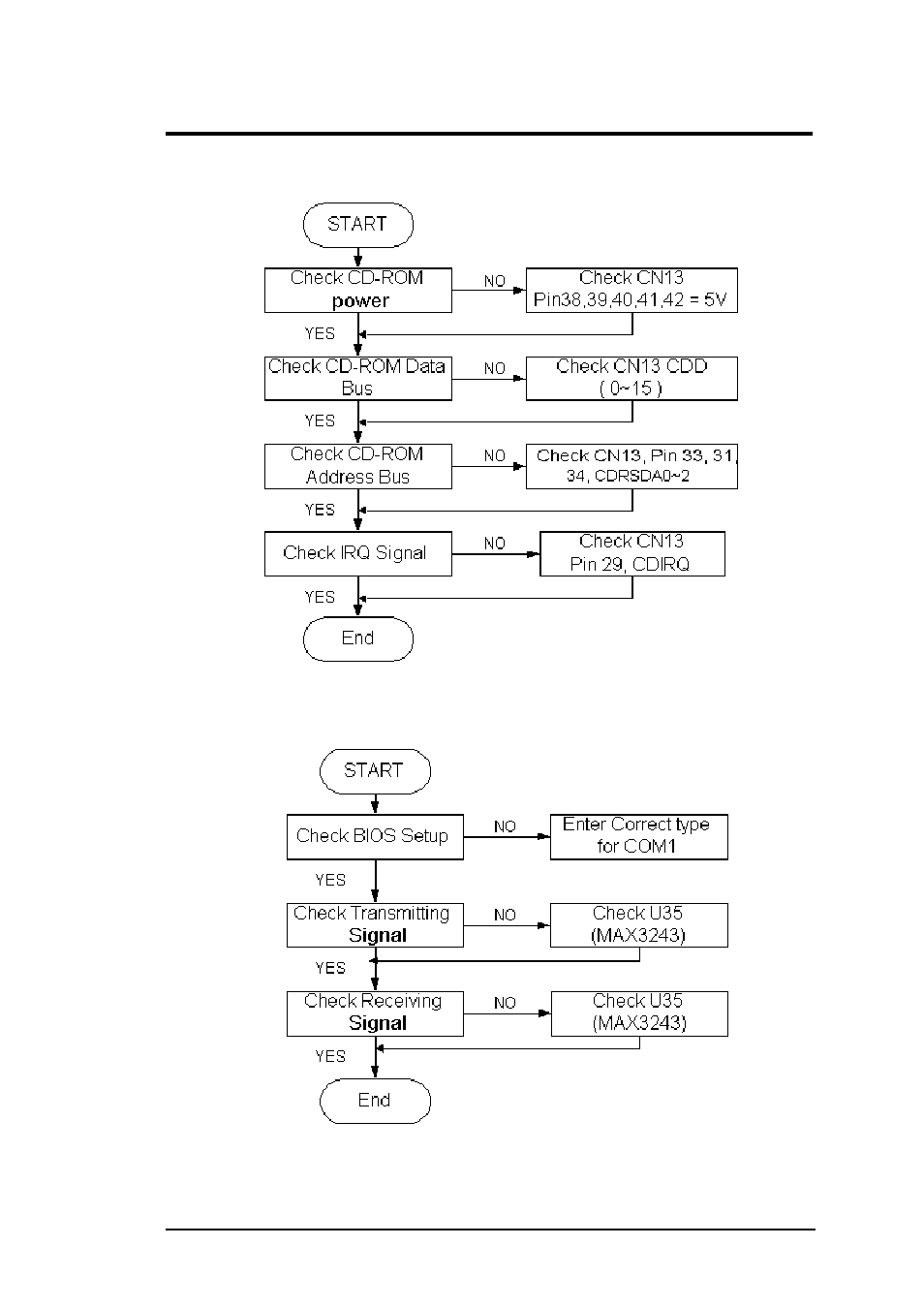

Figure 6-7 CD-ROM Interface Check
6.4.9 Serial Port Interface Check
Figure 6-8 Serial Port Interface Check
