SUFF/UFF FILTRATION SYSTEMS
CHAPTER 6: INSTALLATION AND OPERATION
6-4
6.2.2 Assembling the Filter
FILTER PAPER AND HOLD DOWN RING
1. Place the support grid in the bottom of filter
pan.
2. Put one filter paper sheet on top of the
support grid. Be sure the paper covers the
filter pan bottom and laps two inches onto the
pan wall.
3. Position the hold-down ring on top of the
filter paper. Ensure the hold-down ring seals
around the support grid. This prevents air
from getting into the system.

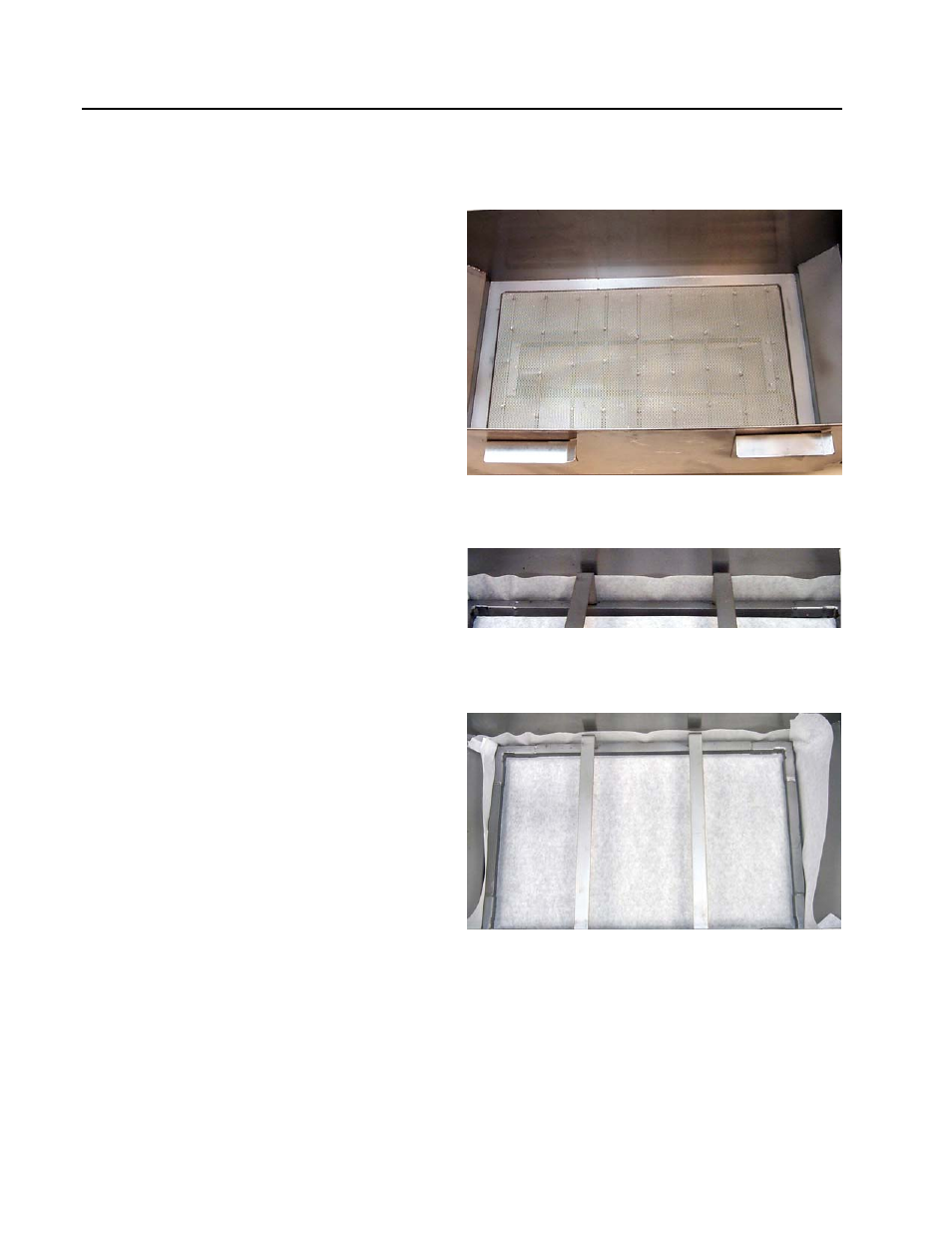

Support grid properly placed in filter pan.
Ensure filter paper overlaps two inches on all
sides and is evenly distributed under the hold-
down ring.
Hold-down ring positioned correctly over filter
paper in filter pan.
