6 Kapex KS120 Miter Saw
Intended Use
The Kapex miter saw is intended to cut wood, plastic,
aluminum, and similar materials. All applications beyond
this are regarded as improper use. The tool should not be
altered or used for any other purpose other than as
specified in these operating instructions. Using the tool in
contravention to this manual may lead to injury and will
void your warranty. The user shall be responsible and
liable for accidents, injuries, and property damage
resulting from misuse or abuse of this tool.

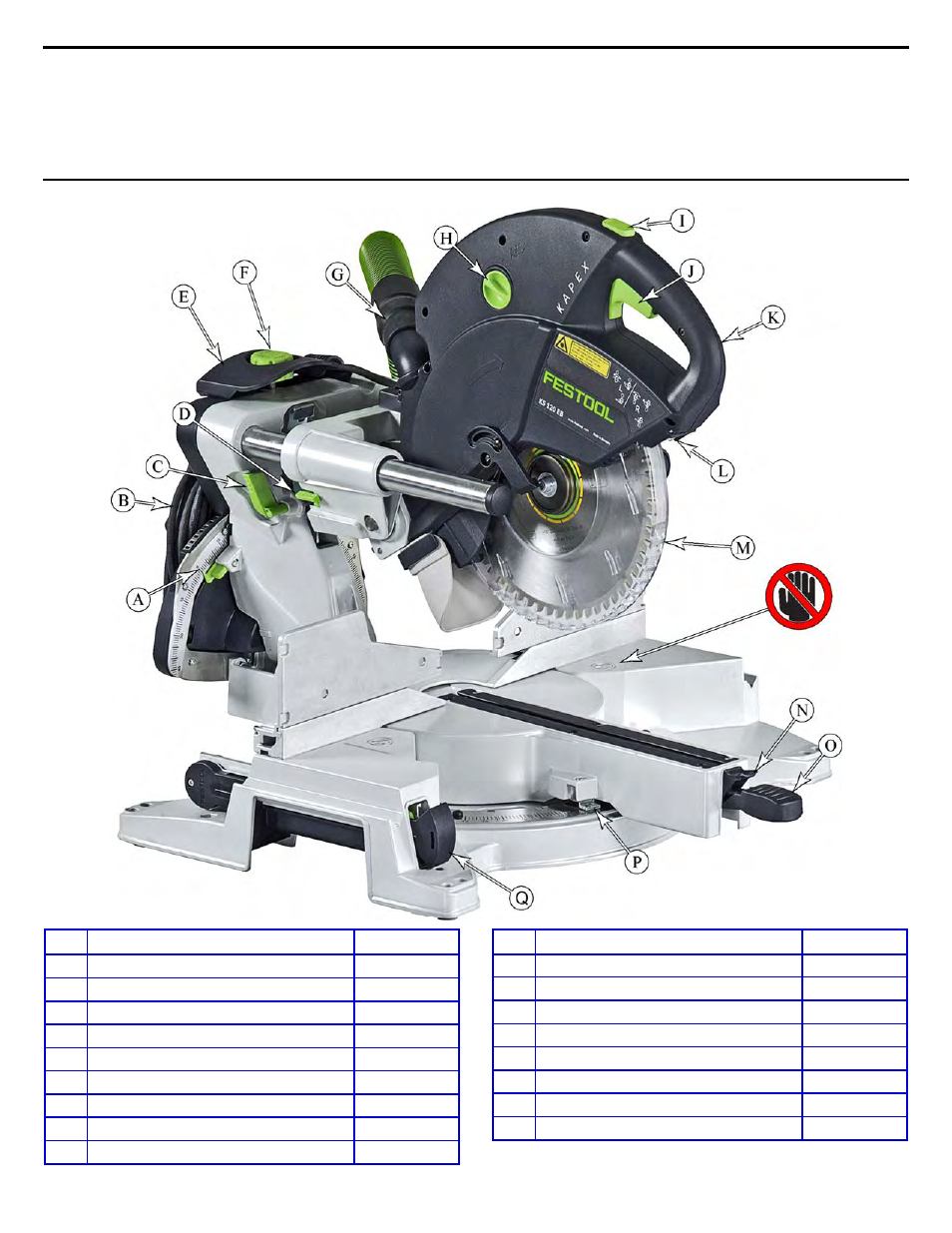

Functional Description
Item Name or Description Ref. Page(s)
A Bevel Gauge and Pointer (both sides) 12, 18
B Power Cord Storage 10
C Tall Miter Latch 14, 22
D Tall Miter Release 14, 22
E Bevel Lock 12, 18
F Bevel Range Selector 12, 18
G Dust Extraction Port 10
H FastFix ® Arbor Lock 9
I Trigger Lock 11
Item Name or Description Ref. Page(s)
J Power Switch/Trigger 9, 10, 11
K Main Handle 11, 17
L Laser Dust Lens 28
M Blade Guard 9
N Miter Stop Release Lever 12, 15, 18, 20
O Miter Lock Lever 12, 15, 18, 20
P Miter Gauge and Pointer 12, 15,
Q MiterFast™ Angle Tool and Storage 15
