Technical Data
10/100/1000 Ethernet ASE
With SPAN mode capabilities
Key features
500 MB of total analysis
SPAN mode deployment
Deployable in DS3, NxDS3, Fractional
OC3, and Ethernet to Premises topologies
IP Transport or LAN Visibility software
Voice over IP (VoIP) analysis capability
Application analysis capability
LAN management port
Realtime events
•
•
•
•
•
•
•
•
The Visual UpTime® Select™ 10/100/1000 Ethernet
ASE enhances the analysis functionality of Visual
UpTime Select for Ethernet networks. The ASE
provides up to 500 Mbps of detailed network traffi c
analysis and management, while maintaining full wire
speed pass-through of all traffi c. It supports both IP
Transport and LAN Visibility software
Designed for business class DSL and cable, the
10/100/1000 Ethernet ASE has a wide variety of
deployment options. The IP Transport Ethernet ASE is
deployed off a LAN switch SPAN port (see fi gure).
The LAN Visibility Ethernet ASE is deployed on the
LAN. The ASE collects and displays application fl ow
traffi c on the LAN between clients and application
server. In contrast, the IP Transport ASE is designed
to display only traffi c to or from the WAN, and ignore
local traffi c (such as between a client and an Inter-
net or application server).

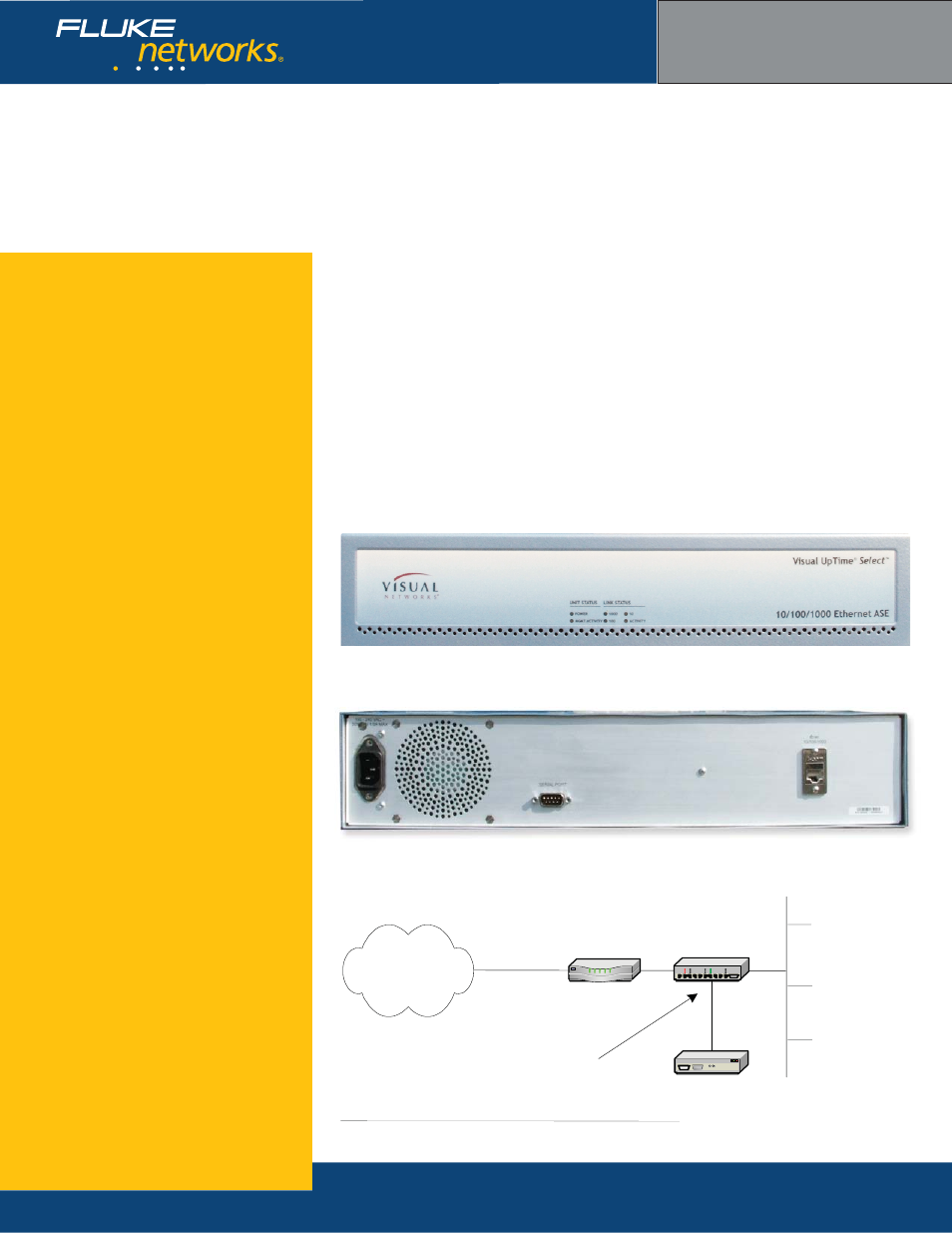

Ethernet inline probe model 807-0220 front view
Visual UpTime Select
ASE model 807-0220
Ethernet inline probe model model 807-0220 rear view
Ethernet probe model 807-0220 deployed on a LAN switch SPAN port
LAN Ethernet ASE
Customer
Edge Router
Wide Area
Network
LAN Switch
SPAN port
