Technical Data
T1 CSU/DSU ASE
W i t h M o d e m
Key features
Inband management capabilities
Multi-Protocol or IP Transport software
Service Level Agreement (SLA) metrics
Drop-and-Insert capabilities through
DSX port
Internal modem
Voice over IP (VoIP) analysis capability
Application analysis capability
LMI spoofi ng
LAN management port
Power loss detection
Realtime events
•
•
•
•
•
•
•
•
•
•
•
The Visual UpTime® Select™ T1 CSU/DSU ASE is
deployed on a T1 access line at the demarcation point
between the provider network and customer premises.
It supports full and fractional (FT1) T1 networks and
provides connectivity through V.35 interface.
The ASE supports Multi-Protocol software for deploy-
ment in standard frame relay or HDLC networks and
IP Transport software for deployment in networks that
use IP switching.
This ASE features an internal modem that allows
users to establish a telephone connection to either
the ASE’s administrative interface or a pass-through
connection through the serial port.
In addition to performing standard CSU/DSU
functions—such as BER tests, loopbacks, and power
failure detection—the ASE is capable of inserting
management traffi c.

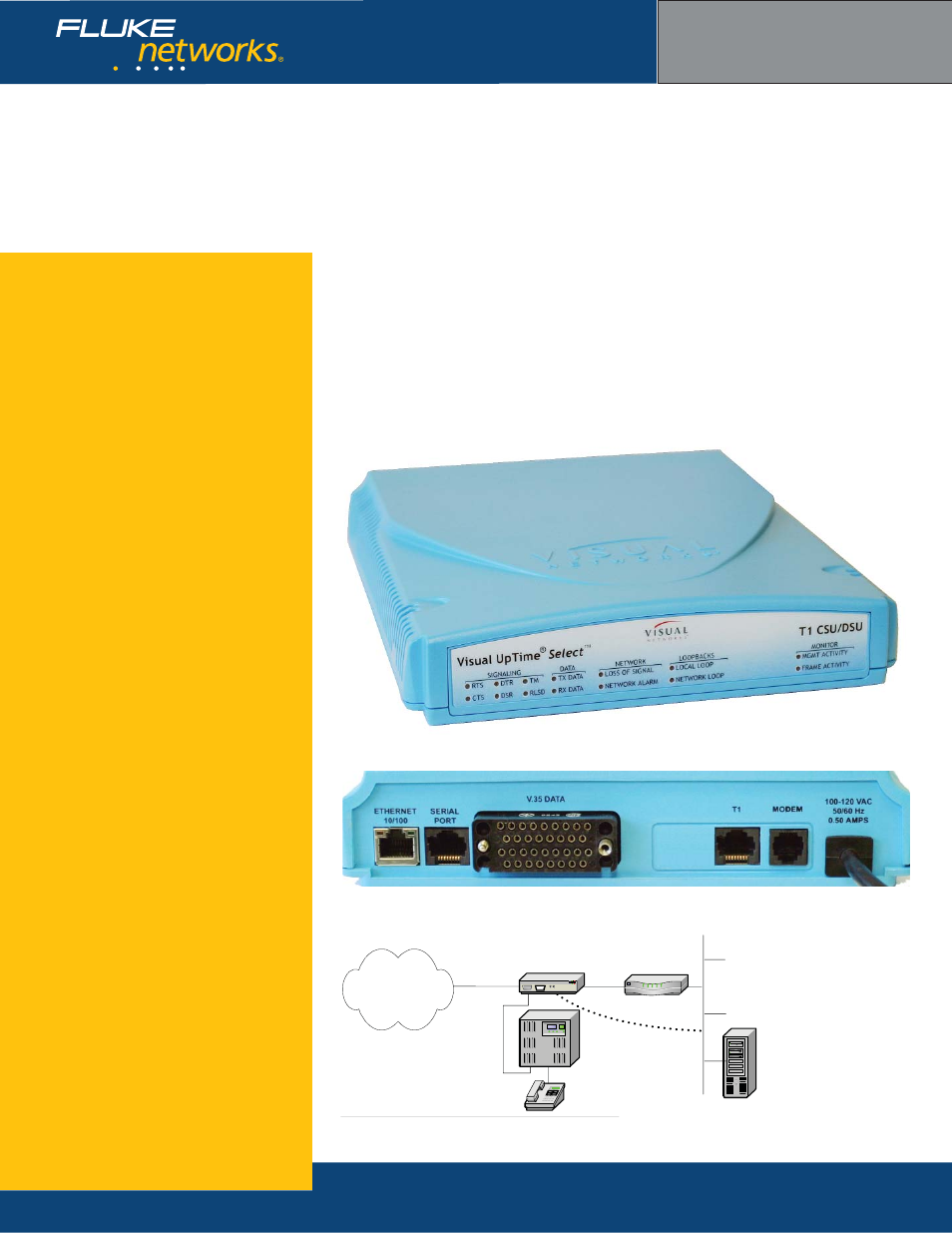

T1 CSU/DSU model 807-0111 rear view
T1 CSU/DSU model 807-0111 front view
T1 CSU/DSU model 807-0111 position on network
Visual UpTime Select
ASE model 807-0111
T1 Access
Line
Visual
UpTime
Select
Server
V.35
Line
Optional LAN
Connection
CSU/DSU
ASE
Wide Area
Network
PBX PBX
T l h
Modem
Connection
