Follett VU300 User Manual
Page 21
24V
A
C
(YEL)
NO
NC
24V
A
C
(RED)
C
L2 (WHT)
PUMP
LID
ready
MTR
Beverage bath control
board detail
COLD
WARM
BEV. BATH
INDICATOR
0
0
0
I
I
I
COM
N.O.
(orange)
Reference #
Description
Part #
1
Transformer,
24V
502058
2
Relay,
dispense
501826
3
Strips,
terminal
502472
4
Switches (power and icemaker)
502209
5
Board, circuit and probe (one unit)
502473
6
Bracket,
probe
00111484
7
Switch,
safety
502511
Not shown
Switch, safety, drain pan assembly, LH unit
502500
Not shown
Switch, safety, drain pan assembly, RH unit
502501
Not shown
Switch, dispense, lever
502505
Not shown
Bracket, safety switch, drain pan, RH
502609
Not shown
Bracket, safety switch, drain pan, LH
502610
Not shown
Thermostat, bin level
500514

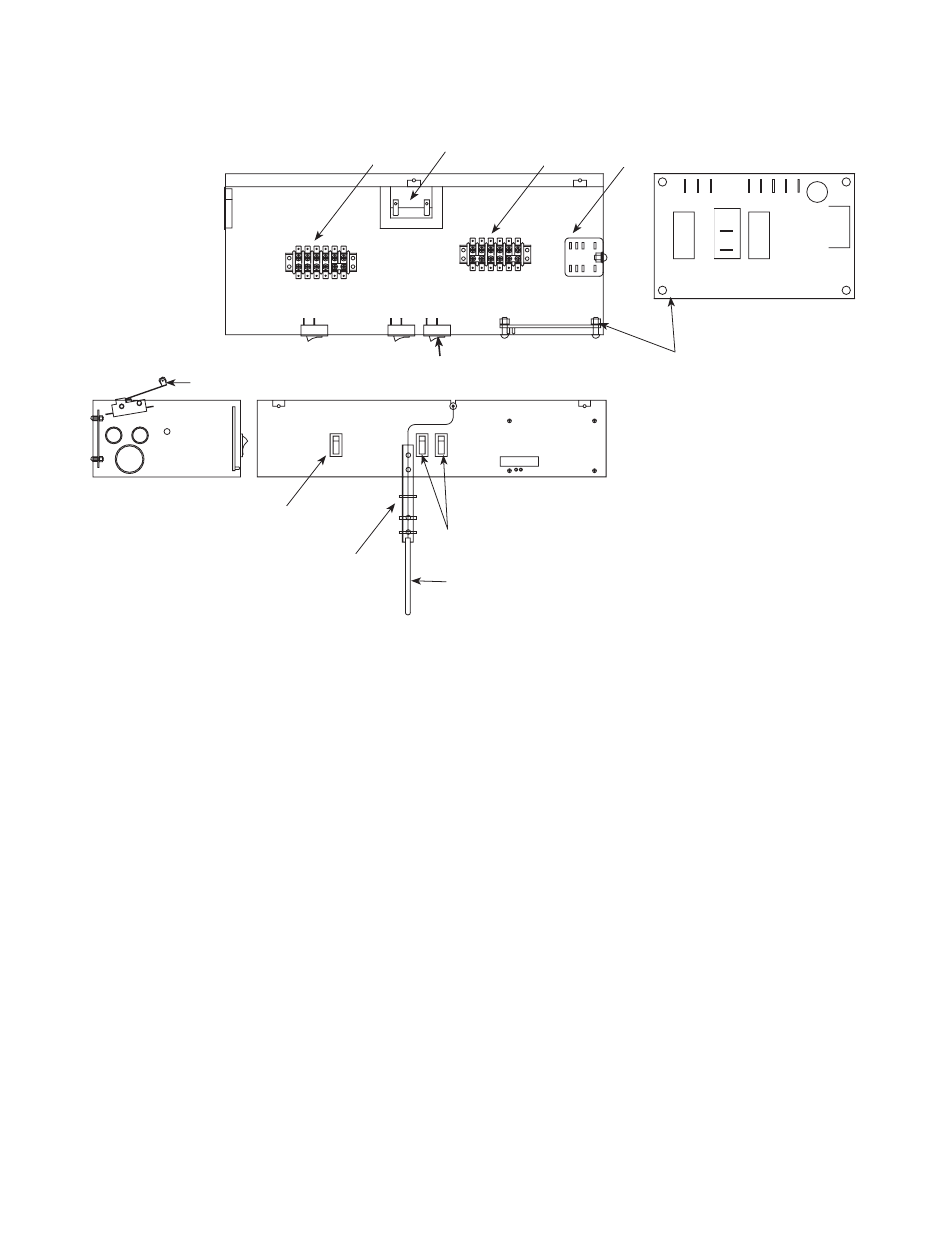

Electrical components
Top View
Front View
3
1
4
5
7
4
4
6
Side View
3
2
22
5
