Follett VU300 User Manual
Page 20

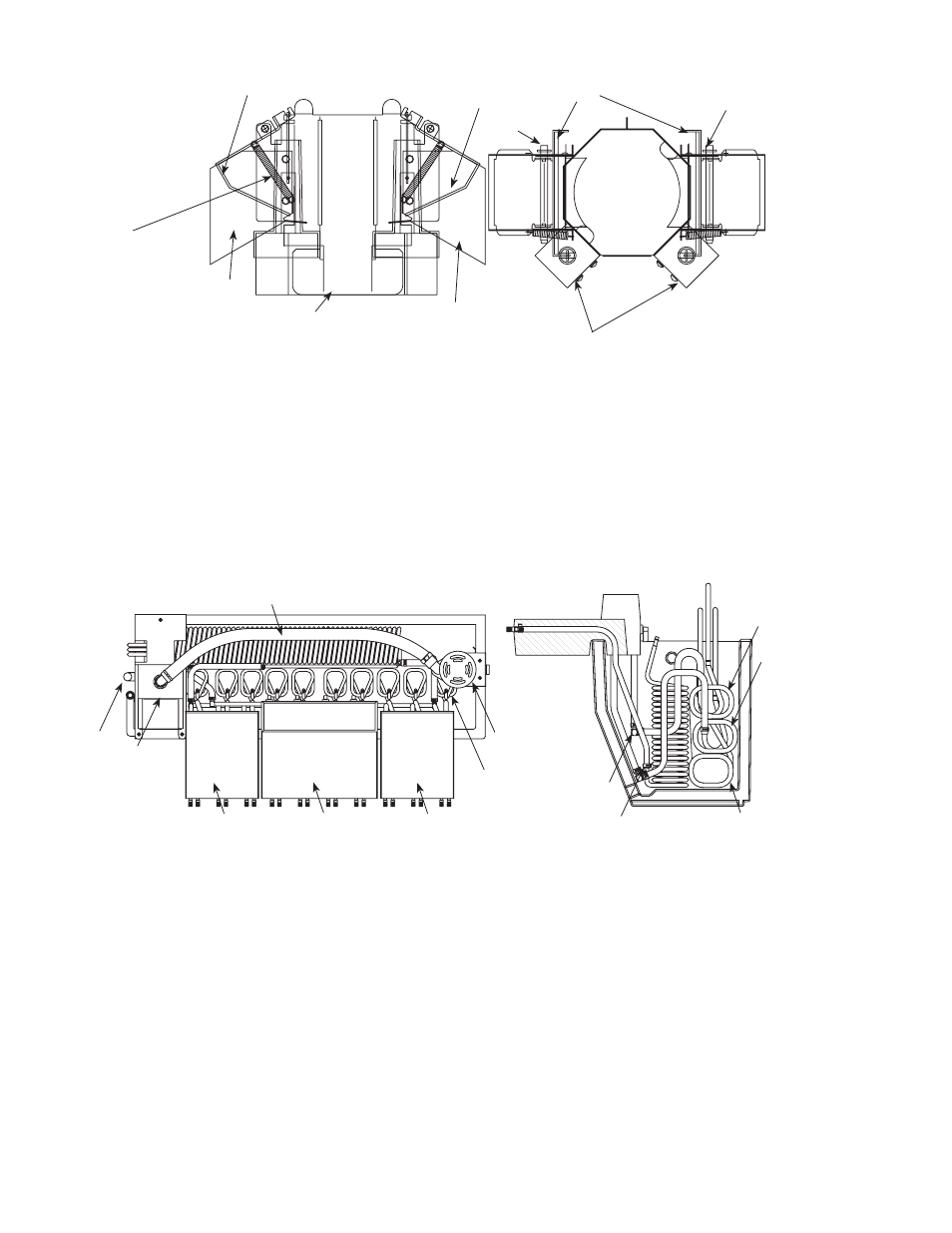

U300 dispense assembly
Side View
U300 dispense assembly
Top View
2
1
4
1
4
6
3
3
7
Reference #
Description
Part #
1
Pump, water bath (includes mounting plates and elbow)
00111476
2
Elbow, overflow, 1" (26mm) x 3/4 MPT
502465
Not shown
Elbow, clean out, drain, 3/8" (10mm) x 3/8 MPT
502466
3
Syrup
coil
00125864
4
QuickCARB, foam pack assembly
00127043
5
Foam pack assembly, 10 valve
00127068
Not shown
Foam pack assembly, 8 valve
00127076
6
Coil, carbonated water, 8 valve & 10 valve
00119560
7
Coil, water/carb, 8 valve & 10 valve
00123141
8
Manifold, carbonated water, 8 valve & 10 valve
00207540
9
Manifold, water 8 valve & 10 valve
00123141
10
Guide, ice bath, LH
00127084
Not shown
Guide, ice bath, RH
00127092
11
Tubing, vinyl, pump (order by foot – min 3 ft)
501966
Reference #
Description
Part #
1 Gate,
dispense
501955
2
Linkage
pin,
gate/solenoid
502096
3
Pin, quick release, 3" (77mm), gate and lever
501949
4
Chute,
ice
501952
5
Solenoid
501961
Not
shown
Boot,
solenoid
502098
6
Dispense mechanism assembly
501948
7
Spring, dispense mechanism (1 per side)
501950
Not shown
Chute, focus
502459
Not shown
Lever, dispense
501953
5
21
1
2
3
4
5
5
10
11
9
8
6
7
7
