Follett VU300 - Manual (Page 19)

1
2
8
10
3
5
4
6
9
11
12
13
14 countertop
section
4
Top View
lower ring
Top View
auger tube seal
Front View
auger tube
6

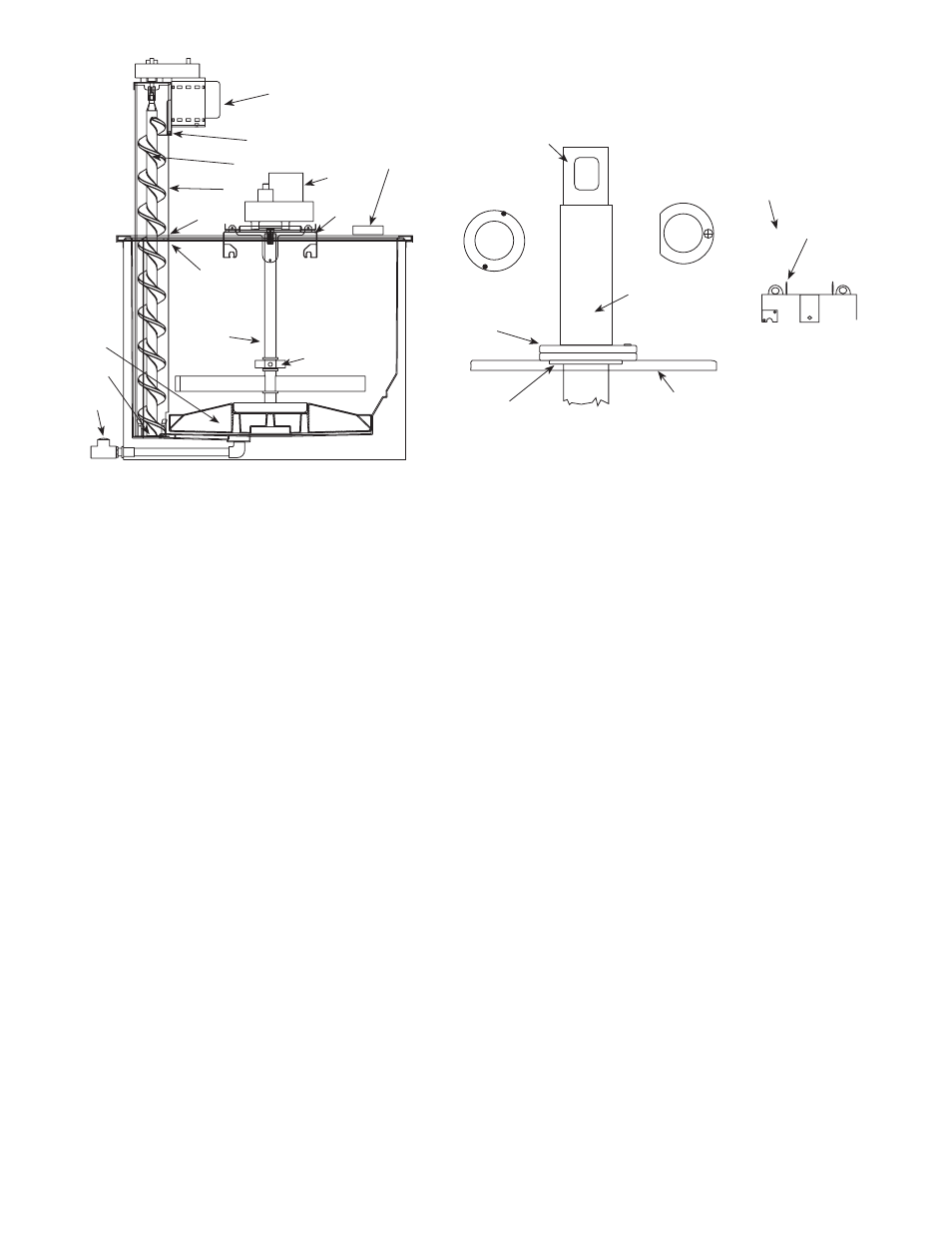

Reference # Description Part #
1 Motor, auger (includes capacitor), 100 RPM 00115212
2 Bracket, auger motor hold-down 502047
Not shown Bracket, auger motor stabilizer 00108498
Not shown Seal, shaft, auger motor 501977
3 Auger 00109249
4 Auger tube (includes insulation) 00126870
5 Insulation, auger tube 502099
6 Ring, auger tube, upper 501939
7 Ring, auger tube, lower 502155
8 Motor, wheel, Brother (includes capacitor) 502657
9 Bracket, wheel motor 501981
Not shown Capacitor, wheel motor, Brother 502658
Not shown Gasket, wheel motor bracket 501982
Not shown Pin, quick release, wheel motor (2 required) 502102
10 Drive shaft assembly 00126888
11 Agitator rod, fixed 502629
12 Wheel, dispense 501978
13 Bearing plate, bottom auger 00126896
Not shown Agitator rod, ramped 502628
Not shown Bracket, fixed agitator (2 used per unit) 501974
Not shown Thumbscrew, 10/32 x 3/4, fixed agitator bracket (2 required) 501259
14 Tee, drain 502059
15 Thermostat 500514
16 Bracket, ice hose and wheel motor 00126904
Not shown Leg 00137257
Not shown Coupling, auger top 00109306
Not shown Plug 2 lead, male, bin signal 502333
Not shown Socket 2 lead, female, bin signal 502334
