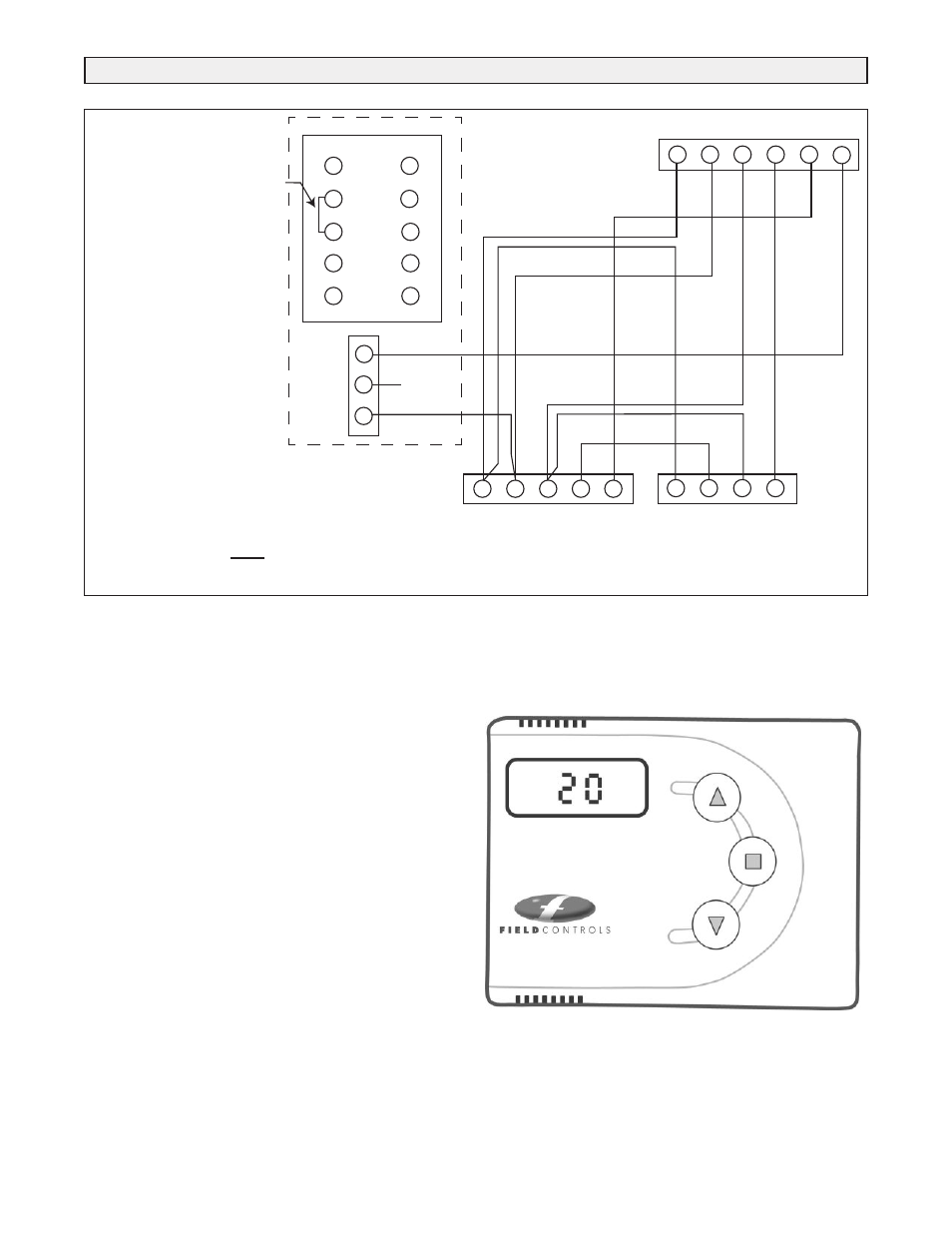

Installation of the Healthy Home System™ Control (HHSC)
1
2
3
4
5
6
7
8
9
10
LO
ON
R
Y
G
HI
C
NO
NC
BK
FACTORY-INSTALLED JUMPER
DO NOT REMOVE
LO
HI
24C
*
R
C
Wt
Gt
Gf
V
HHSC CONTROL
R
C
W
Y
G
R
Y
W
G
THERMOSTAT
FURNACE OR
HEAT PUMP
HRV/ERV WIRING TERMINALS
12V/24 VAC Field wiring, 20 AWG min. required
* Connect V Terminal on the HHSC Control to the Hi Terminal (instead of Lo) for a shorter ventilation period.
Setting up the HHSC Control
The duration of the ventilation rate is adjustable
on the Healthy Home System™ Control (HHSC).
Refer to the instructions that accompanied the
HHSC for setup information.
The Healthy Home System™ Control (HHSC)
