GAS COOKTOP INSTALLATION INSTRUCTIONS
(Models with Optional Electric Built-In Oven Combination)
4
* If no cooktop is installed directly over
the oven unit, 5” (12.7 cm) maximum
is allowed.
** 32" (81.3 cm) min. from top of cabinet
to top of runners must be maintained.
This cooktop may be in-
stalled over certain built-
in electric oven models.
G
F
E
Use ¾” (1.9 cm) plywood, installed on two
runners, flush with toe plate. Must be capable
of supporting 150 lbs (68 kg).
Cut an opening in wood base mini-
mum 9” x 9” (22.9 cm X 22.9 cm),
2” (5.1 cm) from left side filler
panel, to route armoured cable to
junction box.
4 ½” Max.*
(11.4 cm Max.*)
208/240 Volt grounded
junction box for built-in
oven.
Approx. 3”
(7.6 cm)
Side filler panels are necessary to isolate the
unit from adjoining cabinets. Panel height
should allow for installation of approved
cooktop models. See “Typical Gas Cooktop In-
stallation Over an Electric Built-in Oven Installed
Under the Counter” in this booklet.
32” Min.**
(81.3 cm Min.**)
36” Min.
(91.4 cm Min.)
All mounting hardware
must be used to secure
the built-in oven to the
cabinets. Refer to the
built-in oven installa-
tion instructions.

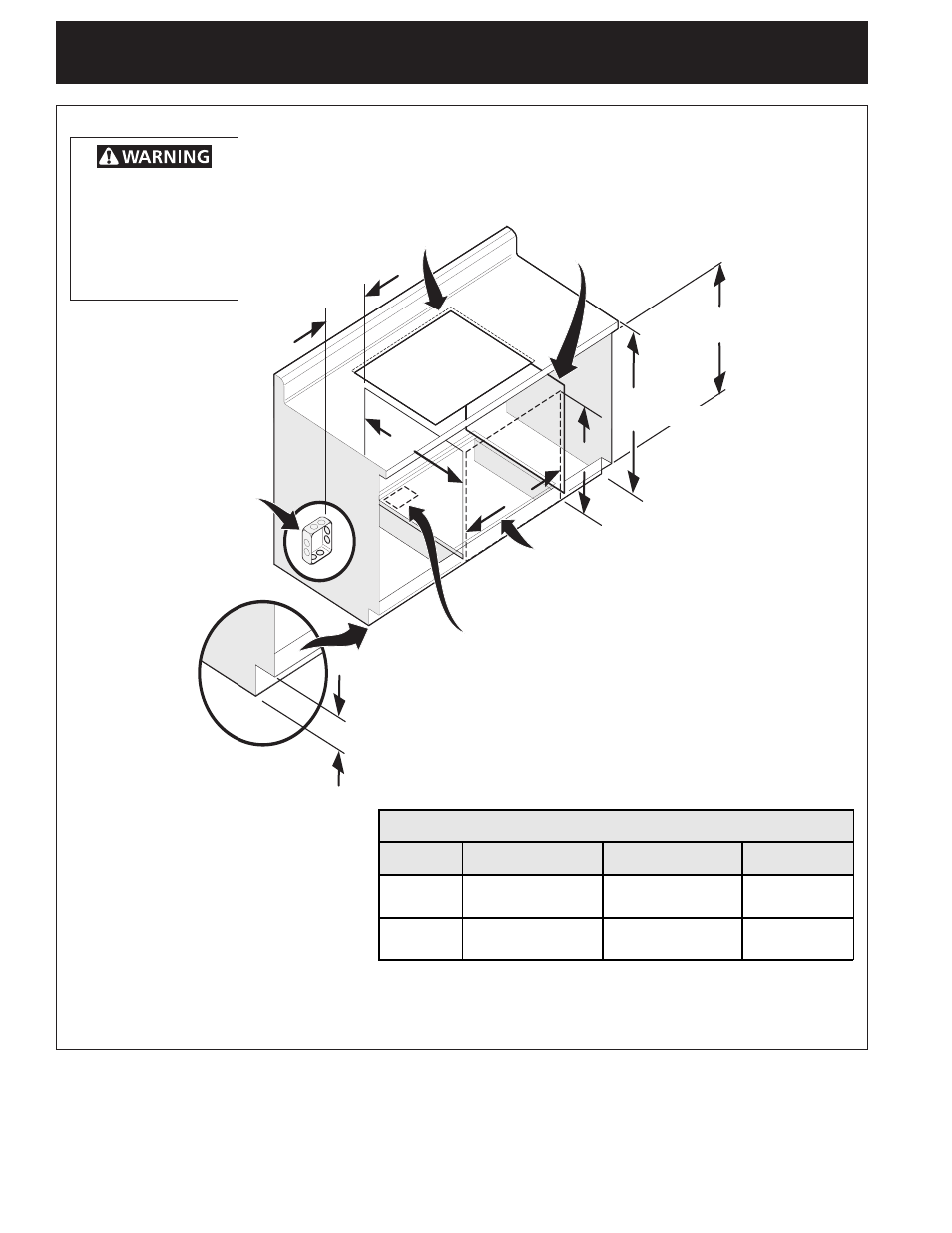

Figure 3 – TYPICAL UNDER COUNTER INSTALLATION OF AN ELECTRIC BUILT-IN OVEN
WITH COOKTOP MOUNTED ABOVE
CUTOUT DIMENSIONS
MODEL E. HEIGHT F. WIDTH G. DEPTH
27" (68.6 cm)
Wall Oven
28 1 / 8 " (71.4 cm) Min.
28 5 / 8 " (72.7 cm) Max.
24 7 / 8 " (63.2 cm) Min.
25 ¼" (64.1 cm) Max.
23 ½"(59.7 cm)
30" (76.2 cm)
Wall Oven
28 ¼" (71.8 cm) Min.
28 7 / 8 " (73.3 cm) Max.
28 ½" (72.4 cm) Min.
29" (73.7 cm) Max.
24" (61 cm)
