1
Chapter1
PREPARING THE SCANNER
1.1 Checking the Contents of the
Scanner Package
When you open the scanner package, make sure it contains all
the parts listed in the package contents list that is included in
the package box.
If any parts are missing or defective, contact the dealer you
purchased the scanner or an authorized Fujitsu scanner
service provider. Handle the scanner and accessories with
care.

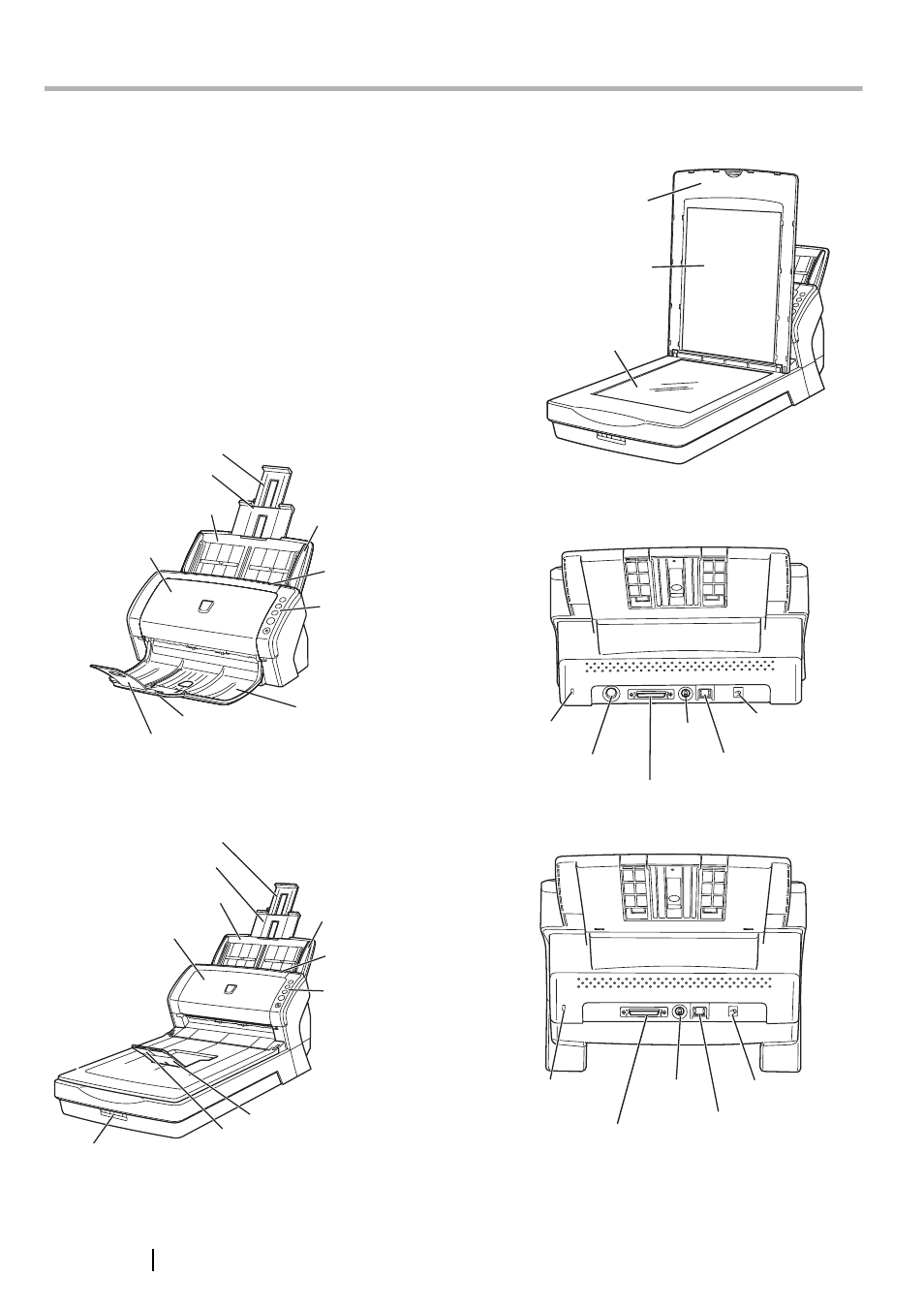

1.2 Names of Parts
This section describes the names of parts.
■ Front side
[fi-6140]
[fi-6240]
■ Inside
[fi-6240]
■ Rear side
[fi-6140]
[fi-6240]
ADF paper chute
Automatic document
feeder (ADF)
Side guide
ADF open lever
Operator panel
Stacker
Paper chute extension 2
Paper chute extension 1
Stacker extension 2
Stacker extension 1
ADF paper chute
Side guide
Operator panel
Stacker
Flatbed
ADF open lever
Transport lock switch
Paper chute extension 1
Paper chute extension 2
Stacker extension
Automatic Document
Feeder (ADF)
Document cover
Document holding pad
Document bed
Security
Slot
EXT connector
(For Imprinter
connection)
SCSI connector
SCSI ID
switch
USB connector
DC inlet
DC inlet
USB connector
SCSI ID
switch
SCSI connector
Security
Slot
