8-4

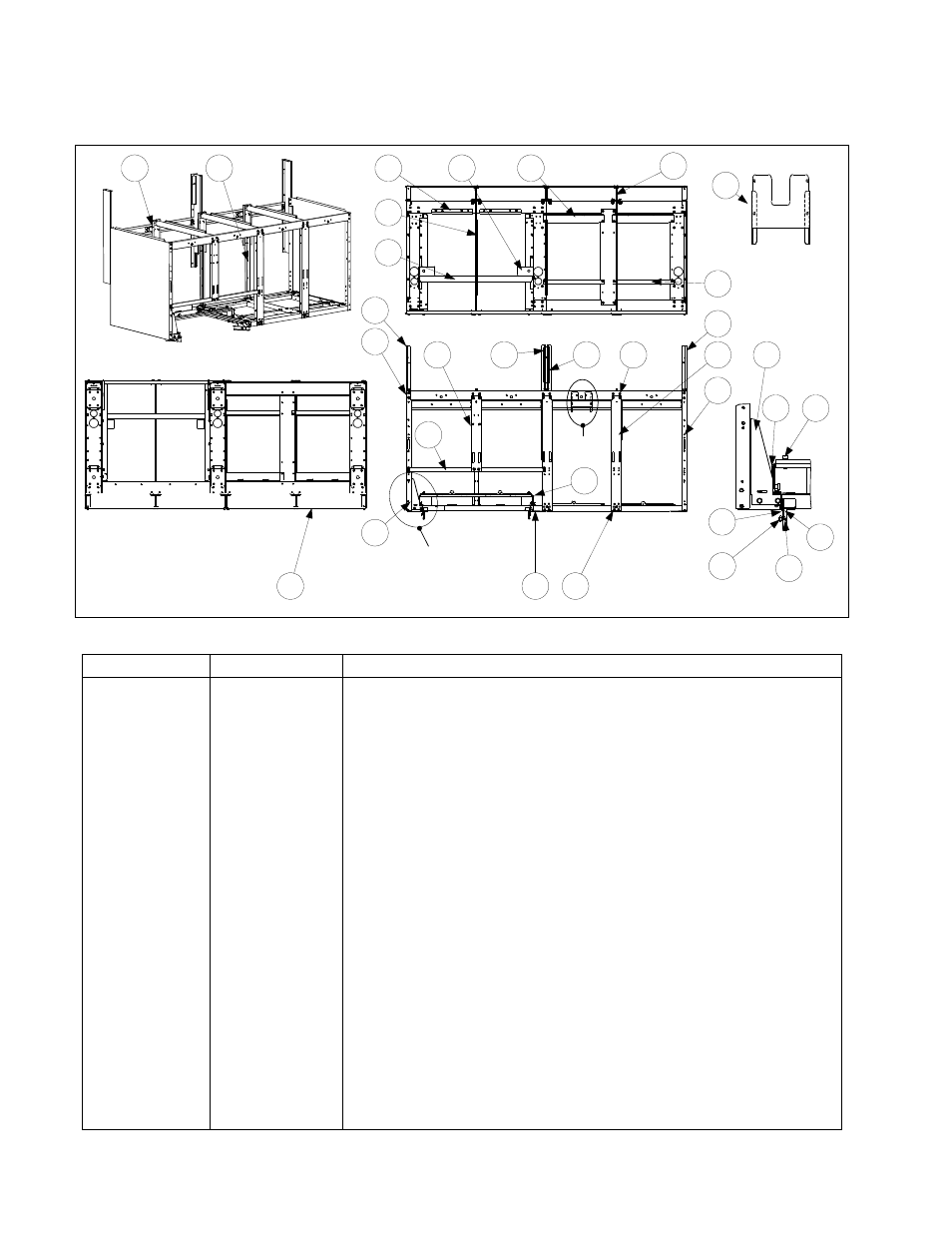

8.2.2 MH/BIH214, 314, 414, 514 Cabinet Assemblies
1
2
3
4 5
6 7 9
8
10
11
12
13
14
15
19
20
16 17
18
21
22
23
24
25
26 27 28
29
30
See Detail A
Detail A
31
See
Detail B
Detail B
32
ITEM PART # COMPONENT
1 200-0076 Divider, Cabinet, Common Electric
2 200-0084 Brace, Rear Horizontal, 2 Battery (Quad and Double)
* 200-0085 Brace, Rear Horizontal, 3 Battery (Triple)
3 200-0091 Rail, Top- Quad Cabinet
* 200-0072 Rail, Top- Triple Cabinet
* 200-0081SP Rail, Top- Double Cabinet
4 200-0092 Support, Rear, Common Electric
5 200-0126 Brace, Rear Support
6 200-0138 Door Post, Common Electric (Triple, Quad w/filter; Double,
Triple, Quad N/F)
7 201-0093 Enclosure, Rear Upright with Hole (Quad Only)
8 201-0137 Upright, Rear Enclosure, Common Electric
9 202-0093 Enclosure, Rear Upright with Hole (Quad Only)
10 202-0137 Upright, Rear Enclosure, Common Electric
11 806-7005SP Base, Filter Assembly, Common Electric- Quad
* 806-6513SP Base, Filter Assembly, Common Electric- Triple
* 806-6511SP Base, Filter Assembly, Common Electric- Double
* 806-6997SP Base Assembly, Common Electric N/F- Double
* 806-6999SP Base Assembly, Common Electric N/F- Triple
* 806-7001SP Base Assembly, Common Electric N/F- Quad
12 826-1376 Nut, 10-32 (Qty: 10)
