Fisher-Price WILD THING 74180 - Manual (Page 9)

9
1

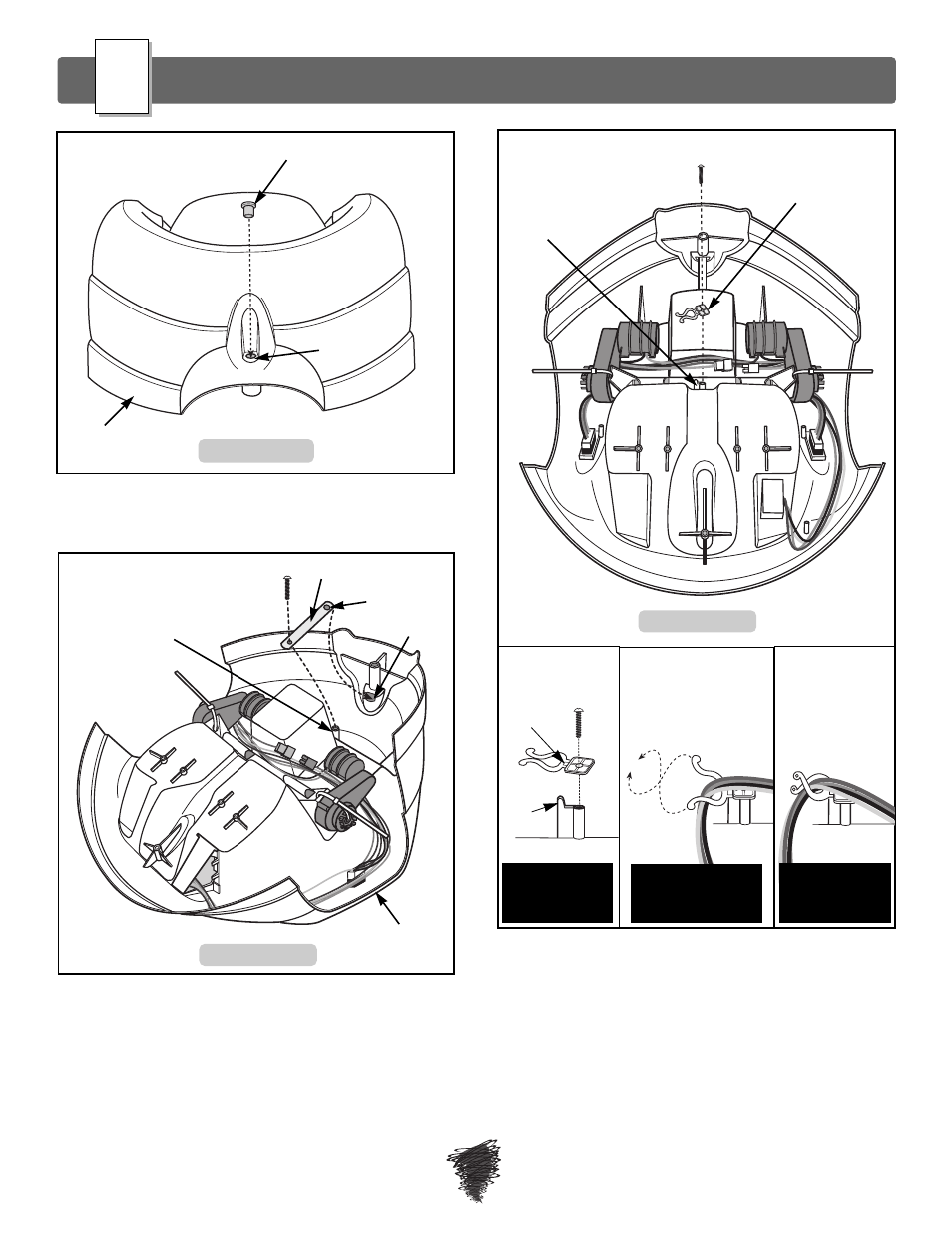

Assembly
• Position the vehicle body upright.
• Fit and hold a round bushing into the hole in the rear
of the vehicle body.
2
F
Round Bushing
Hole
Vehicle
Body
Metal Bracket
Large Hole
Slot
Screw
Peg
Vehicle
Body
• Fit a #8 x 1" screw through a wire retainer and into the
screw peg at the center of the vehicle body. The
square opening in the wire retainer should fit onto the
tab on the screw peg (3a).
• Tighten the screw with a Phillips screwdriver. Do not
over-tighten.
• Place the wires between the wire retainer arms (3b).
• Twist the ends of the wire retainer arms together to
secure the wires against the bottom of the vehicle
body (3c).
Screw Peg
Wire Retainer
• Position the vehicle body upside down.
• Slide the end of the metal bracket with the large hole
through the slot in the rear of the vehicle body to cover
and hold the round bushing.
• Align the small hole at the other end of the bracket
with the screw peg on the vehicle body.
• Insert a #12 x 1 1 / 2 " screw through the small hole in the
bracket and into the screw peg.
• Tighten the screw with a Phillips screwdriver. Do not
over-tighten.
Rear View
Bottom View
Bottom View
3
3b 3c
Wire Retainer
Correctly
Twisted
Attaching
Wire Retainer
to Screw Peg
Twisting
Wire Retainer
3a
Tab
Square
Opening
