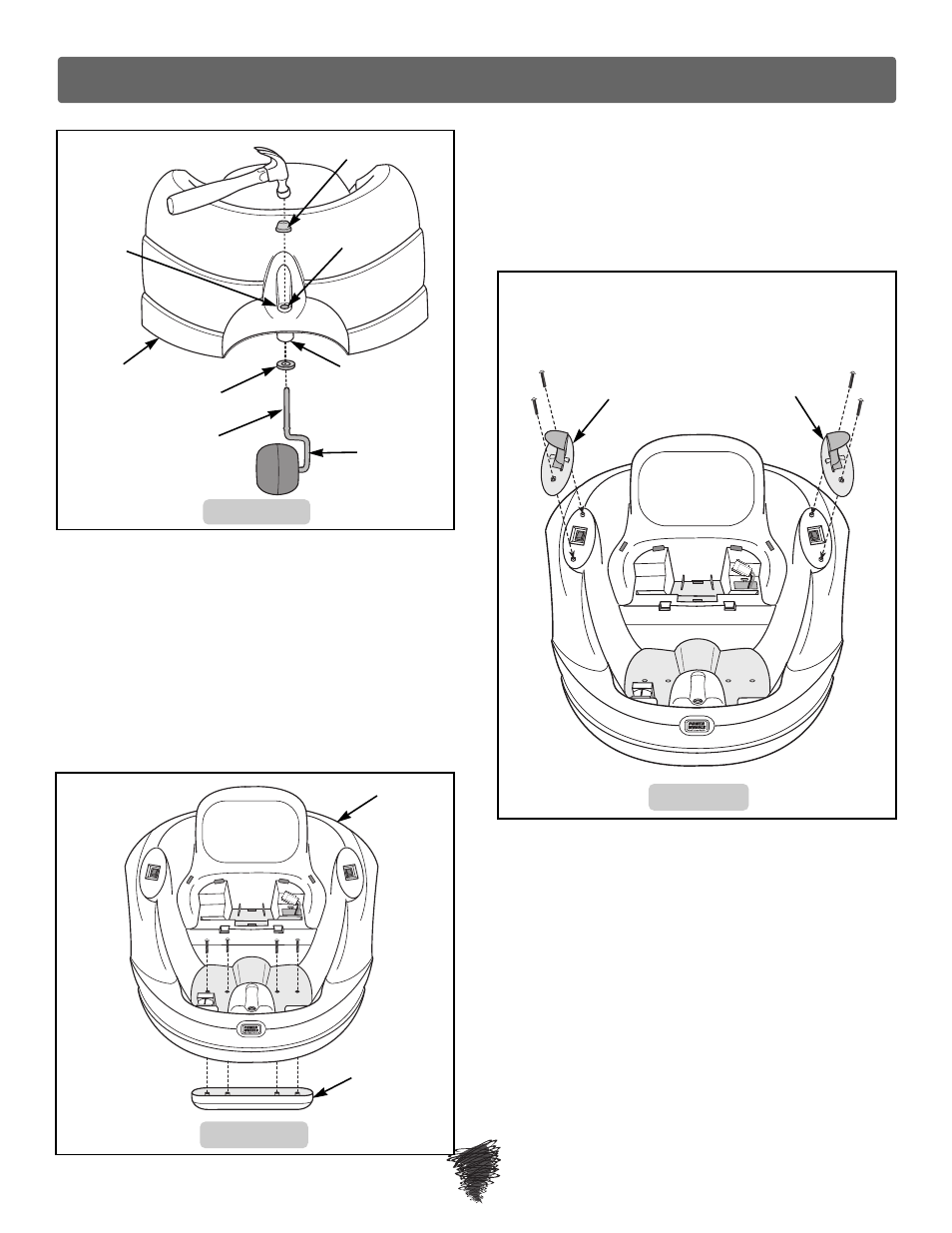

• Face the front of the vehicle body.
Assembly
13
• Position the vehicle body upright.
• Fit a 5 /
16
" (small diameter) washer onto the long leg of
the pivot axle.
• Face the rear of the vehicle body.
• Insert the pivot axle leg up through the hole in the
underside of the vehicle body and out through the hole
in the metal bracket at the rear of the vehicle body.
Note: You may need to flex the vehicle body to align the
pivot axle with the hole in the metal bracket.
• Fit a .354 (small diameter) cap nut onto the end of
the pivot axle and tap the cap nut with a hammer to
secure it.
12
Pivot Wheel
Assembly
Pivot Axle
(Long Leg)
.354 Cap Nut
5 /
16
" Washer
Metal
Bracket
Hole
Hole
Skid
Guard
Rear View
Front View
TM
14
Right
Shifter
Left
Shifter
Vehicle
Body
Vehicle
Body
Front View
• Using safety scissors, separate the right and left
shifters from the plastic connector. Dispose of the
plastic connector properly.
• Identify the right and left shifters. The right shifter is
marked R on the underside of the shifter plate; the left
shifter is marked L.
• Fit the right shifter (R) onto the right side of the vehicle
body, marked R.
• Insert two #8 x 1" screws through the shifter plate and
into the vehicle body.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
• Repeat this procedure to assemble the left shifter (L) to
the left side of the vehicle body, marked L.
• Fit the skid guard under the vehicle body with the
pegs on the skid guard aligned with the holes
in the vehicle body floor.
• Insert four #8 x 1" screws through the vehicle body
floor and into the skid guard.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
