2. VIDEO PLOTTER
2-2

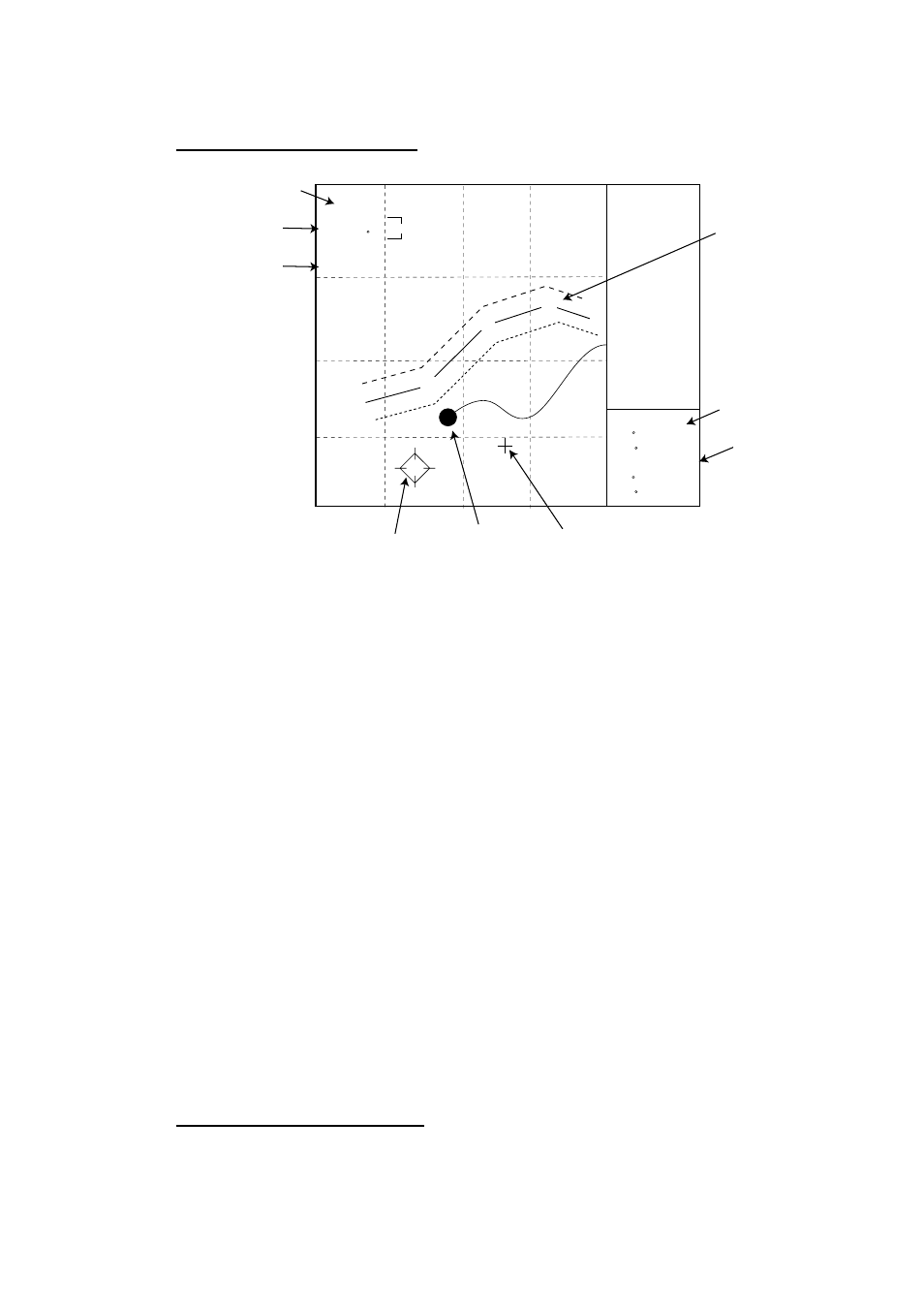

Sample video plotter display
12/2
3.458 NM
179.9 R
TM
+
W10
W11
W12
Waypoint
Own ship mark
Origin mark
OWN SHIP
35 20.370 N
141 18.370 E
+CURSOR PSN
35 20.360 N
141 18.770 E
Own ship's position
Cursor position
Range
Range/bearing
to cursor
Motion mode
Cursor
Note: Grid line is not appeared on G-type.
2.1.2 Display modes
The RP-25 has five presentation modes.
• NORTH UP
• COURSE UP
• HEAD UP
• HEAD UP TB
• NORTH UP
• NORTH UP TM
Press the [MODE] key to select the mode.
Note 1: On HEAD UP and HEAD UP TB mode, the chart data is not appeared
though target tracks.
Note 2: On HEAD UP and HEAD UP TB mode, the screen may be seemed
flashing because these mode changes the screen when the gyro data
has 1º variation.
True motion automatic return
On the radar/video plotter display and the true motion mode, the own ship mark
returns to the center of the screen when own ship reaches at the threes quarter
position of the selected range.
