iv

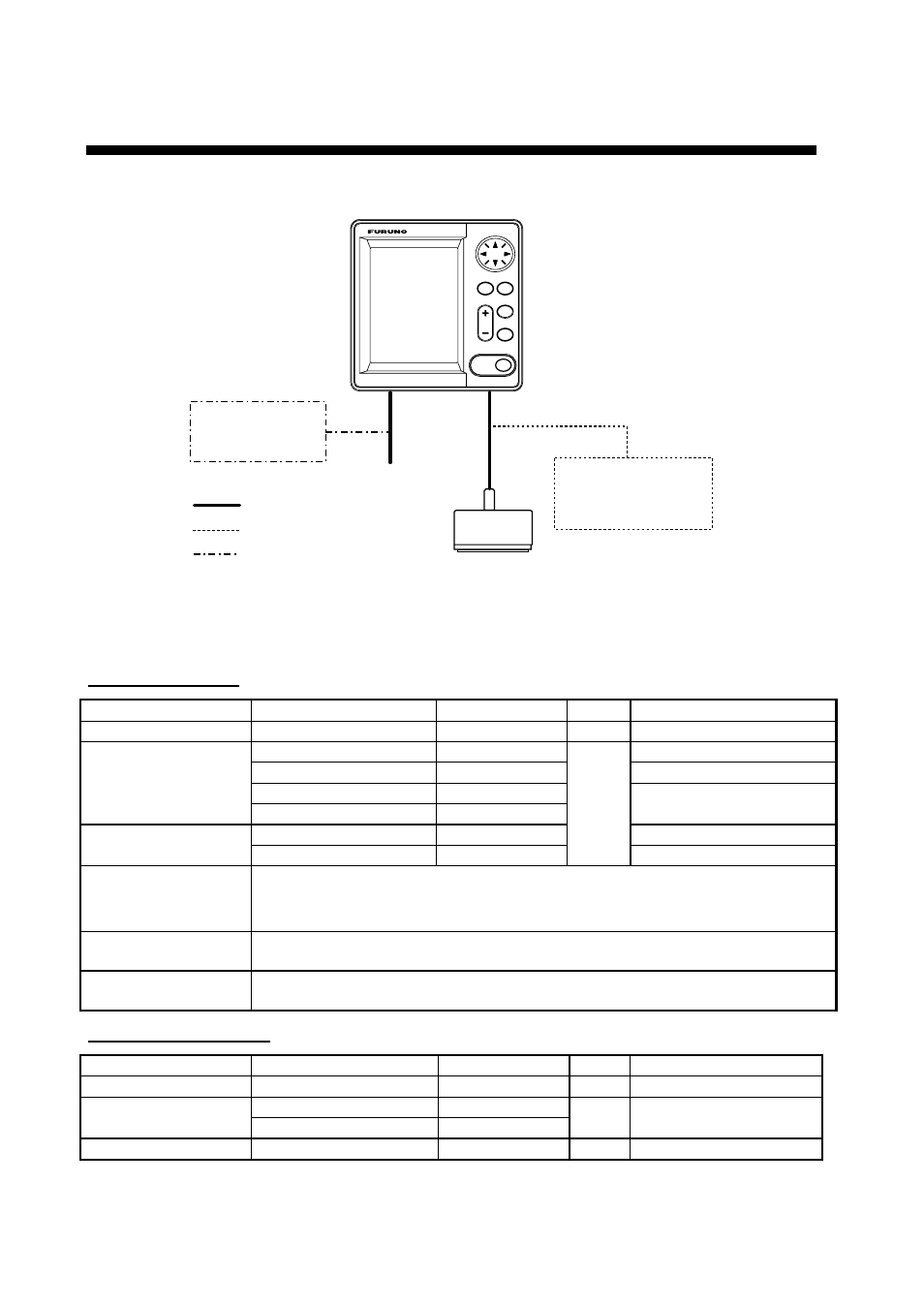

SYSTEM OVERVIEW
System configuration
Power supply
12 VDC
DISPLAY UNIT
LS-4100
GPS Navigator
or
Wind Indicator
Transducer
Water temperature/
Speed sensor
ST-02MSB/ST-02PSB
520-5PSD/520-5MSD/520-5PWD/
525-5PWD/525ST-MSD/525ST-PWD
: Standard
: Option
: User supply
Note: Contact your
dealer for connection of
other equipment.
POWER
BRILL
MARK
GAIN
RANGE
ESC
MENU MODE
LS-4100
ECHO SOUNDER
Equipment lists
Standard supply
Name Type Code No. Qty Remarks
Display Unit LS-4100 — 1
520-5PSD 000-015-204 Thru-hull mount
520-5MSD 000-015-212 Thru-hull mount
520-5PWD 000-015-126
Transducer
525-5PWD 000-146-966
Transom mount
525ST-MSD 000-015-263 Thru-hull mount Triducer (transducer
plus spd/temp sensor)
525ST-PWD 000-015-261
1
Transom mount
Installation Materials
(CP02-07401)
• Tapping screw (4 pcs., 5 x 20 SUS304, 000-802-081)
• Washer head screw B (4 pcs., M4 x 20 SUS304, 000-804-742)
• Cable assy. (1 pc., MJ-A7SPF0005-020, 000-139-384, for power and data)
Spare Parts
(SP02-04801)
Fuse (2 pc., FGMB 1A 125V, Code No. 000-114-805)
Template
C22-00301 (000-146-981, for flush mount),
C22-00302 (000-146-982, for bulkhead)
Optional equipment
Name Type Code No. Qty Remarks
Conversion Cable 02S4147 000-141-082 1 For spd/temp sensor
ST-02MSB 000-137-986 Water Temperature &
Speed Sensor
ST-02PSB 000-137-987
Select
one
Thru-hull type
Inner Hull Kit S 22S0191 000-802-598 1
