Follett 00119628R01 - Manual (Page 18)

Replacement parts
Reference # Description Part #
1 Lid, with graphics, single-sided 00126805
2 Graphics, “Follett” 00116780
3 Access panel, tower, single-sided 00108407
Not shown Cover, ice opening (below drain pan) 00143685
Not shown Drain pan assembly and grille 00126862
4 Drain pan, plastic 00108829
Not shown Switch, drain pan safety 502475
5 Grille, drain pan 00108845
6 Chute cover, dispense, push-button with switch 502440
Not shown Chute cover, dispense, lever 502439
7 Splash guard 00121517
8 Thumbscrew, 10/32-1/2, splash guard 501100
Not shown Switch, dispense, PB 502441
Not shown Switch, dispense lever (includes boot and spacer) 501714
Not shown Boot, dispense switch button, lever 501841
Not shown Access cover, wheel motor (behind splash guard) 00114546
Not shown Fitting, drain, drain pan 00143677
Not shown Lip kit (plastic strip bordering ice bin opening and adhesive) 502285
Not shown Insulation, transport tube (sold by the foot) 501176
Not shown Tube, ice transport, 10 ft 502522
Not shown Tube, ice transport, 20 ft 502523
Not shown Plug 2 lead, male 502333
Not shown Plug 2 lead, female 502334
Not shown Brackets, drain pan locator 00143693

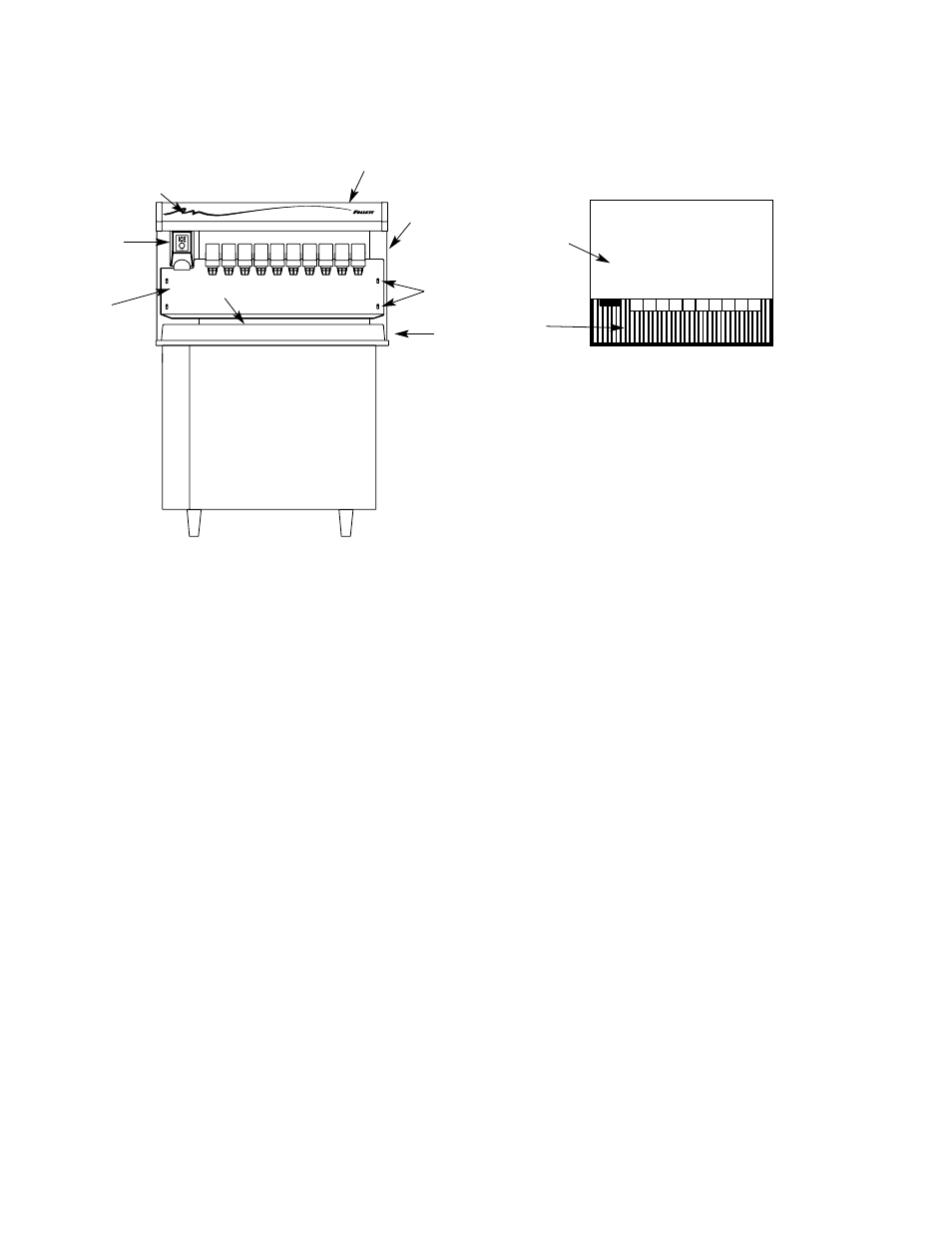

6
1
Plan View
18
2
3
6
5
7
Single-sided Dispenser
4
1
8
