The following calculations assume the top of the upper panel is
aligned with the top of the adjacent cabinetry. The fi nal
panel/cabinetry alignment is achieved by adjusting the feet:

WIDTH OF ALL PANELS

Measure A (the width between adjacent door/drawer fronts)
and write it in the fi rst box below, then complete the equation.

HEIGHT OF THE LOWER PANEL

Measure C (door/drawer height (or equivalent)) and write it in the
fi rst box below, then complete the equation.

HEIGHT OF THE TOEKICK PANEL

Measure D (height from the top of adjacent cabinet door fronts to the fl oor)
and write it in the fi rst box below, then complete the equation.

HEIGHT OF THE UPPER PANEL

min. ½

”(12mm)

clearance to floor

min. 1⁄16”(2mm)

min. 1⁄16”(2mm)

min. 1⁄16”(2mm)

min. 1⁄16”(2mm)

min. 5⁄16”(8mm)
ventilation gap

2 3⁄16” (55 mm)

17” (432 mm)

2-3 5⁄16”

(50-84 mm)

1 3⁄16-2 ”

(30-50 mm)

R ½

” (12.7 mm)

WIDTH OF ALL PANELS

HEIGHT OF
UPPER PANEL

HEIGHT OF
LOWER PANEL

HEIGHT OF
TOEKICK PANEL

A

D

C

J

J

A

C

D

B

B

clearance to adjacent

cabinet front

(min. 1⁄16” (2 mm))

height of

upper panel

ventilation gap

(min. 5⁄16” (8 mm))

height from top

of product to

toekick panel

mounting point

clearance to

floor

(min. ½ ” (12 mm))

upper panel extension

(0 “/mm recommended)

upper panel

extension

(0”/ mm recommended)

(min 28 ¼

” (717 mm) + B))

minimum

height

WIDTH OF PANEL

(min. 23 7⁄16” (596 mm))

HEIGHT OF LOWER PANEL

(min. 12 ¼

” (311 mm)

HEIGHT OF TOEKICK PANEL

(min. 2 ¾

” (70 mm))

HEIGHT OF UPPER PANEL

-

- 28 15⁄16”

(735 mm)

+

-

-

-

15 11⁄16”

(398 mm)

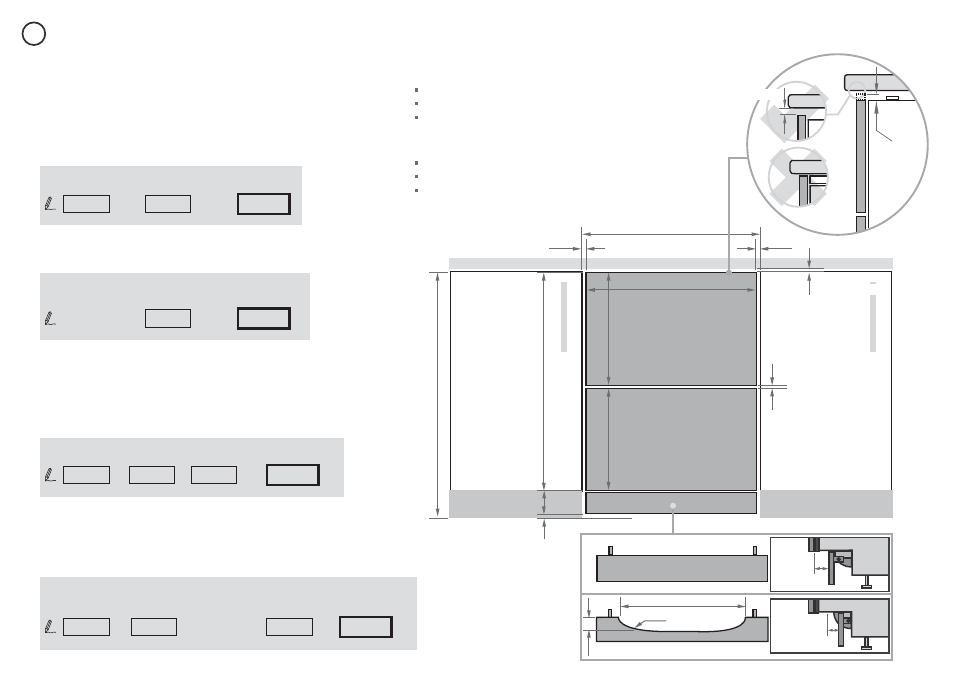

STANDARD HEIGHT INTEGRATED MODELS ONLY - CUSTOM PANEL CALCULATIONS

7a

Note: The ‘upper panel extension’ B allows for the top of the upper
panel to extend above the chassis where required.

If the toekick recess (dimension
J under ‘Product dimensions’) is
between 2” and 3 5⁄16” (50 and 84
mm) deep, the toekick panel will
need to be modifi ed for fi tting
around the underside of the
product.
See illustration for details on the
shape of the cutout required.

-

2

x

=

=

=

=

FRONT PANEL SPECIFICATIONS

5⁄8 - 13⁄16” (16-20 mm) panel thickness

Adequately sealed to withstand moisture (122

O

F/ 50

O

C @ 80% RH)

Maximum weight of each panel: 20 lb (9 kg)

TOEKICK PANEL SPECIFICATIONS

min. 3⁄8” (9 mm) panel thickness if using supplied screws

Adequately sealed to withstand moisture (122

O

F/ 50

O

C @ 80% RH)

You may choose to affix your custom toekick panel either by
screwing it to the supplied mounting bracket or gluing it on the
supplied prefinished toekick panel.

Side

Side
