18

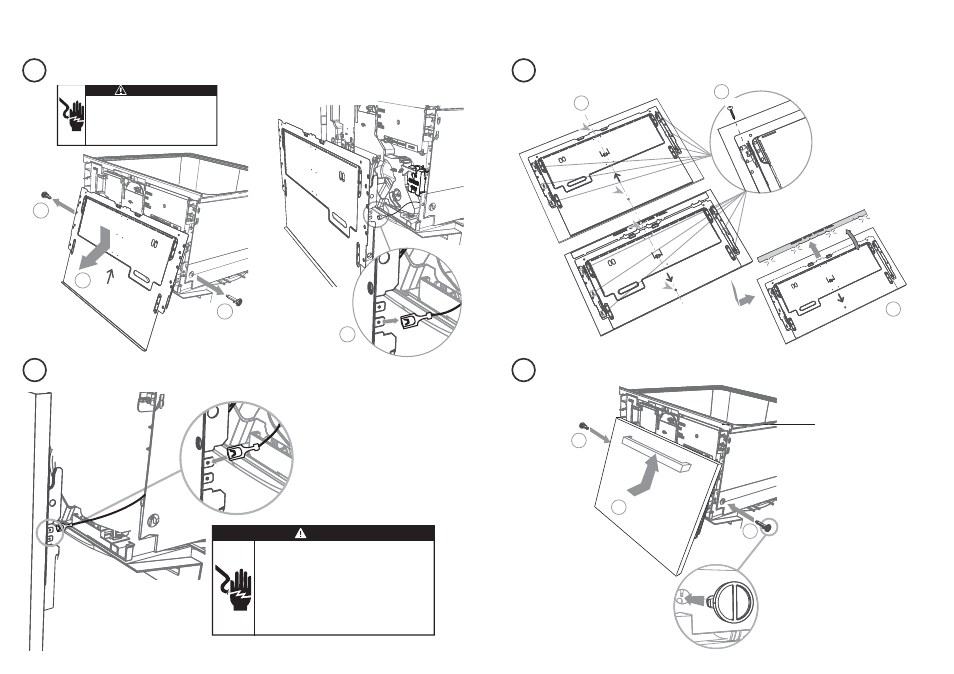

INTEGRATED MODELS ONLY - INSTALLING THE FRONT PANELS

REMOVE BRACKETS FROM PRODUCT

ATTACH PANELS TO PRODUCT

GROUND THE PANELS

ATTACH PANELS TO PANEL BRACKETS

16

19

18

17

There must be at least

3 screws used each side

2

2

1

1

2

3

16 mm x6

Important!

Ensure the rubber seal
between the drawer
and panels is kept in
place.

Important!

Break off and discard
the tab at the top
of the Lower Panel
Bracket.

5⁄8” (16mm) x6

Align bottom of panels

with bottom of brackets

When refitting the

door pins,

ensure they are

orientated as shown.

3

1

1

2

Electrical Shock Hazard

Before continuing, ensure that the product is
disconnected from the power supply.

Failure to follow this warning may result in
electrical shock, injury or fire.

WARNING!

Repeat for the other drawer

WARNING!

To ground (earth) the panel bracket, connect

the ground (earth) wire from the product to

one of the tabs. Any custom metal component

(e.g. handle) that extends past the rubber seal

must be grounded (earthed) too.

Failure to follow these warnings may result in
electrical shock, injury or fi re.

Electrical Shock Hazard

Repeat for the other drawer
