INTEGRATED MODELS ONLY - INSTALLING THE FRONT PANELS

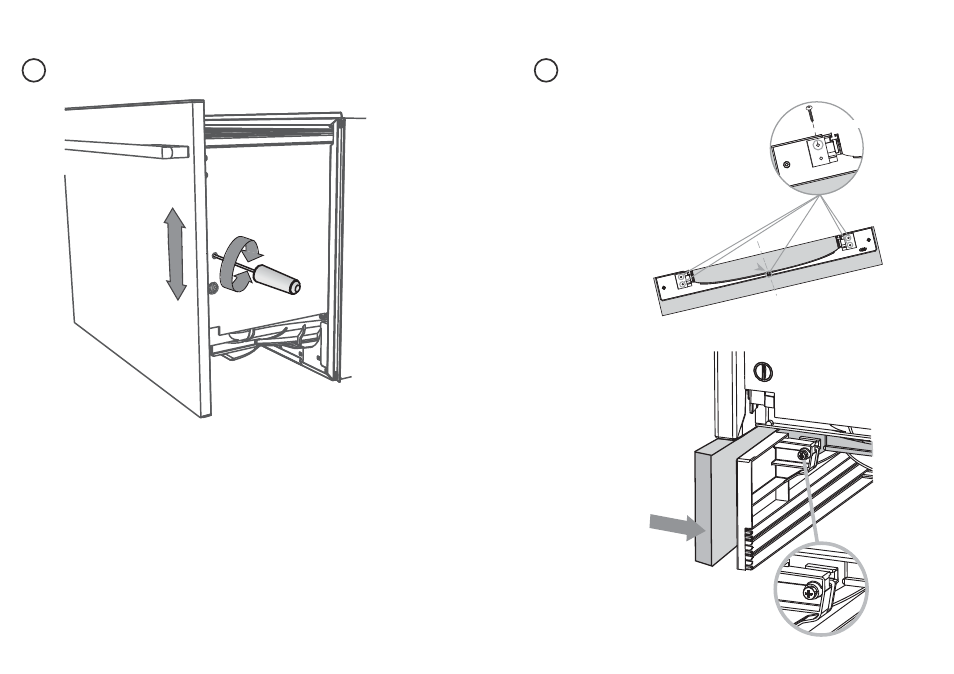

ADJUST PANEL HEIGHT TO ALIGN THE CABINETRY GAPS

FITTING A CUSTOM TOEKICK PANEL

20

21

You can optionally glue your

custom toekick panel onto the

supplied panel

With the front panels fitted, insert an appropriately
sized Philips screwdriver into the hole above the door
pin and rotate the panels up or down to align the gaps
in your cabinetry.

Repeat on the other side if necessary.

Each panel has a maximum travel of 1⁄16” (2 mm) up or
down.

Important!

Ensure that you maintain a minimum of 5⁄16” (8 mm)
ventilation gap between the upper and lower panels.

+ or - 1⁄16” (2 mm)

16 mm x5

5⁄8” (16mm) x5
