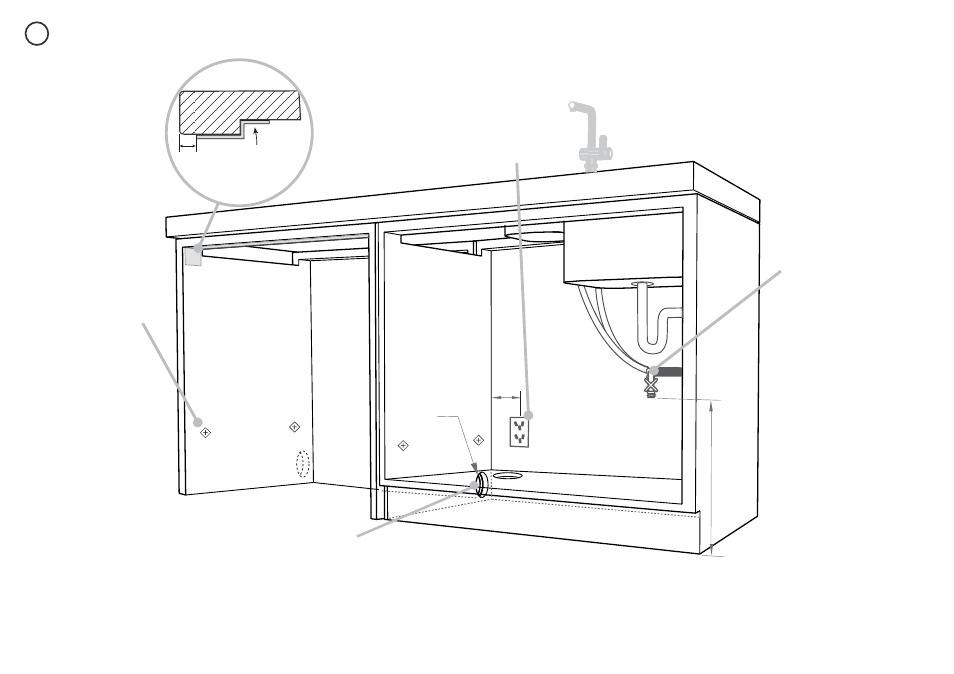

CAVITY PREPARATION

Water Connection

Recommended HOT
(Maximum 140°F/60°C).

Supplied hose to
suit 3⁄8” (9 mm) male
compression fitting.

Kosher requirements

Drains will need to be
separated to satisfy
kosher requirements.
We suggest you confirm
acceptability with your
local rabbi in respect to
kosher installations.

Water Pressure

Water softener models
Max. 1 MPa (145 psi)
Min. 0.1 MPa (14.5 psi)

Models without water softener
Max. 1 MPa (145 psi)
Min. 0.03 MPa (4.3 psi)

Important!

The power outlet must be
located in a cabinet adjacent
to the dishwasher cavity.

110-120 VAC max. 15 A

ø

max. 1½

” (38 mm)

min. 7 7⁄8”

(200 mm)

Moisture

protection

tape must

be applied.

Services hole
Can be located either side of dishwasher, preferably
at the bottom of the cavity, as shown. If adequate
clearance, services hole can be made higher to clear
toekick space. If hole is higher, ensure drain hose(s)
are routed straight into the waste connection.

- If the hole is through wood, make sure its edges
are smooth and rounded.
- If the hole is through metal, ensure you fi t the
supplied Edge Protector to prevent damage to the
power cord.

These marks indicate

formed bracket screw

locations, if securing

by drawer removal.

3⁄8” (10mm)

COUNTERTOP

If there is no side

partition, you

can construct

timber bracing

as something to

secure into.

max. 17 11⁄16”
(450 mm)
