7.3 Replacing the Pick Roller
ScanSnap fi 5110EOX Operator's Guide 109
Replacing Consumables
7

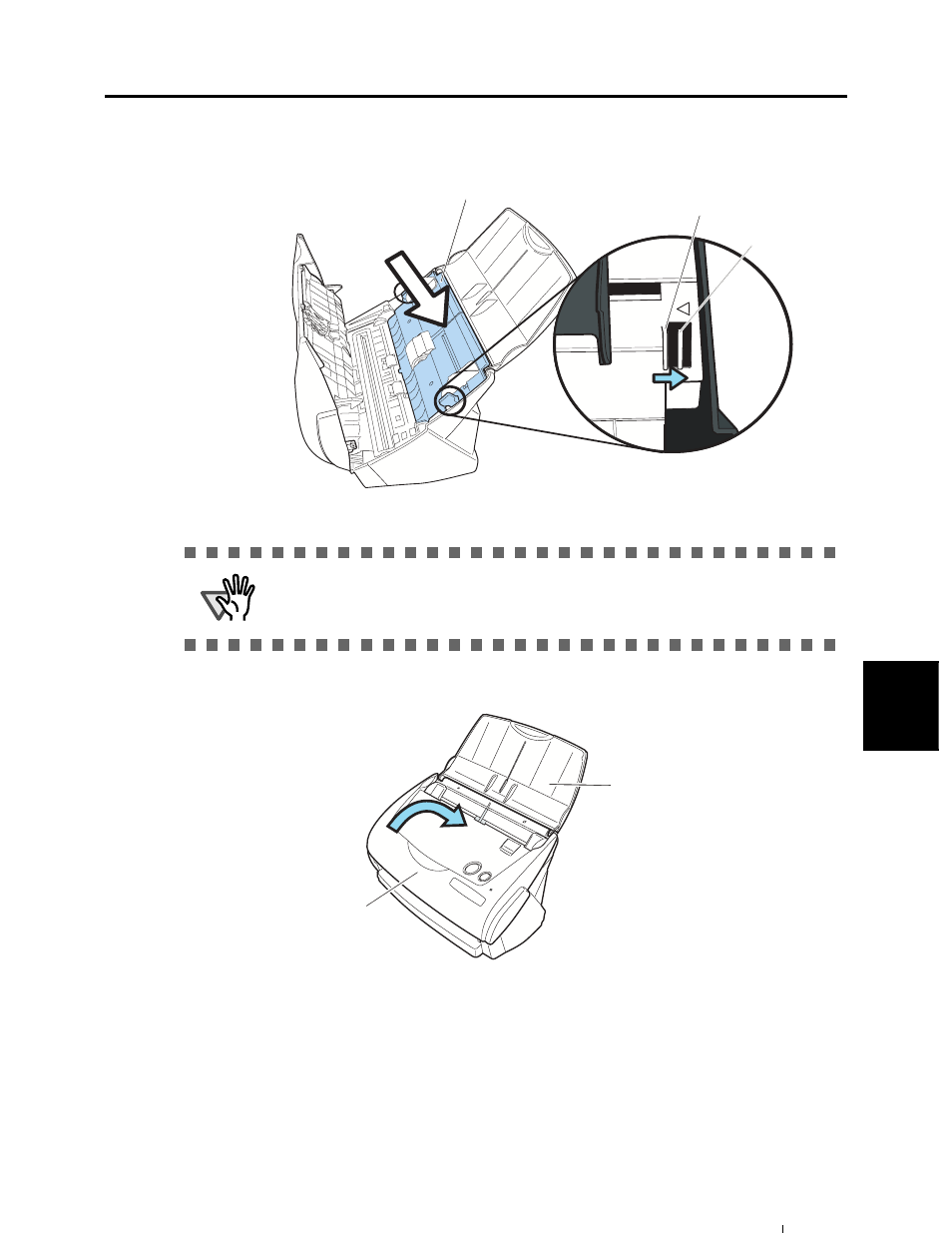

10. Attach the sheet guide to the scanner.
Pinch the knobs on the sheet guide and attach it to the scanner.
⇒
The sheet guide makes a clicking sound when the knobs fix into position.
11. Close the ADF.
⇒
You should hear the ADF click when it returns to its original position.
12. Turn on the scanner.
ATTENTION
Make sure that the sheet guide is completely attached. Otherwise, document
jams or other feeding errors may occur.
Handle
Sheet guide
Craw
Paper chute cover
ADF cover
