3

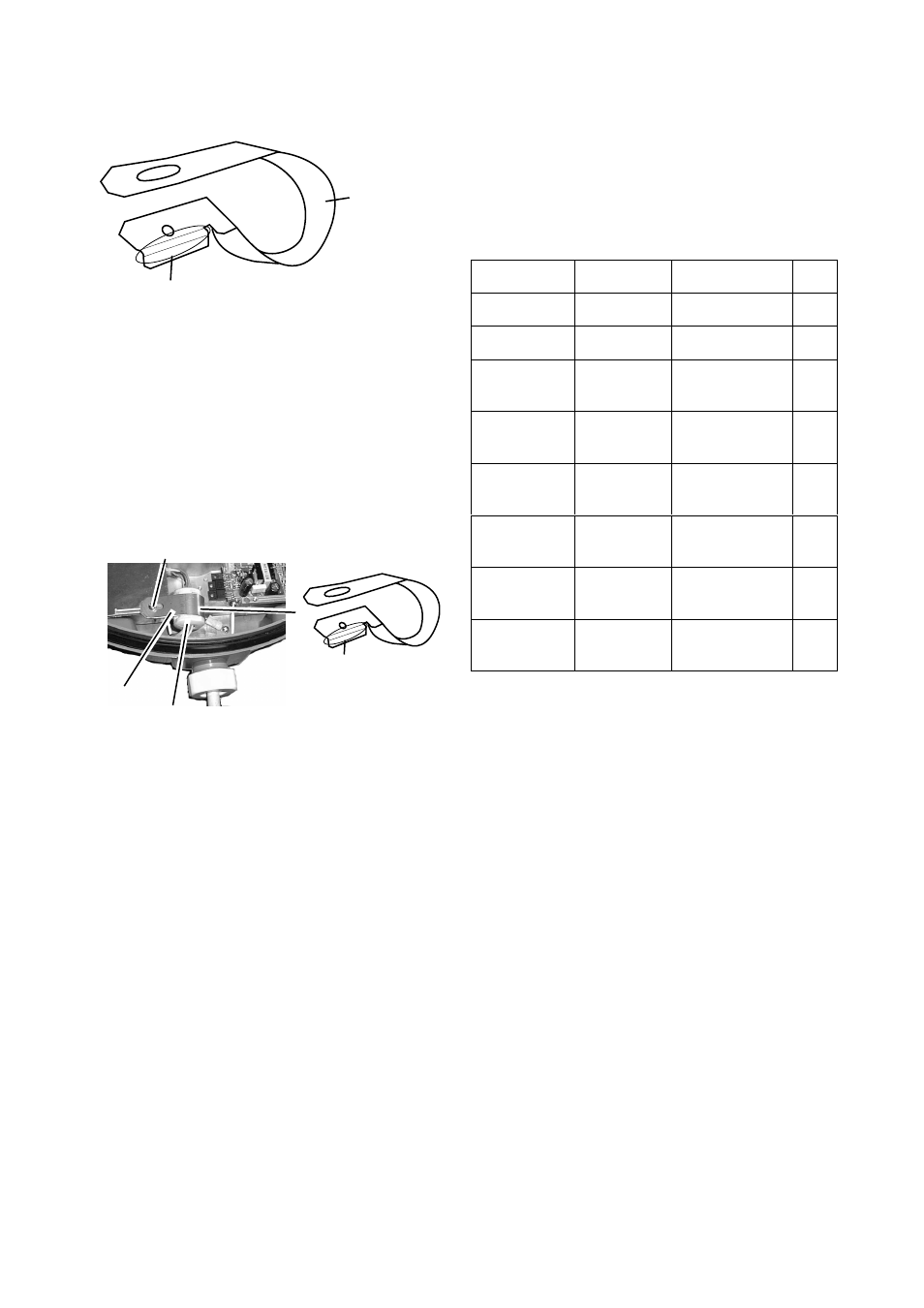

9. Attach EMI Core (supplied) to antenna cable.
Set the fixing band to the EMI core.
This bend should be
facing toward you.
Fixing band
Figure 9 Fixing band
10. Referring to Figure 8, connect the 9-pin
connector of the antenna cable to J801.
11. Refasten the shield plate with 10 screws. Be
sure not to pinch cable from the rotation
detector with the shield plate. See “Caution”
in Figure 5 for details.
12. Fasten the Fixing band with Screw
(supplied).
Screw(M4X15)
EMI Core
Fixing
Band
Align bend with
corner of chassis.
Figure 10 How to fix the EMI Core
13. Confirm that the rubber gasket is properly
positioned and then tighten the fixing screws
for the cover. Refer to Figure 7 for
positioning of rubber gasket.
Mounting using the optional
mounting bracket
A mounting bracket for fastening the antenna
unit to a mast on a sailboat is optionally
available (Type OP03-93, Code No.008-445-
080).
Name Type Code No. Qty
Hex. bolt M4X12 000-804-725 4
Hex. bolt M8X20 000-805-707 8
Mounting
plate 03-018-
9001-0 100-206-740 1
Support
plate (1) 03-018-
9005-0 100-206-780 1
Support
plate (2) 03-018-
9006-0 100-206-790 1
Bracket (1) 03-028-
9101-0 100-206-810 1
Bracket (2) 03-028-
9102-0 100-206-820 1
Fixing plate 03-028-
9103-0 100-206-830 2
