Figure 17 external buzzer, Figure 18 display unit, rear view – Furuno 1622 User Manual
Page 14
8
External buzzer
Access J6 on the DU Board as shown in Figure
16. Plug in the connector of the external buzzer
at J6. Seal the hole with sealing compound. Fix
the buzzer by two tapping screws.
External buzzer
Type: OP03-136
Code No.: 000-086-443
60 mm
50 mm
2-
φ
3.5

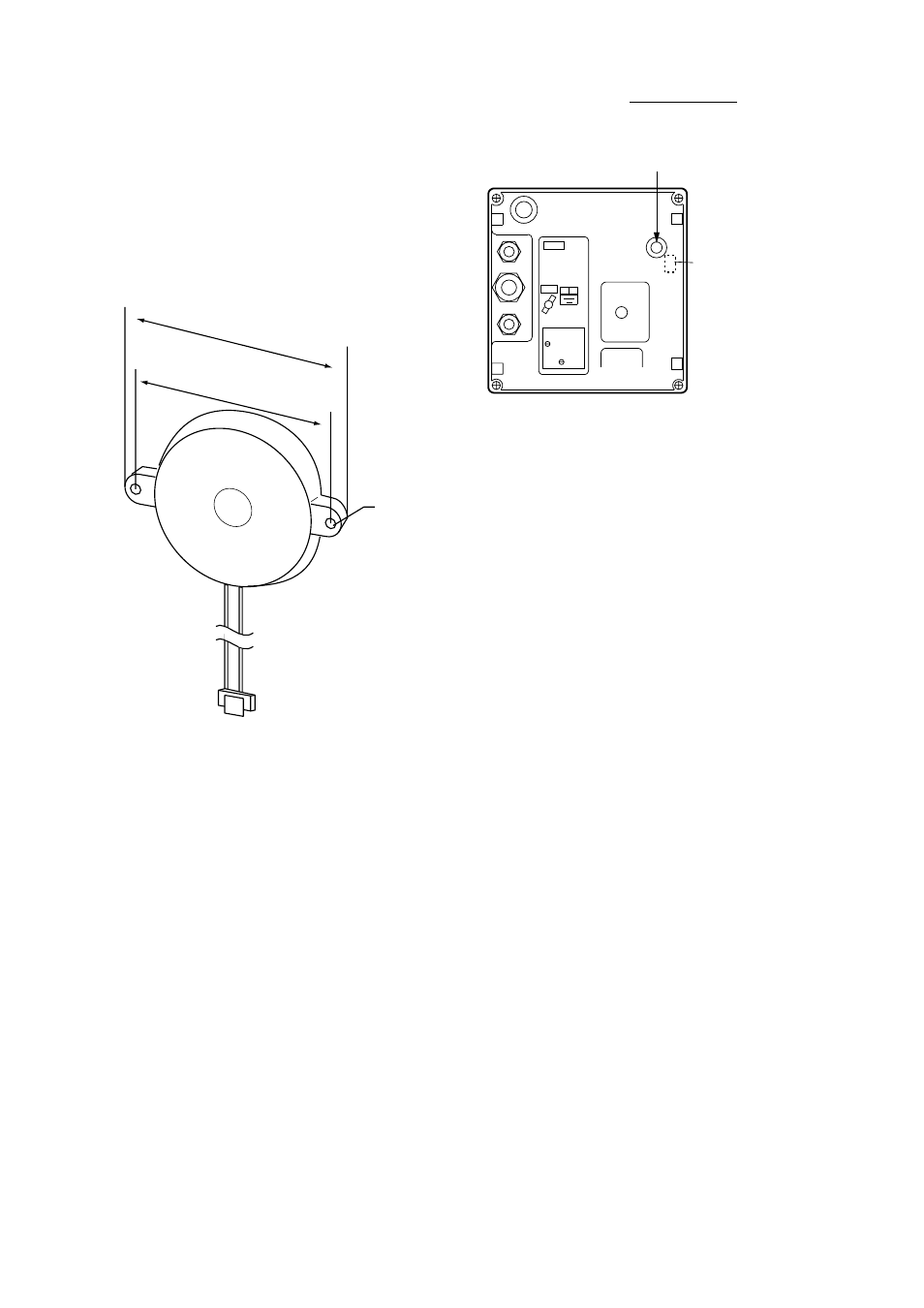

Figure 17 External buzzer
NMEA
DJ-1
10.2-31.0VDC
1 3GND
2
Note: Use hammer and appropriate
metal rod to make hole.
External Buzzer
Make a hole of
φ
16
here. Seal hole with
sealing compound
after connecting cable.
J6 located at right
side of shield case
under the rear panel.
Figure 18 Display unit, rear view
