2. WIRING
2.1 Connections

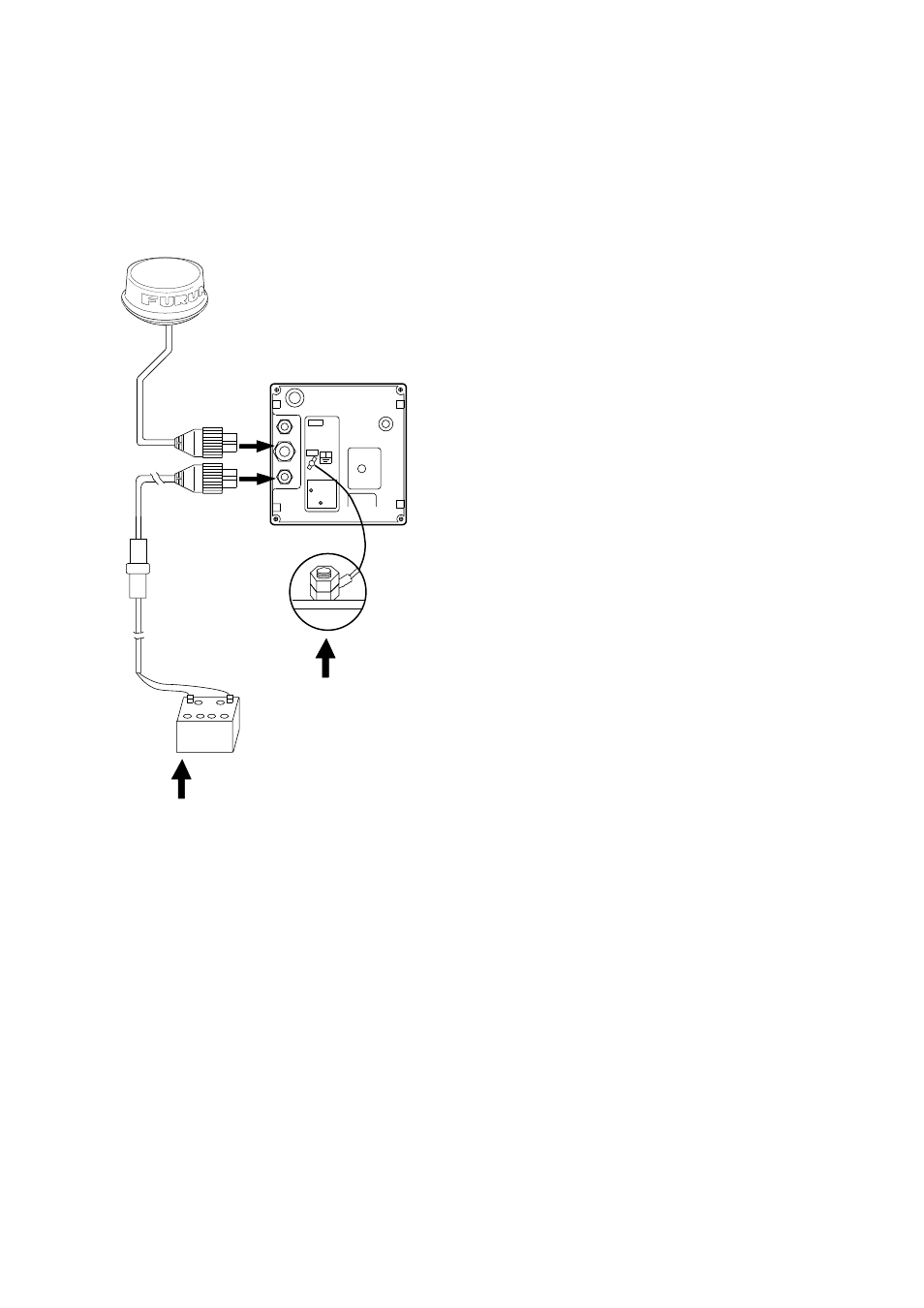

Connect the antenna cable, the power cable
and the ground wire as shown in Figure 13.
NMEA
DJ-1
10.2-31.0VDC
1 3GND
2
FUSE (5 A)
WHT (+)
BLK (-)
POWER SUPPLY
12/24 VDC
PO
WER CABLE
DISPLAY UNIT
GROUND
Connect ground
wire to bolt fastened
(or welded) to hull.
ANTENNA UNIT
ANTENNA CABLE
;;;;;;;;;
;;;;;;;;;
Figure 13 Connections
Connection of external
equipment
Navigator/echosounder
This radar can receive the following NMEA 0183
format data sentences from a navigator or
echosounder:
GLL:
Geographic position - Lat/Long
BWR:
Bearing and Distance to Waypoint -
Rhumb line
BWC:
Bearing and Distance to Waypoint
GLC:
Geographic Position - Loran-C
GTD:
Geographic Position - Time Difference
RMA:
Recommended Minimum Specific
Loran-C Data
RMB:
Recommended Minimum Navigation
Information
RMC:
Recommended Minimum Specific
GPS/Transit Data
VTG:
Track Made Good and Ground Speed
MTW:
Water Temperature
DBT:
Depth Below Transducer
DBS:
Depth Below Surface
DPT:
Depth
GGA:
GPS - Rx status, L/L
