1. MOUNTING
1-4
D>50 cm
D
5X20
Flush with hull bottom
1.2 Transducer
The performance of the video sounder depends upon the transducer position. A place least
affected by air bubbles should be selected since turbulence blocks the sounding path.
Further, select a place least influenced by engine noise. It is known that air bubbles are
fewest at the place where the bow first falls and the next wave rises, at usual cruising
speed.
Note: The face of the transducer must be facing the sea bottom in normal cruising trim of the
boat.
1.3 Water Temperature Sensor (option)
Transom mount water temperature sensor T-02MTB
•
Fix the cable at a convenient location
on the transom with the cable clamp.
•
When the cable is led through the
transom board, make a hole of
approx. 17 mm in diameter to pass
the connector. After passing the
cable, seal the hole with a sealing
compound.

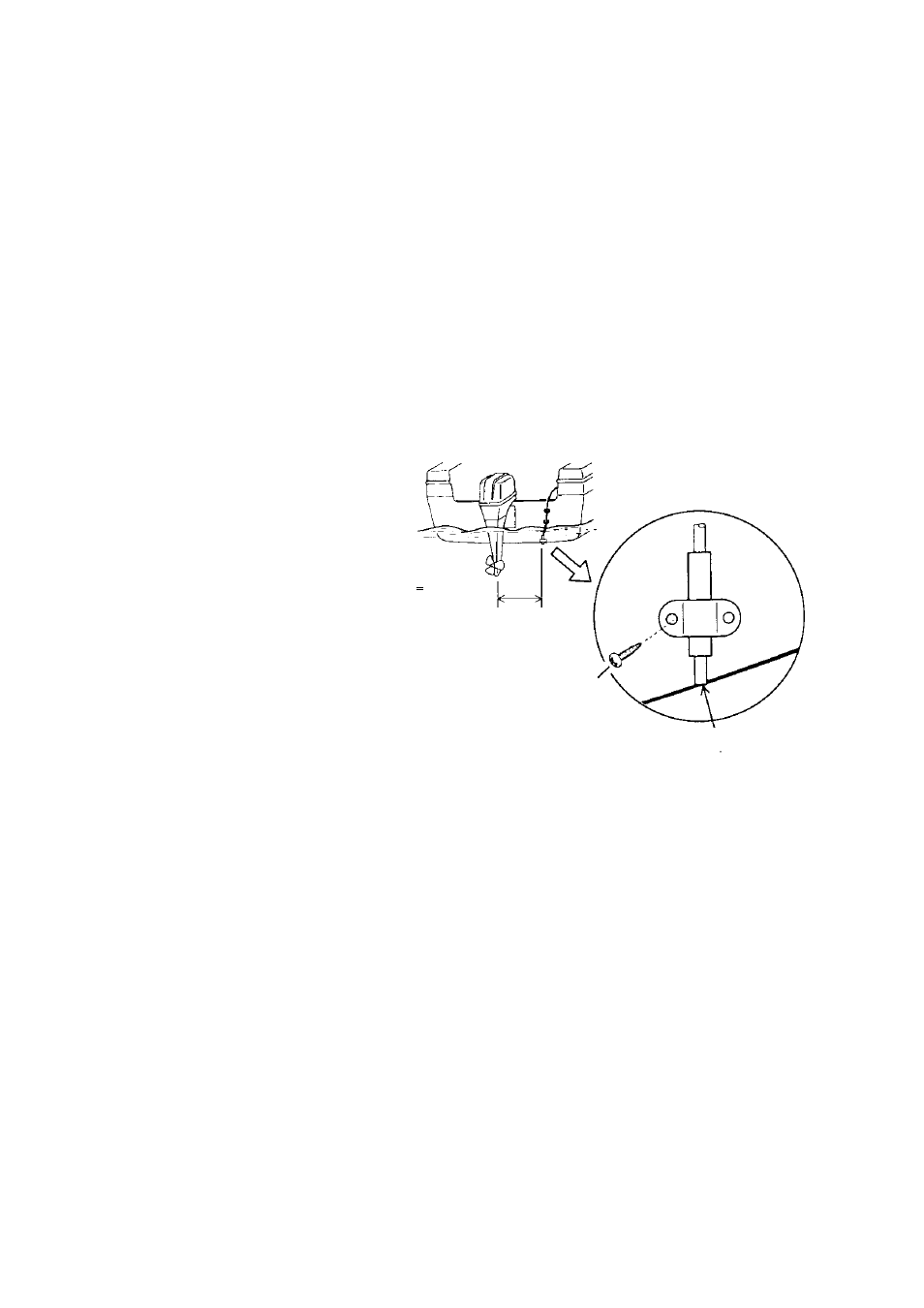

How to mount transom mount water
temperature sensor T-02MTB
