3. INITIAL SETTINGS
3-5
Transducer setting
Change the terminal board setting at the rear of the display unit according to the transducer
connected.
Note the alphabet which appeared when selecting the transducer type on the installation
main menu (page 3-4), and then do the following procedures.
1. Dismount the display unit from the mounting place.
2. Loosen four screws to remove the rear cover.
Note: There is no gasket for lid. (The groove around the terminal board does not hold a
gasket.)
12-24_VDC
NMEA
TEMP
H
L

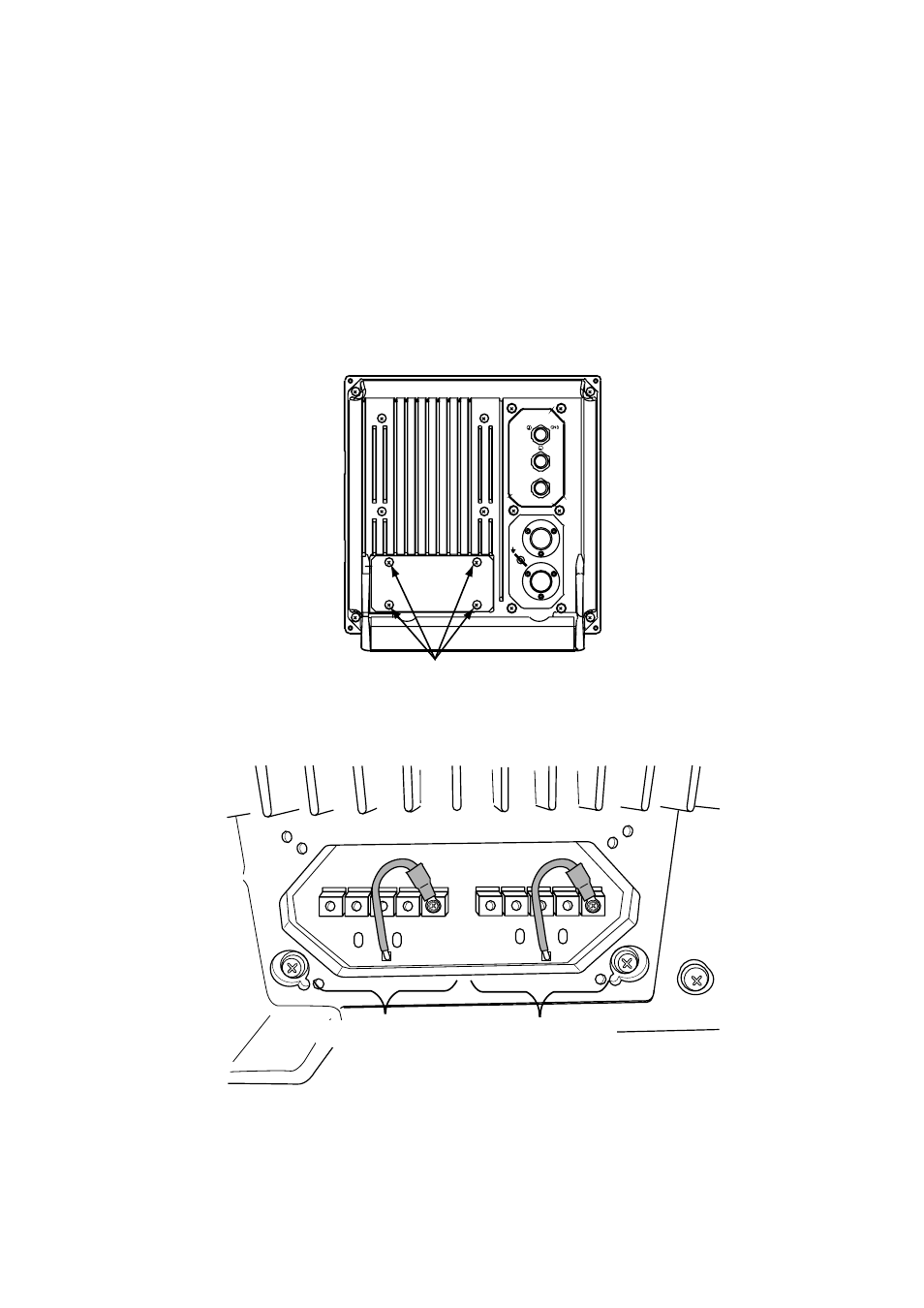

Loosen these screws.
Display unit, rear view
3. Fasten the crimp-on lug to the appropriate terminal according to alphabet appearing on
the installation menu.
A
L H
A B C D E B C D E
TB10 TB9 TB8 TB7 TB6 TB5 TB4
TB3
TB2 TB1
For Low Frequency For High Frequency
Terminal board
4. Remount the display unit.
