Fisher-Price T6137 - Manual (Page 11)

11 T6137pr-0920
TOP VIEW
BACK VIEW
Tabs
Tab
Slot Slot
Slots
ASSEMBLY
Windshield
Large
Tab
Large Slots
Short Seat Belt
Long Seat
Belt Strap
T-loops
“T” End
“T” End
Slot Slot
Short Seat Belt Seat
Slots
12
11
A
C
B
13
14

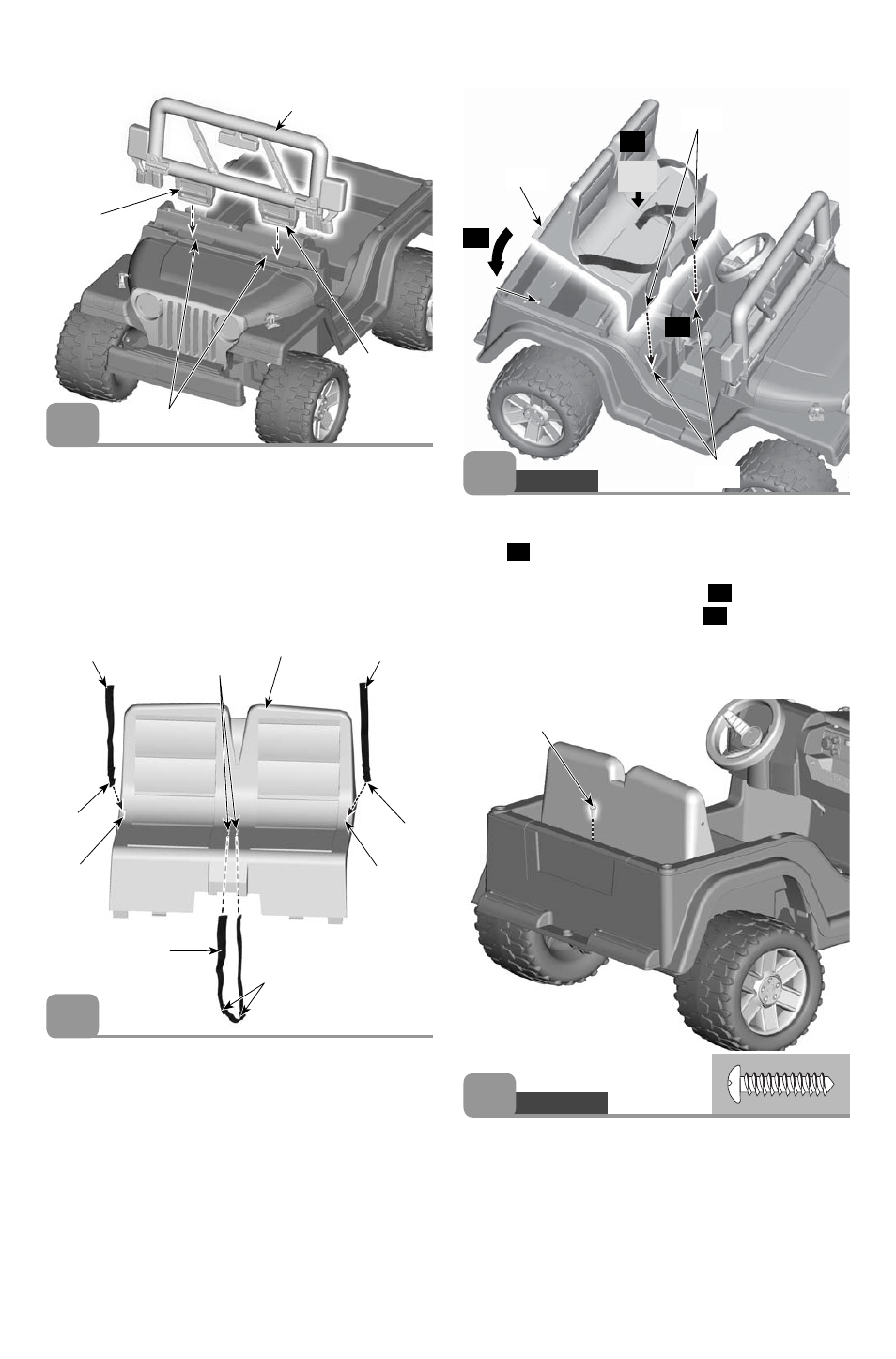

Position the windshield so the molded detail on the •
wiper faces the front of the vehicle.
Hint: The windshield will only fit one way. If it does not
seem to fit, turn it around and try again.
Insert and • “snap” the two large tabs on the
windshield into the large slots in the dash.
Pull up on the windshield to be sure it is secure.
•
Insert the “T” end of a short seat belt up through •
a slot near the outer edge of the seat. Make sure the
side of the seat belt with the fastener faces the outer
edge of the seat.
Pull up on the short seat belt to be sure it is secure in
•
the slot.
Repeat this procedure to assemble the other short
•
seat belt.
Insert the fastener ends of the long seat belt strap
•
through the slots in the center of the seat. Make sure
the fasteners face the outer edge of the seat. Pull each
side of the long seat belt strap evenly through the
slots until each T-loop is pulled through the slot.
With the seat at an angle, insert the two tabs on the •
front edge of the seat into the slots in the foot-well
wall
A .
Push down firmly on the edge of the seat above each •
tab to snap the tabs into the slots B .
Rotate the back of the seat down • C to snap the seat
tabs into the slots in the vehicle. Push down firmly on
the seat back.
Insert a #10 x ¾" screw into the rear edge of the seat •
and tighten.
Large Tab
#10 x ¾" Screw
PUSH
HERE
