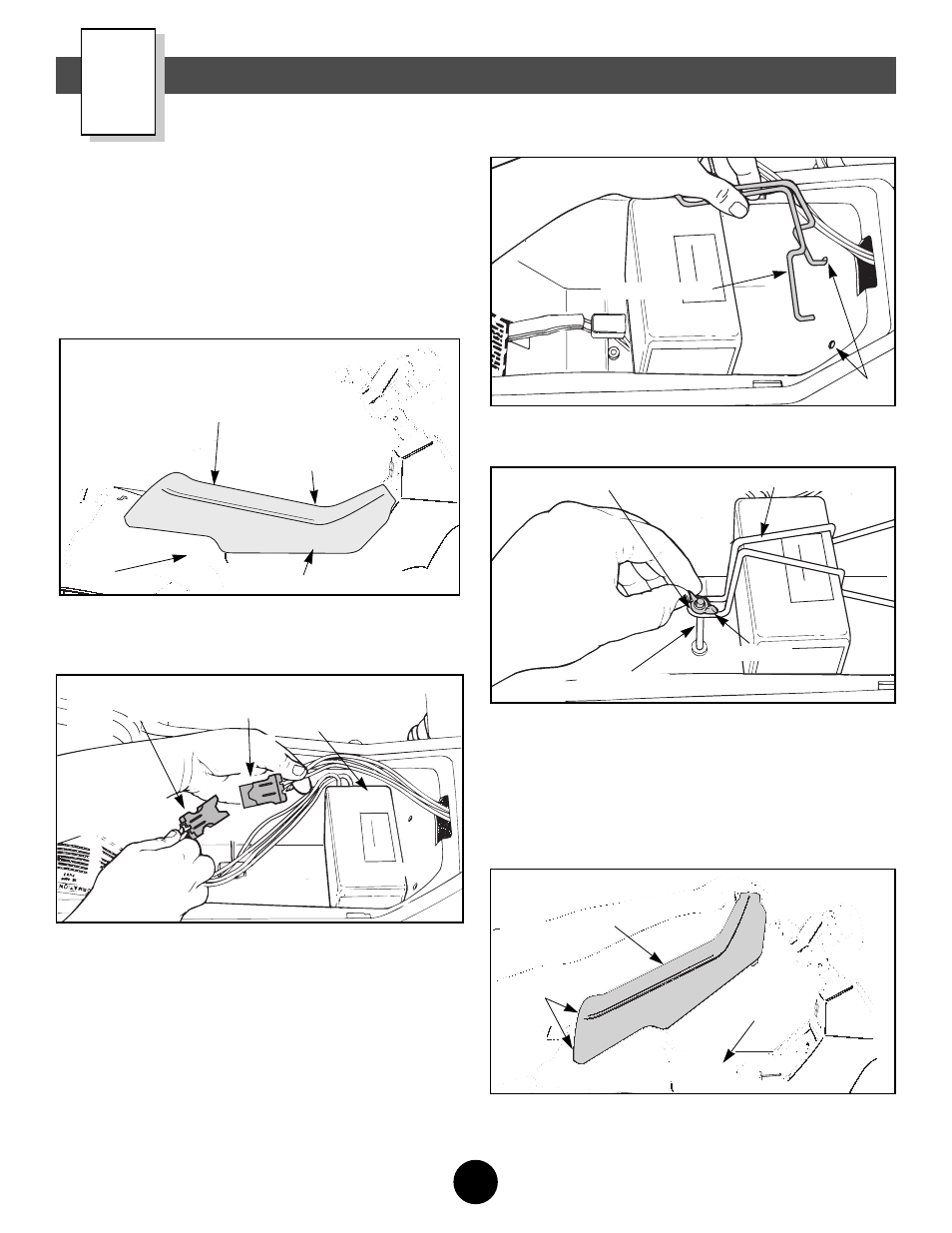

Battery Installation

Important Note: Use only a Power Wheels

®

6 volt battery

with an A-style connector and built-in thermal fuse. Use of
any other battery may damage your vehicle. Make sure that
you charge the battery for at least 18 hours using the
enclosed Power Wheels

®

Super 6

Volt charger with A-style

connector before operating your vehicle for the first time.
Charge the battery for at least 14 hours after each use of
the vehicle. Never charge the battery longer than 30 hours.
Failure to follow these instructions may damage your battery
and will void your warranty.

1

H

• Press in on each side of the seat (near each tab) and lift

the front of the seat.

• Remove the seat.

• Place the battery upright in the battery compartment.

• Plug the battery and motor harness connectors together.

Push firmly to plug the two connectors together.

• Lower the battery retainer over the batteries.

• Fit the carriage bolt up through the hole in the underside

of the vehicle body and through the end loop in the
battery retainer.

• Fit the #10 washer onto the carriage bolt.

• Fit the wing nut onto the carriage bolt.

• Tighten the wing nut. Do not over-tighten.

• Insert the ends of the battery retainer into the holes in the

front of the battery compartment.

• Fit the hooked tabs on the back of the seat into the slots

in the back of the vehicle body.

• Press in on the sides of the seat and lower the seat

to insert the tabs on each side of the seat into the
vehicle body.

Vehicle
Body

Seat

Battery
Connector

Motor Harness
Connector

Battery

Holes

Battery Retainer

Carriage Bolt

Wing Nut

#10 Washer

Battery Retainer

2

3

5

4

16

PUSH HERE

Tabs

Seat

Vehicle Body

PUSH HERE
