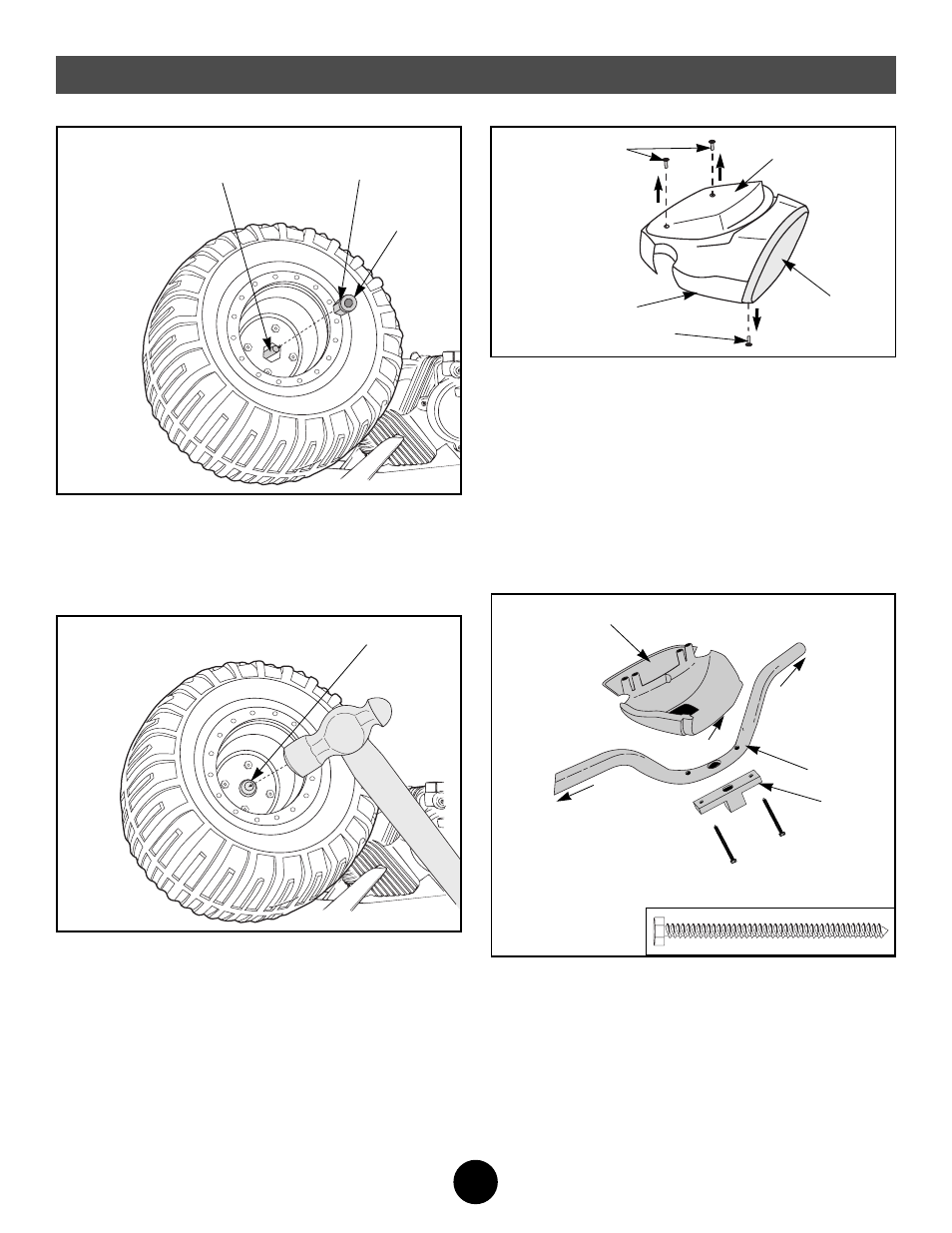

• Slide a hex bushing onto the front axle. The ring side of

the hex bushing should face out.

• Press firmly to fit all but the ring on the end of the hex

bushing into the front wheel.

Front Axle

Hex Bushing

Ring Side

9

• Fit a cap nut on the end of the front axle.

• Tap the cap nut with a hammer to secure it on the end of

the front axle.

• Pull on the wheel to make sure the cap nut is securely

fastened.

• Repeat this procedure to assemble the other front wheel

to the other front axle.

• Set the vehicle body aside.

Cap Nut

• Position the handlebar with the grip area up.

• Fit the neck against the bottom of the handlebar, with the

holes in the handlebar and neck aligned.

• Position the handlebar so the grip area points away

from you.

• While holding the neck to the handlebar, fit the lower

console, with the open end toward you, onto the handlebar.

• Insert two 2" screws up through the neck, handlebar and

into the lower console.

• Tighten each screw with a slotted screwdriver. Do not

over-tighten.

Handlebar

Neck

Assembly

10

12

11

Lower Console

11

Note: For packaging reasons, the console/headlight has
been pre-assembled at the factory. You will need to disassem-
ble the console/headlight to assemble it to the handlebar.
• Loosen and remove the #6 x

1

/

2

" screw in the headlight

with a Phillips screwdriver. Remove the headlight by first
pulling the bottom out slightly and then pushing the
headlight up.

• Loosen and remove the two #8 x 1" screws in the upper

console with a Phillips screwdriver.

• Set the screws, upper console, lower console and

headlight aside for assembly steps 12-20.

Upper Console

Headlight

#8 x 1"
Screws

#6 x

1

/

2

" Screw

Lower Console

Grip Area Up
and Pointed
Away

Grip Area Up
and Pointed
Away

Open End
