E-8
PART NAMES AND FUNCTIONS (Continued)
HDMI (High-Definition Multimedia Interface)
HDMI is a standard for home digital interfaces, which can transmit images as well as multichannel
audio signals and control signals through one cable.

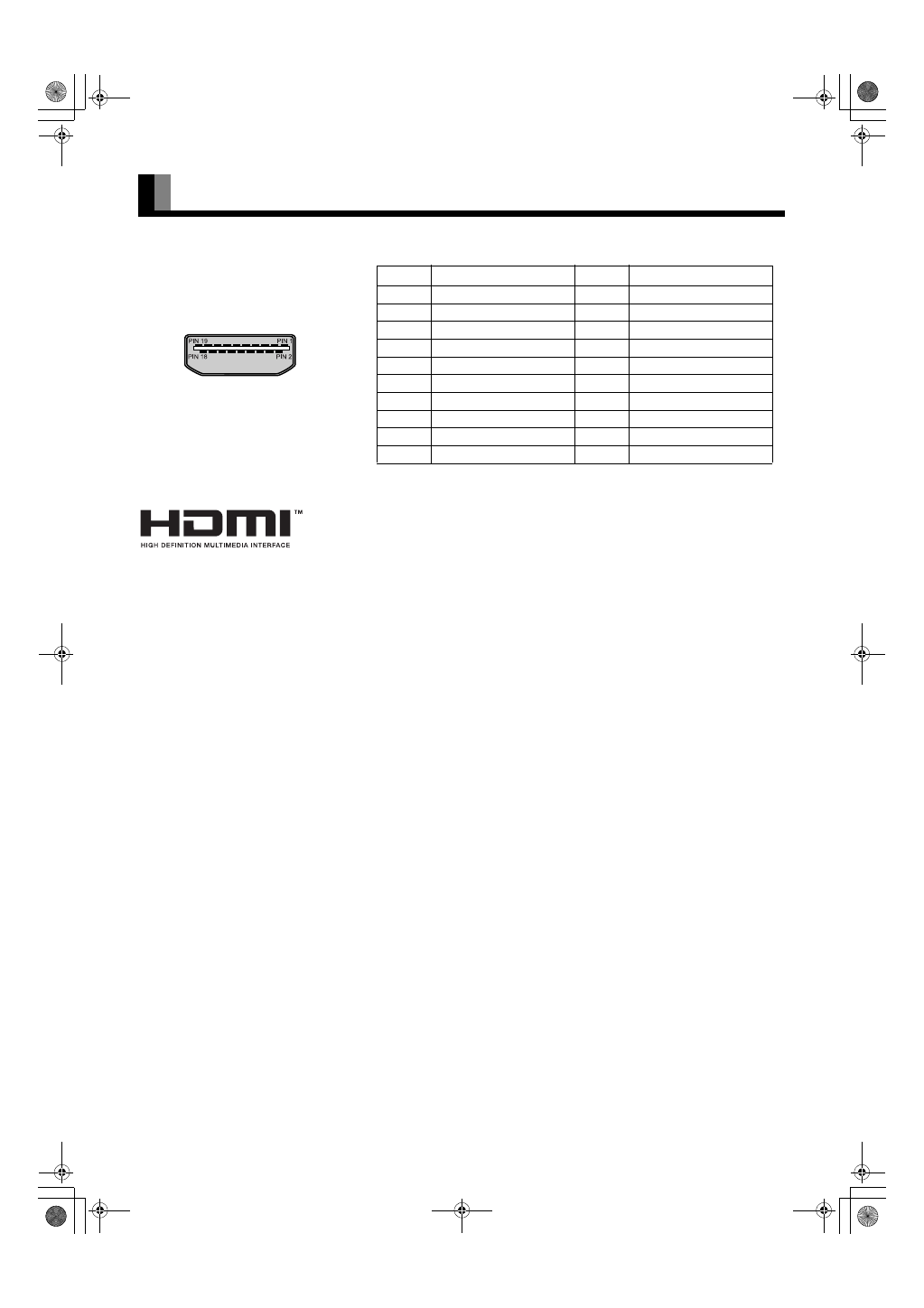

HDMI input terminal (VIDEO5 INPUT/HDMI)
for the U model
Pin No. Input signal Pin No. Input signal
1 T.M.D.S. Data2+ 11 T.M.D.S. Clock Shield
2 T.M.D.S. Data2 Shield 12 T.M.D.S. Clock–
3 T.M.D.S. Data2– 13 CEC
4 T.M.D.S. Data1+ 14 Reserve
5 T.M.D.S. Data1 Shield 15 DDC Clock
6 T.M.D.S. Data1– 16 DDC Data
7 T.M.D.S. Data0+ 17 Ground (for +5V)
8 T.M.D.S. Data0 Shield 18 +5V Power
9 T.M.D.S. Data0– 19 Hot Plug Detect
10 T.M.D.S. Clock+ Frame FG
