DO NOT BURN WET COAL
minimum 4"
34"
34"
18"
barometric
damper
draft
adjustment
8"
8"
16"
Use only U.L. approved floor
board
IMPORTANT

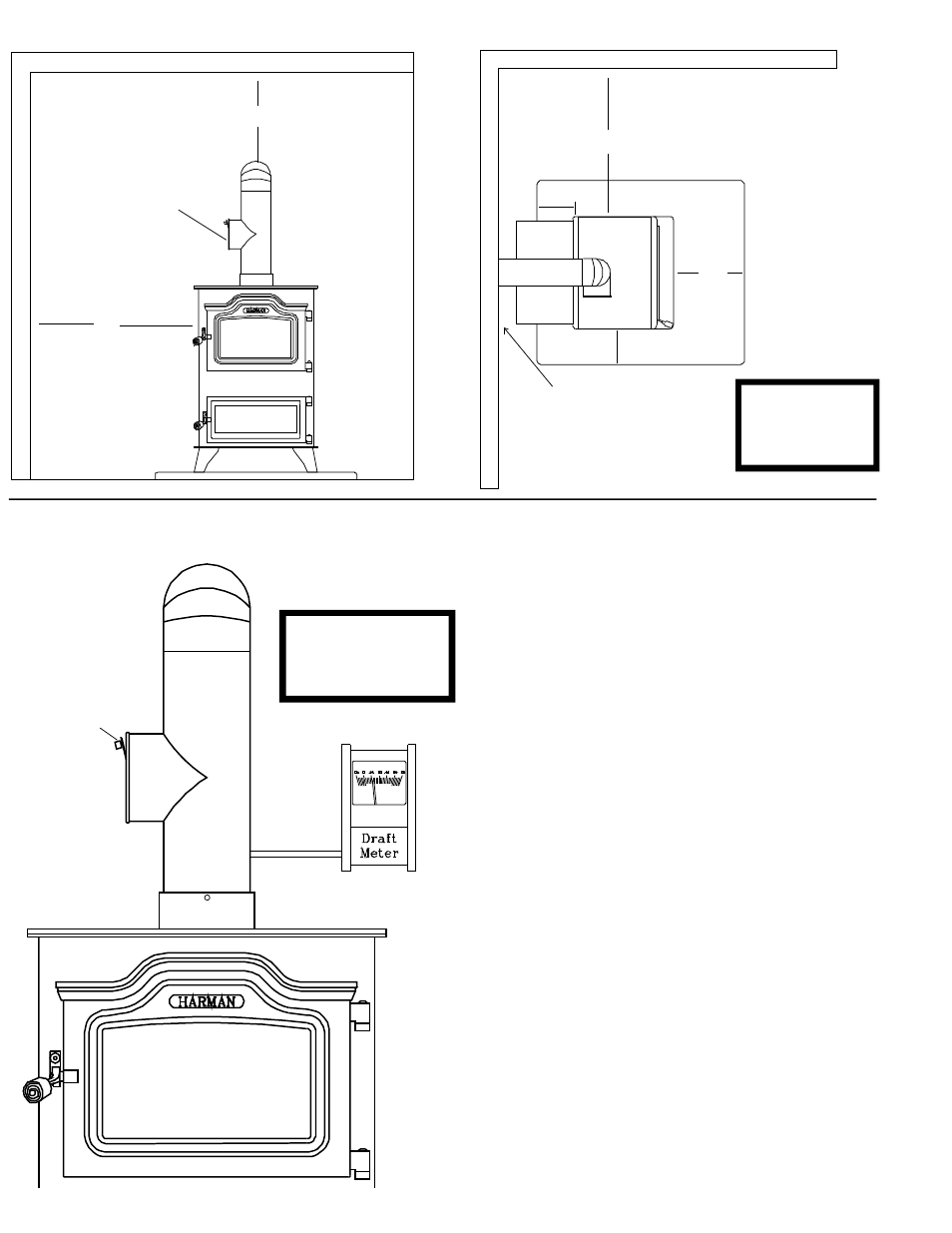

Front Top View
Clearance to Combustibles
INSTALLATION
Take draft reading between the
barometric damper and the
stove. Do this on pilot mode.
IMPORTANT
Place the stoker a minimum of 4" to a com-
bustible wall from the rear of the hopper and a
minimum of 34" from the sides. The stove should
be placed on a noncombustible floor. Install a 6"
stove pipe from flue opening to chimney with a
barometric damper. Secure all pipe joints with
sheet metal screws. Plug power cord into a 120
volt receptacle.
Refer to the section on operation to light a
fire. With the stove burning and stabilized set
barometric damper at .04 to .06 on the draft meter.
We do not expect you to own a draft meter. There-
fore, have your dealer do set-up and fine tuning.
If your chimney will not produce .04 on the
draft meter, a draft inducer should be installed by
your dealer. The draft inducer will provide the
additional draft needed for proper operation.
