7
DO NOT BURN WET COAL
Control Box
Small blower
Large blower
thermostat
fig 3
fig 4
gasket
Feeder

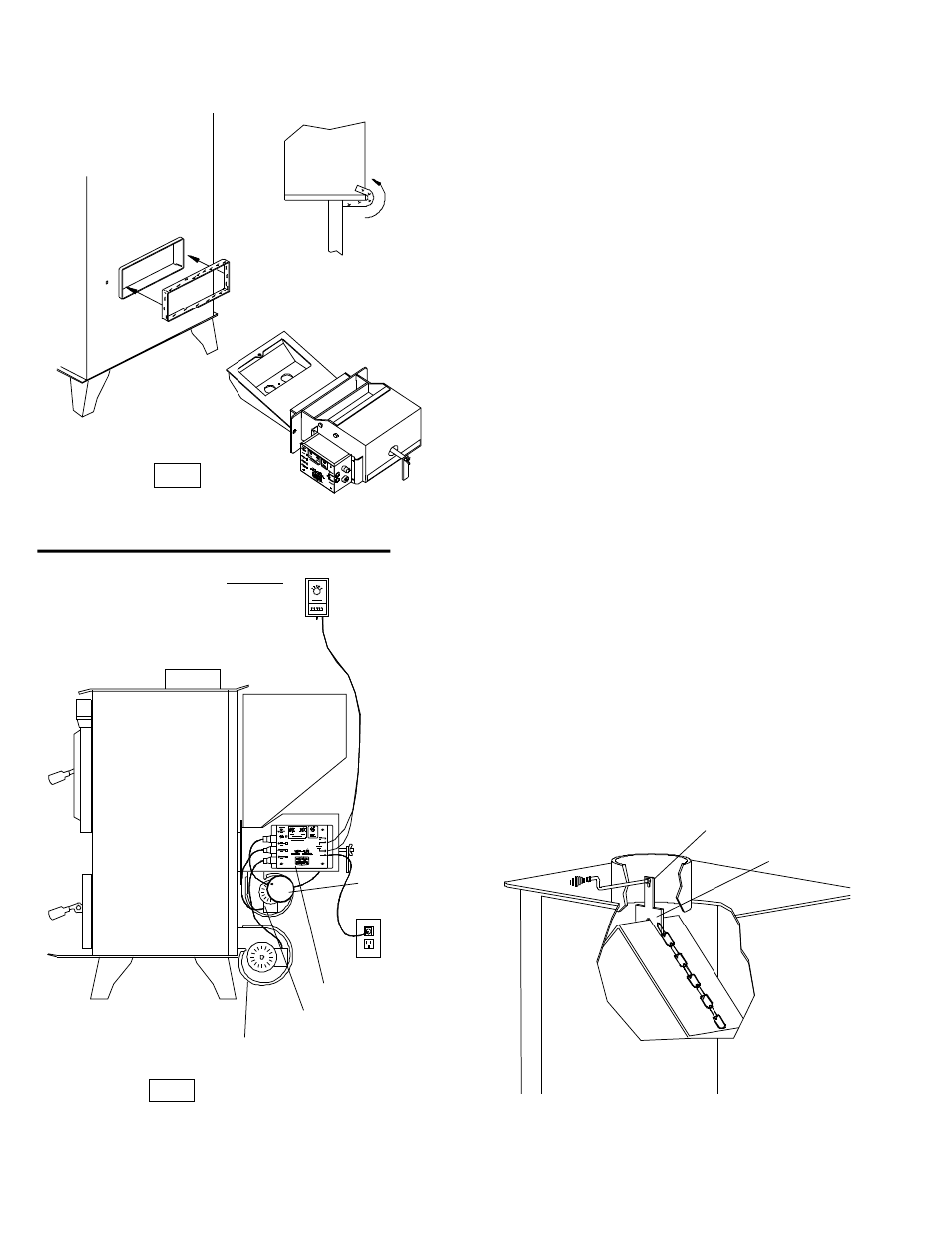

Begin assembly by sliding the pusher block with the
adjuster rod from the front through the slot shown in fig.1.
Be sure the pusher block is turned with the bolt hole to
feed indicator side.
Next, hold pusher block in the most rearward posi-
tion and slide the adjuster tube over the adjuster rod until it
bottoms out on the pusher block. Thread the adjuster
over the adjuster rod. Thread wing nut on the end of the
adjuster rod.
Make sure the gasket is in place on the feeder
opening on the rear of the unit, as shown in fig 3. Insert the
stoker into the opening in the rear of the unit. Bolt fast and
tighten with (2) 5/16 X 1 1/4 bolts.
Install the smaller of the two blowers on the bottom
of the feeder by sliding it into the bracket as far as it will
go. Install restricter plate on blower as shown below in
Fig. 4.
Slide the larger blower into place on the bottom rear
Restricter Plate
Control Box
Blowers
Cleanout Scraper
Install scraper as shown below with locking nut
on each side of the scraper. Tighten nuts when in the
rear most position to assure alignment. Cycle rod in
and out to clean unit.
lock nut
scraper
