Page 21
21
DO NOT BURN WET COAL
temperature
pressure
relief valve
aquastst
automatic air
valve
circulator pump
valve
valve

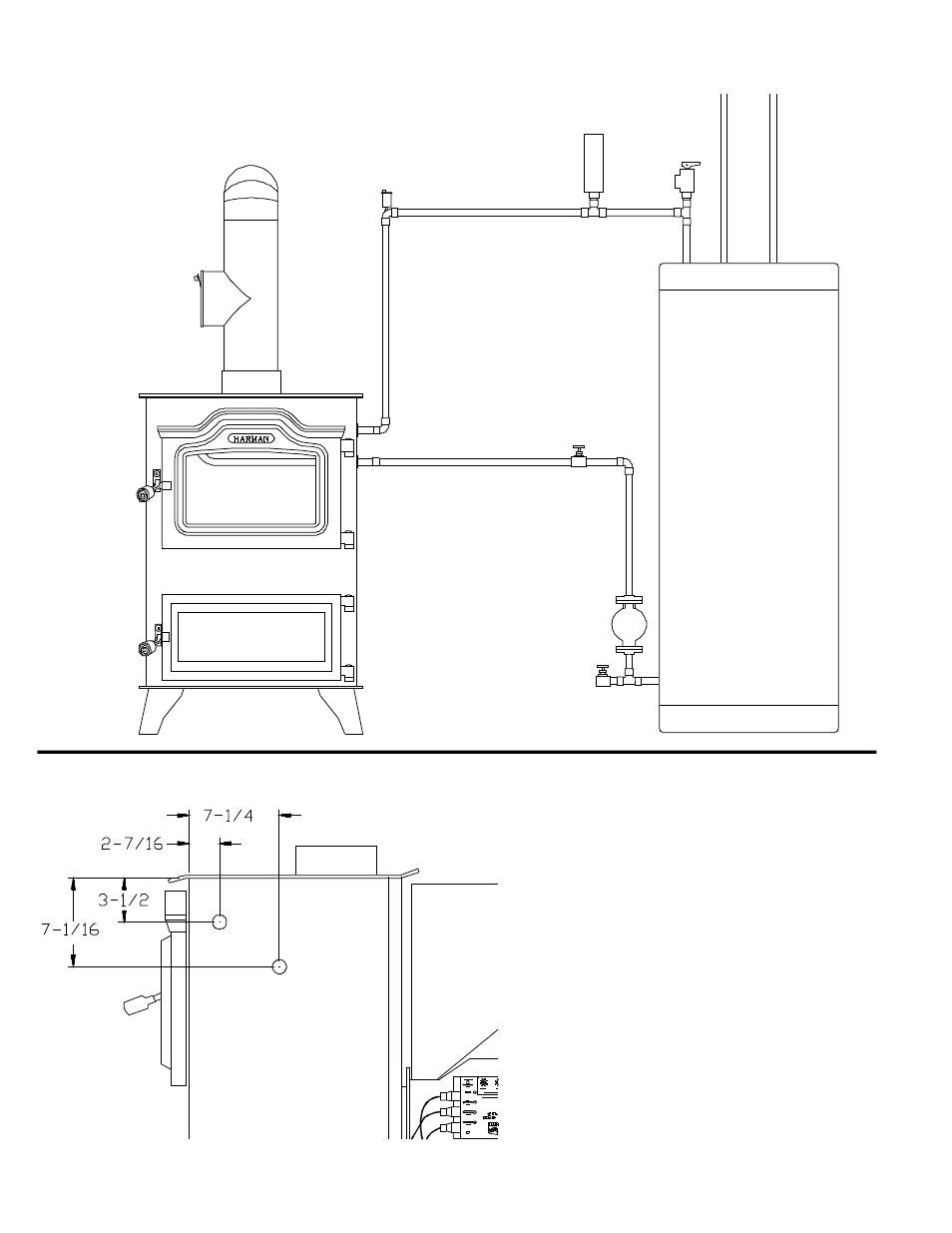

Domestic hot water coil hookup
electric hot water heater
Cut holes with 1 1/8" hole saw where
shown . Install coil with hardware provided.
Hook up as shown above. If distance between
unit and tank is less than 10 feet the circula-
tor pump and aquastat are not needed. Aq-
uastat is to turn on pump when water reaches
about 140 degrees in systems over 10 feet
apart.
