English---12 115374427 Rev. 2 5/6/10
ASSEMBLY
NOTE: Make sure unit is assembled cor-
rectly as shown in this manual.

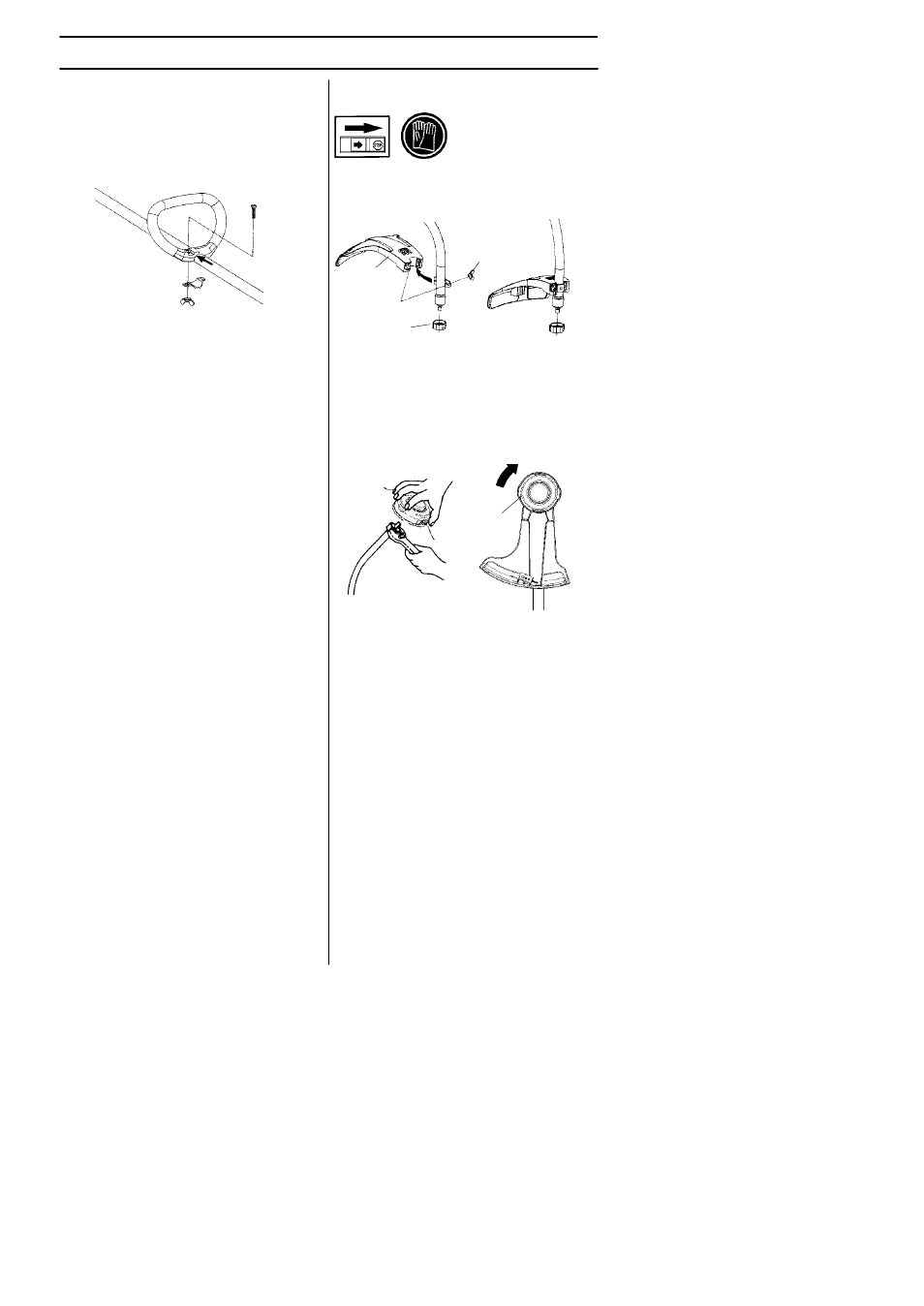

Fitting the loop handle
S Position the handle on the shaft. Note
that the handle must be mounted be-
tween the two arrows on the shaft.
S Fit the screw, securing plate and wing
nut as shown in the diagram.
S Tighten the wing nut.
F itting the trimmer guard and
trimmer head
S Fit the correct trimmer guard (A) for use
with the trimmer head. Hook the trimmer
guard/combination guard onto the fitting on
the shaft and secure with the wing nut (B).
A
C
B
S Fit the dust cup (C) on the shaft. The nut
must be completely covered by the dust
cup.
S Hold the dust cup with a wrench to pre-
vent the shaft from rotating.
S Screw the trimmer head (D) onto the
shaft.
S To dismantle, follow the instructions in
the reverse order.
D
