111-2129 Rev B

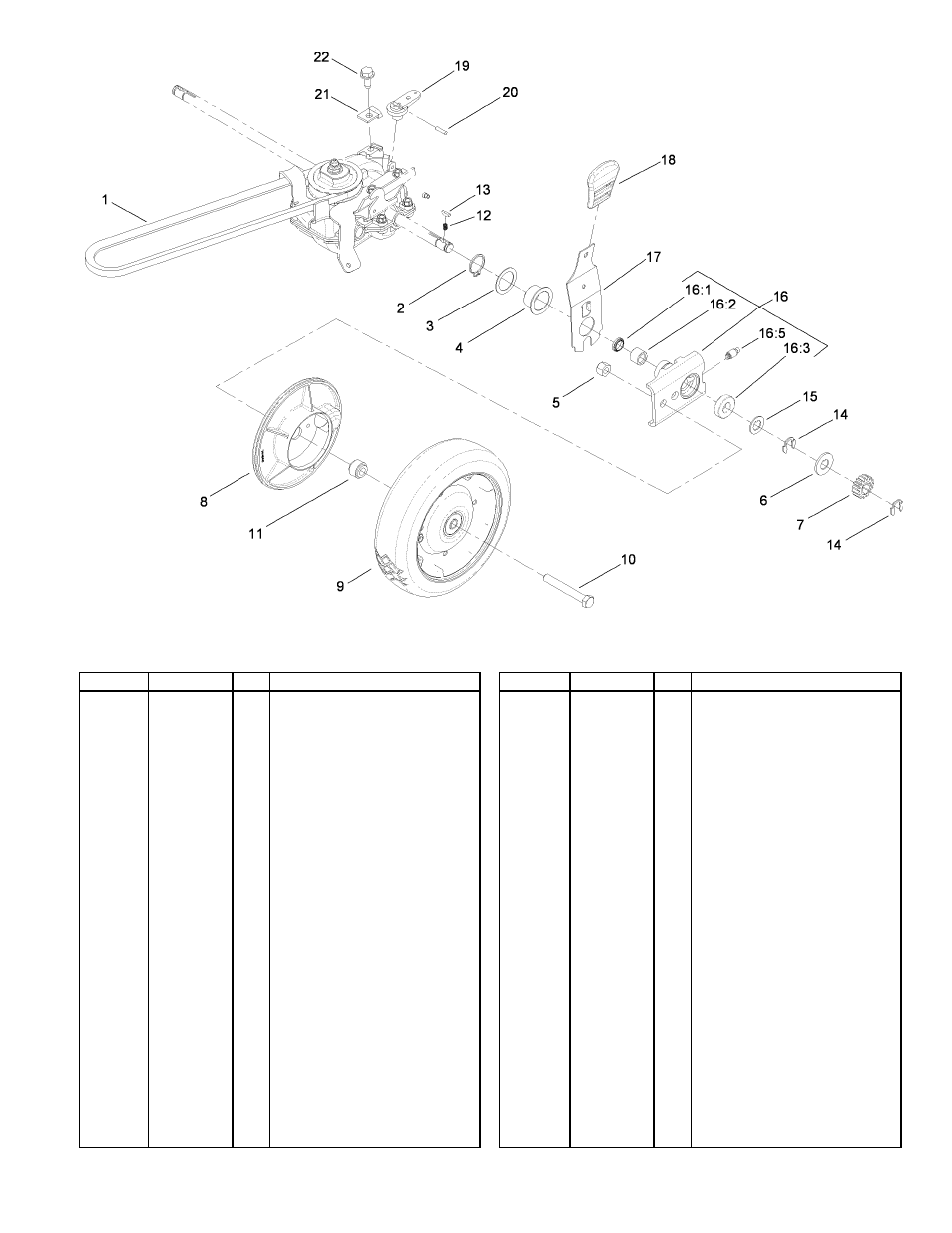

Rear Suspension Assembly

7

Ref

Part No.

Qty. Description

V-Belt

1

612652

1

Ring-Retaining

2

32151-36

2

Washer

3

74-1810

2

Bushing-Flange

4

115-0966

2

Nut-Lock, Cone

5

32152-2

2

Washer-Thrust, Outer

6

62-3830

2

Gear-Pinion

7

39-9160

2

Cover-Wheel

8

74-1640

2

Wheel And Tire ASM

9

115-3813

2

Screw-HH

10

323-13

2

Spacer-Cover, Wheel

11

74-1650

2

Spring-Compression

12

39-9650

2

Key

13

612066

2

Ring-Retaining

14

32151-68

4

Washer-Thrust, Outer

15

49-7700

2

Pivot Arm ASM

16

74-1851

2

Seal-Oil

16:1

47-6730

1

Bearing-Roller

16:2

48-2060

1

Bearing-Wheel

16:3

52-2450

1

Zerk

16:5

92-6316

1

Rear Spring Arm ASM

17

115-0979

2

Knob-HOC

18

110-0549

2

Lever-Shift

19

29-9560

1

Pin-Coil

20

32121-99

1

Ref

Part No.

Qty. Description

Clamp-Cable

21

62-3720

1

Screw-HWHTF

22

32144-70

1

Grass Bag ASM

23

115-3815

1
