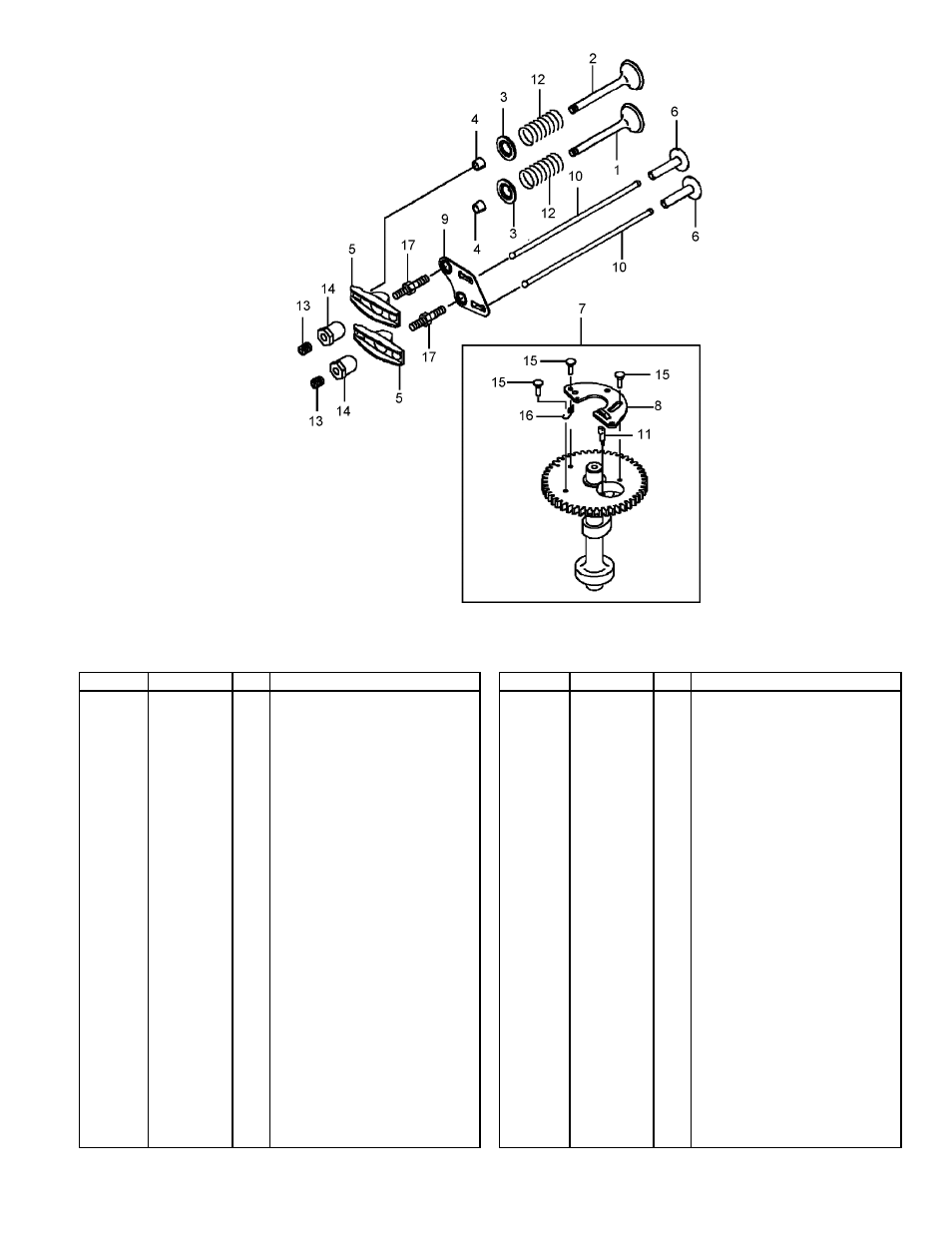

Valve and Camshaft Assembly

E4

Ref

Part No.

Qty. Description

Valve-Intake

1

108-2523

1

Valve-Exhaust

2

108-2524

1

Retainer-Spring, Valve

3

108-2525

2

Collet

4

95-9744

4

Arm-Rocker

5

108-2526

2

Tappet

6

108-2527

2

Camshaft Valve ASM

7

108-2528

1

Weight

8

108-2529

1

Guide

9

108-2530

1

Rod-Push

10

108-2531

2

Arm

11

108-2532

1

Spring-Valve, Engine

12

108-2533

2

Screw

13

108-2534

2

Nut

14

93-8534

2

Pin

15

108-2535

3

Spring

16

108-2536

1

Bolt

17

108-2537

2
