111-2129 Rev B

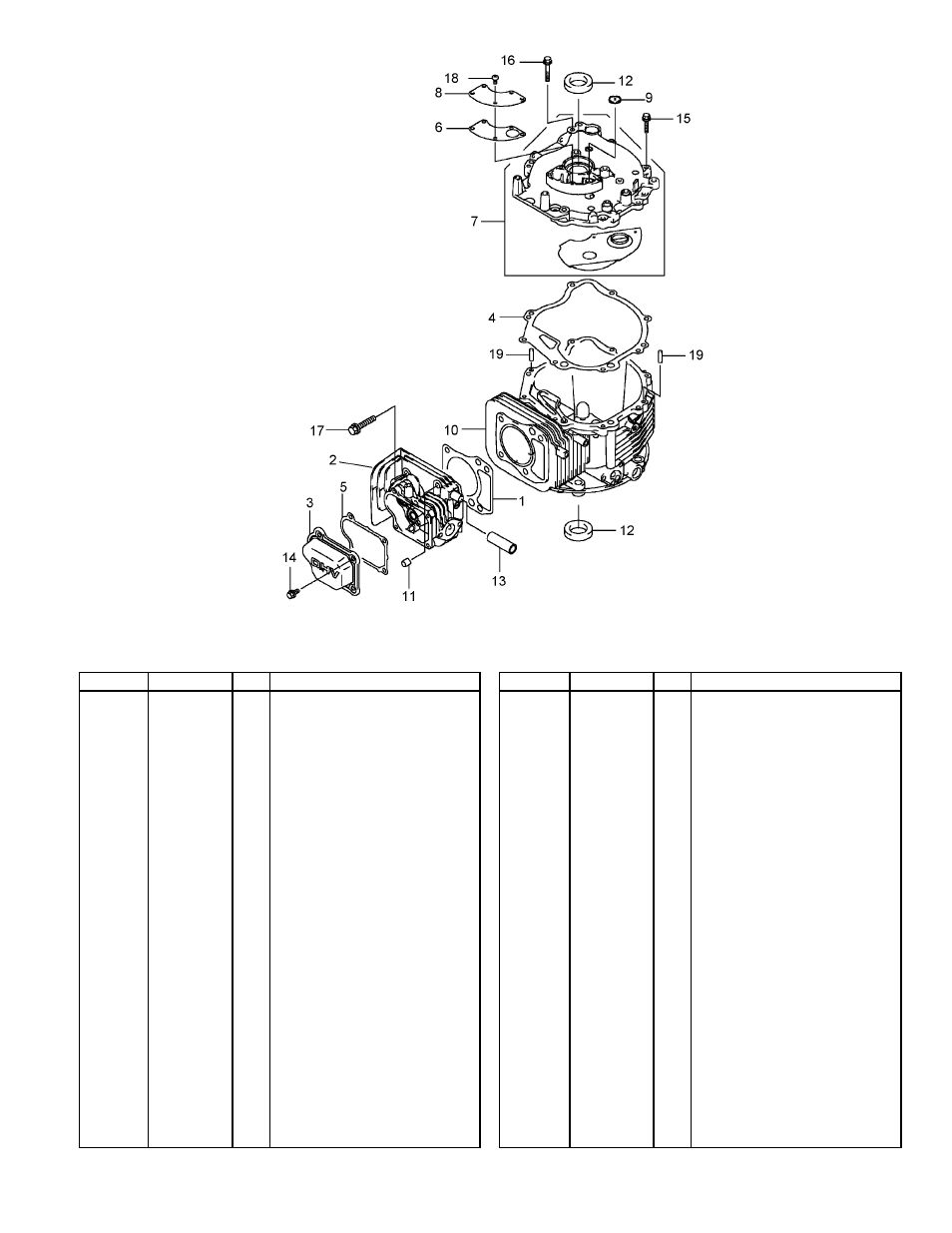

Cylinder and Crankcase Assembly

E2

Ref

Part No.

Qty. Description

Gasket-Head

1

108-2627

1

Head-Cylinder

2

108-2501

1

Case-Rocker

3

108-2502

1

Gasket

4

108-2503

1

Gasket-Case, Rocker

5

108-2504

1

Gasket-Breather

6

108-2505

1

Cover-Complete

7

108-2506

1

Cover-Breather

8

108-2507

1

Valve-Breather

9

108-2508

1

Crankcase-Complete

10

108-2509

1

Pin

11

108-2510

2

Seal-Oil

12

108-2511

2

Tube

13

108-2512

1

Bolt-Flanged

14

100-2804

4

Bolt-Flanged

15

100-2610

7

Bolt-Flange

16

108-2513

1

Bolt-Flange

17

108-2514

4

Screw-Pan

18

100-2763

5

Pin-Dowel

19

108-2515

2

12
