Hayter Mowers G002741 - Manual (Page 8)

111-2129 Rev B

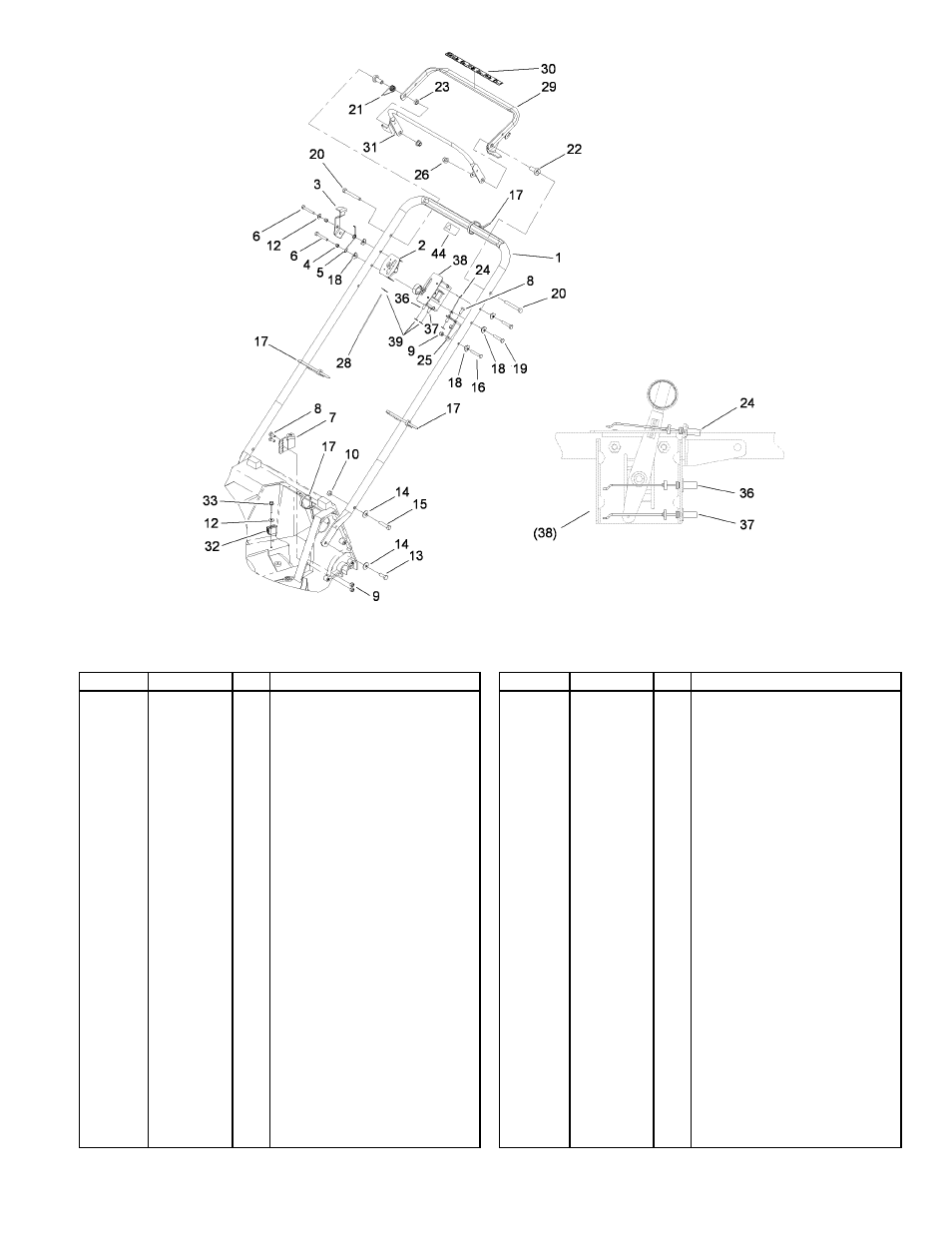

Handle and Bail Assembly
5
Ref Part No. Qty. Description
Handle 1 107-4162-03 1
Control-Shift 2 110-5026 1
Latch-Lever, BBC 3 115-0999-01 1
Spacer-Flange 4 110-0542 2
Spring-Torsion, Latch 5 115-0996 1
Screw-HH 6 321-10 2
Anchor-Cable 7 115-4453 1
Screw-HH 8 321-3 3
Nut-Lock, NI 9 3296-42 4
Nut-Lock, NI 10 3296-29 4
Washer-Flat 12 3256-1 2
Screw-HH 13 322-4 2
Washer-Belleville 14 3290-456 4
Screw-HH 15 322-7 2
Screw-HH 16 321-9 1
Tie-Cable 17 3290-378 4
Washer 18 115-0995 5
Screw-HH 19 321-13 2
Screw-HH 20 322-12 2
Spring-Torsion 21 115-0993 1
Spacer-Support 22 49-1631 2
Spacer 23 59-4310 1
Cable-BBC 24 107-4296 1
Bracket-Cable, BBC 25 115-4455 1
Ref Part No. Qty. Description
Nut-Lock, NI 26 3296-58 2
Cable-Shift 28 107-4295 1
Traction Bail ASM 29 115-4454-03 1
Decal-Control 30 110-2115 1
BBC Bail ASM 31 115-4452-03 1
Anchor-Cable, Upper 32 92-7729 1
Screw-HWH 33 32144-110 1
Cable-Traction 36 107-4294 1
Throttle Cable ASM 37 110-4923 1
Control-Head, Throttle 38 108-2645 1
E-Ring 39 32151-86 4
Decal-Protection, Ear 44 98-4387 1
