Engine and tank assembly – Hayter Mowers G002741 User Manual
Page 7
111-2129 Rev B

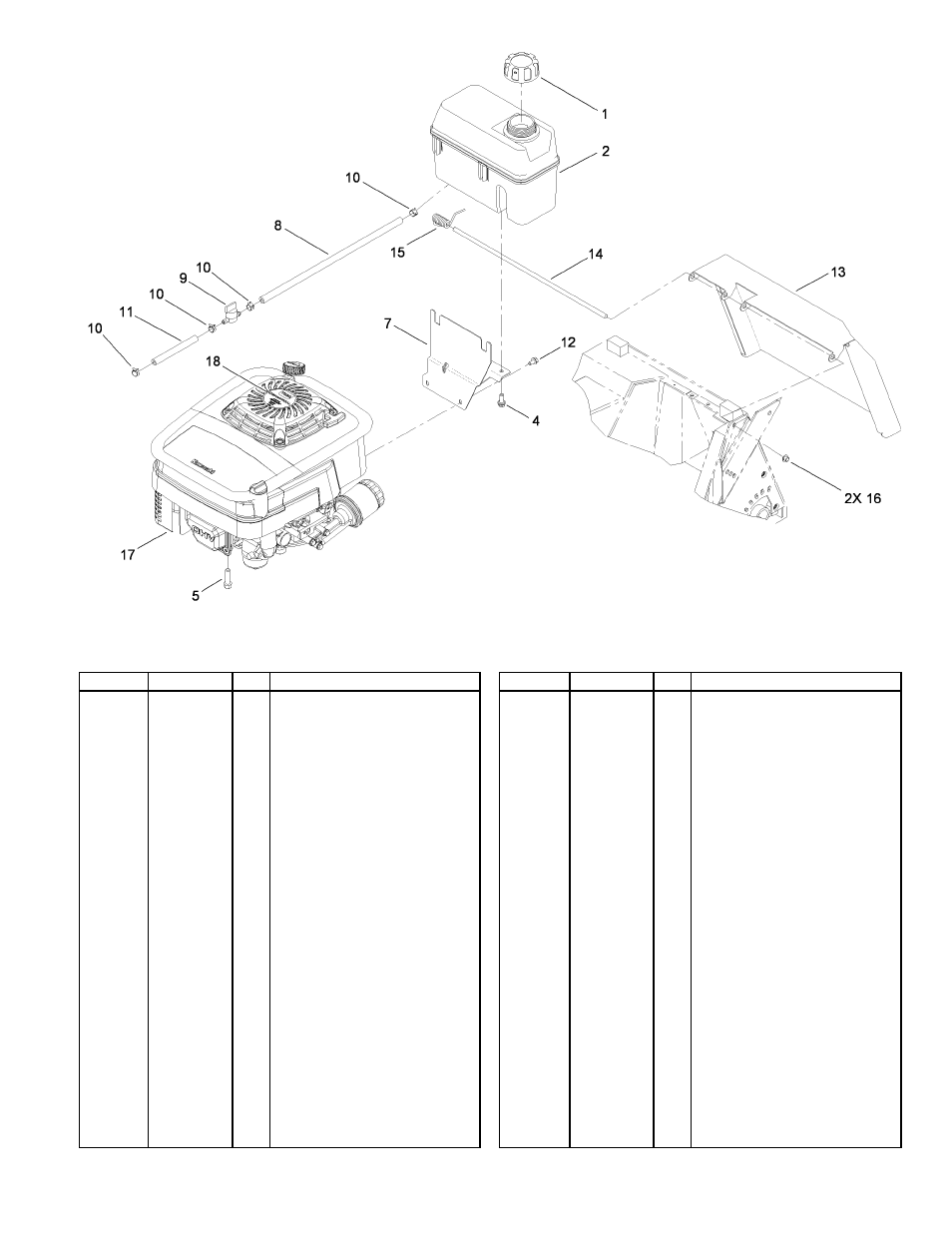

Engine and Tank Assembly
4
Ref
Part No.
Qty. Description
Gas Cap ASM
1
93-7198
1
Tank-Fuel
2
106-0625
1
Screw-HWH
4
46-8091
2
Screw-Taptite
5
95-1727
4
Tank Mount ASM
7
115-0954-03
1
Hose-Fuel
8
109-0296
1
Valve-Fuel
9
1-603770
1
Clamp
10
2412-98
4
Hose-Fuel
11
109-0650
1
Screw-HWH
12
104-2628
3
Door-Discharge, Rear
13
114-3445-03
1
Rod-Door
14
107-4286
1
Spring-Torsion, Door
15
110-5005
1
Pushnut-Cap, Washer
16
32112-1
2
Engine ASM
17
1
o
Decal
18
111-1918
1
7
