12

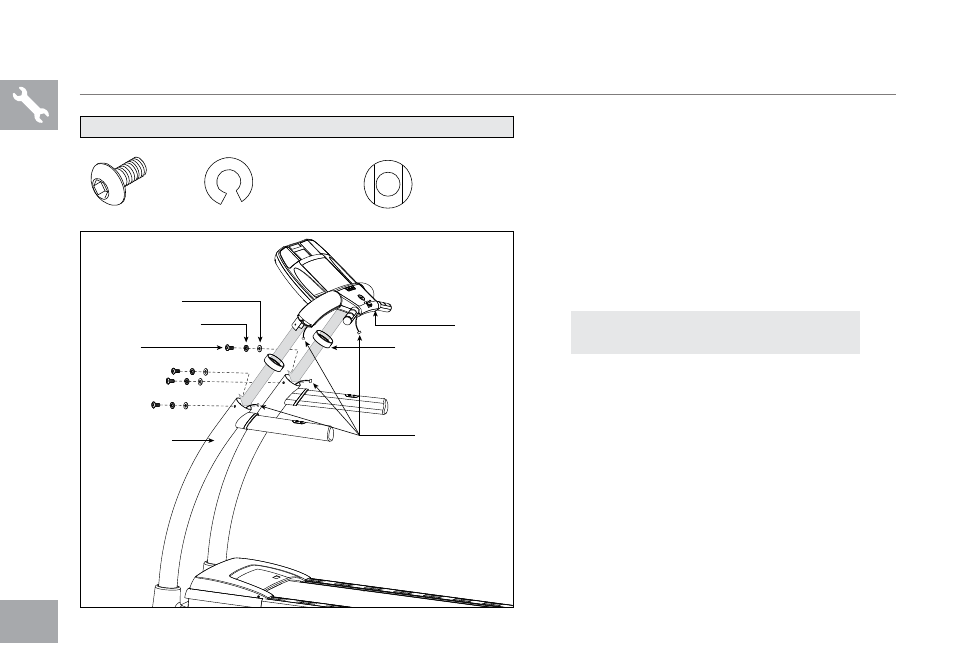

ASSEMBLY STEp 3
A Open HARdWARE bAG 3.
B Slide CONSOlE through the CONSOlE
MAST bOOTS.
NOTE: Make sure the arrows on the mast rings
are pointing upward towards the console when
sliding into place.
C Connect CONSOlE CAblES.
D Connect CONSOlE to RIGHT CONSOlE
MAST using 2 bOlTS (A), 2 SpRING
WASHERS (b) and 2 ARC WASHERS (C).
E Repeat on other side.
NOTE: Be careful not to pinch any wires
while assembling the right console mast.
BOLT (A)
20 mm
Qty: 4 SPRING WASHER (B)
8.2 mm
Qty: 4 ARC WASHER (C)
8.2 mm
Qty: 4
HARdWARE bAG 3 CONTENTS :
BOLTS (A)
CONSOLE MAST
SPRING WASHERS (B)
CONSOLE MAST BOOT
CONSOLE CABLES
CONSOLE
ARC WASHERS (C)
