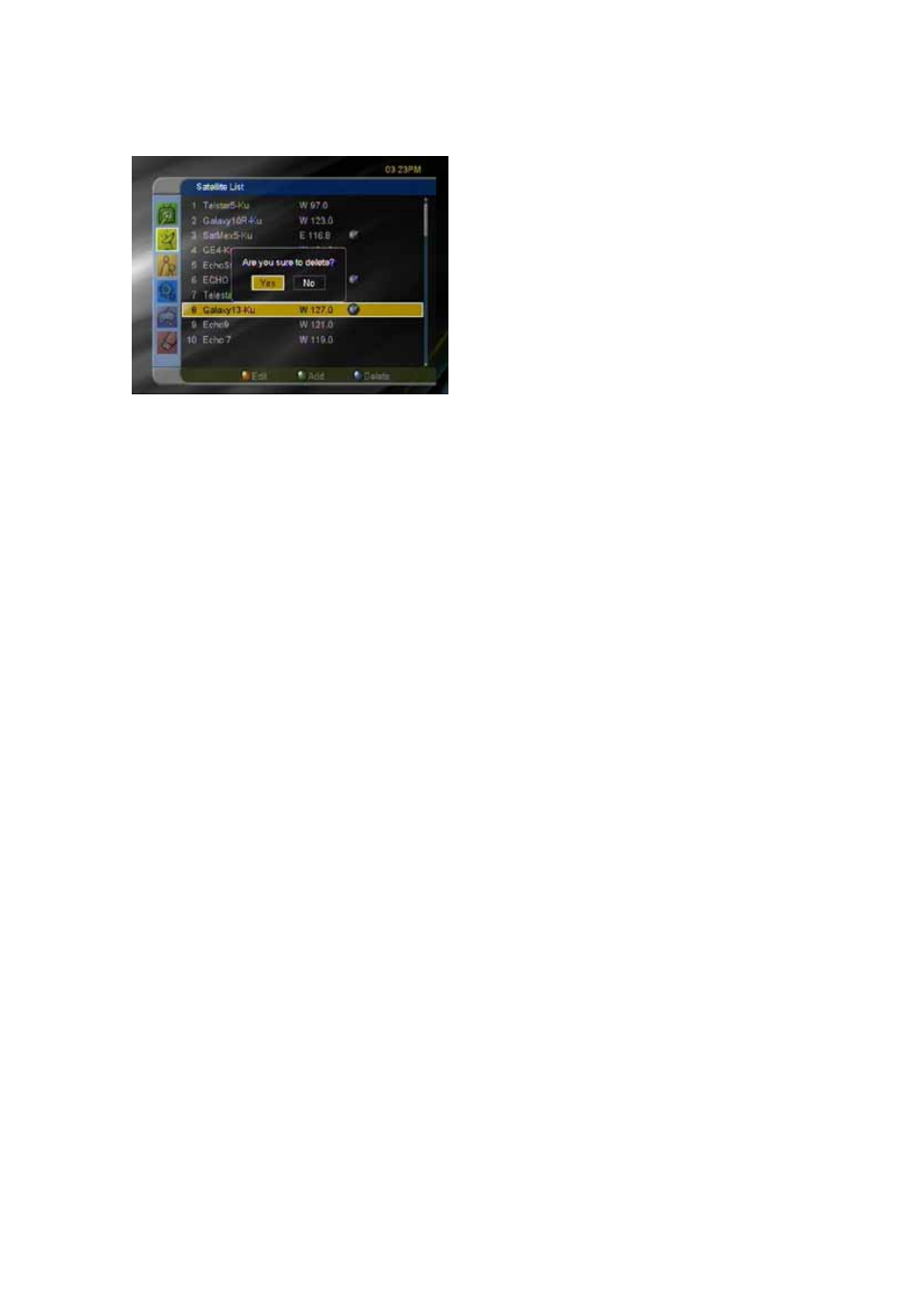

• Press [Blue] key, you will be asked “Are you sure to
delete?”. Select “yes” to delete the Satellite that
highlight focus on. Select “No” to cancel the operation
2.1.2 Satellite
You can find selected Satellite list by using
2.1.3 LNB Frequency
Select LNB type using keys and ▲▼ keys. And confirm it by [OK] key.
Option is 5150 / 5750 / 5950 / 9750 / 10000 / 10050 / 10450 / 10600 / 10700 / 10750 / 11250 / 11300 / 5150-5750 /
5750-5150 / Universal (9750-10600)
2.1.4 Transponder
Select a specific transponder by using keys or [OK] key and confirm it by [OK] key.
2.1.5 DiSEqC 1.0 or 1.1
Select a specific setting for DiSEqC 1.0 or 1.1 by using keys or [OK] key and confirm it by [OK] key.
Option is Disable / LNB1 / LNB2 / LNB3 / LNB4 at DiSEqC 1.0.
Option is Disable / LBN1 to LNB16 at DiSEqC 1.1.
2.1.6 Legacy Switch
Select a specific setting for Legacy Switch by using keys or [OK] key and confirm it by [OK] key.
2.1.7 22Khz
In case you are using a Dual LNB or two antennas connected to a 22KHz tone switch box, make 22KHz tone switch
“ON” or “OFF” to select a LNB or an antenna.
2.1.8 Positioner Setup
It is used to set the DiSEqC 1.2 motor & USALS
If you have no positioner equipment, select “Disable”.
