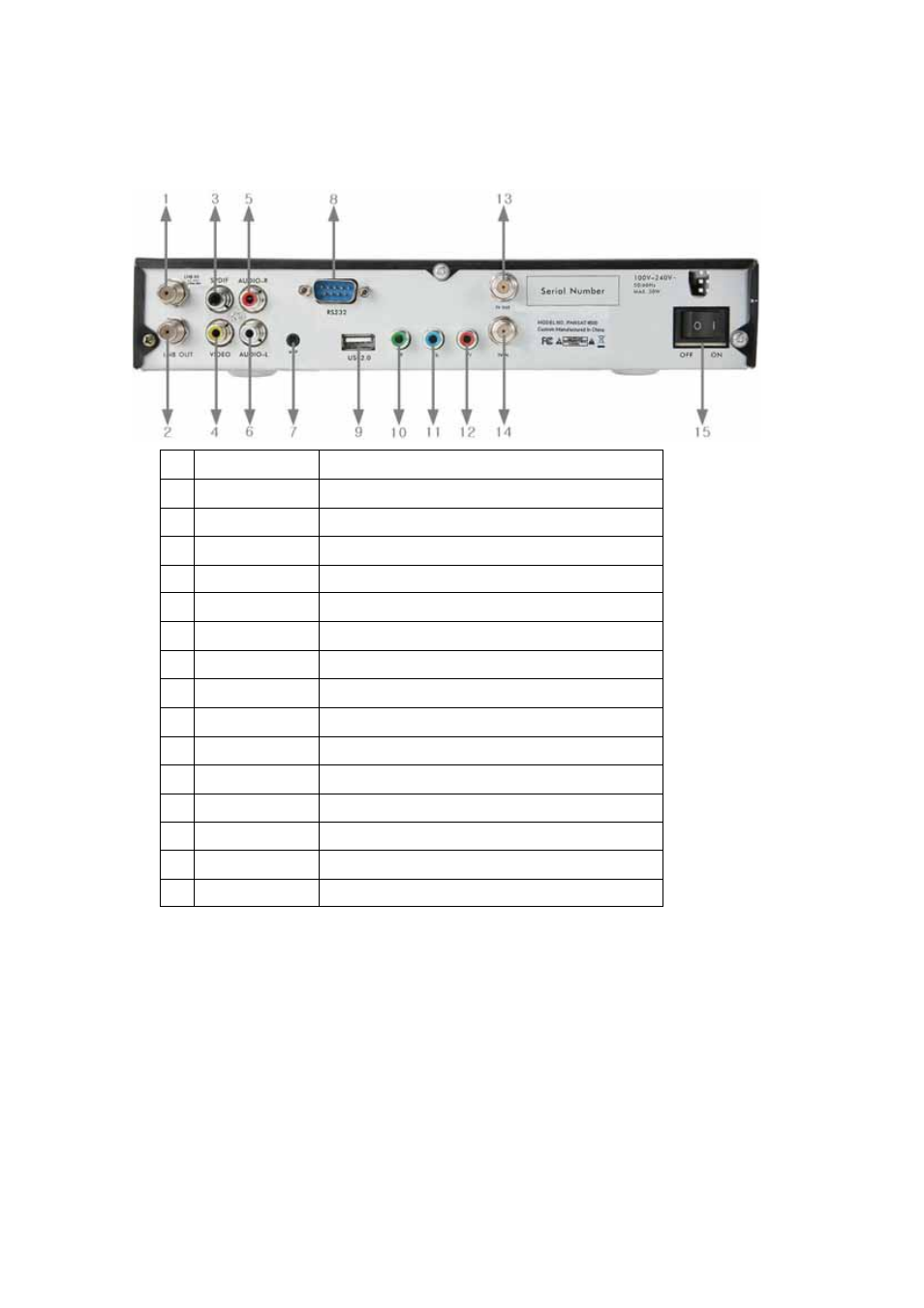

7. REAR PANEL
NO NAME
FUNCTION
1
LNB IN
IF Loop-through output to 2
nd
receiver
2
LNB OUT
IF INPUT from LNB to receiver
3
S/PDIF
For digital audio output
4
VIDEO
Composite Video Output
5
AUDIO-R
Right Audio Output
6
AUDIO-L
Left Audio Output
7
UHF
Option for UHF Remote Control lit
8
RS 232
Connect Serial Port
9
USB2.0
Connect UBS Port
10
Y
Component Video Output
11
Pb
Component Video Output
12 Pr
Component Video Output
13
TV OUT
Output to TV
14
TV IN
Input from terrestrial TV antenna
15
AC SWITCH
AC Power ON/OFF (Reset Function)
