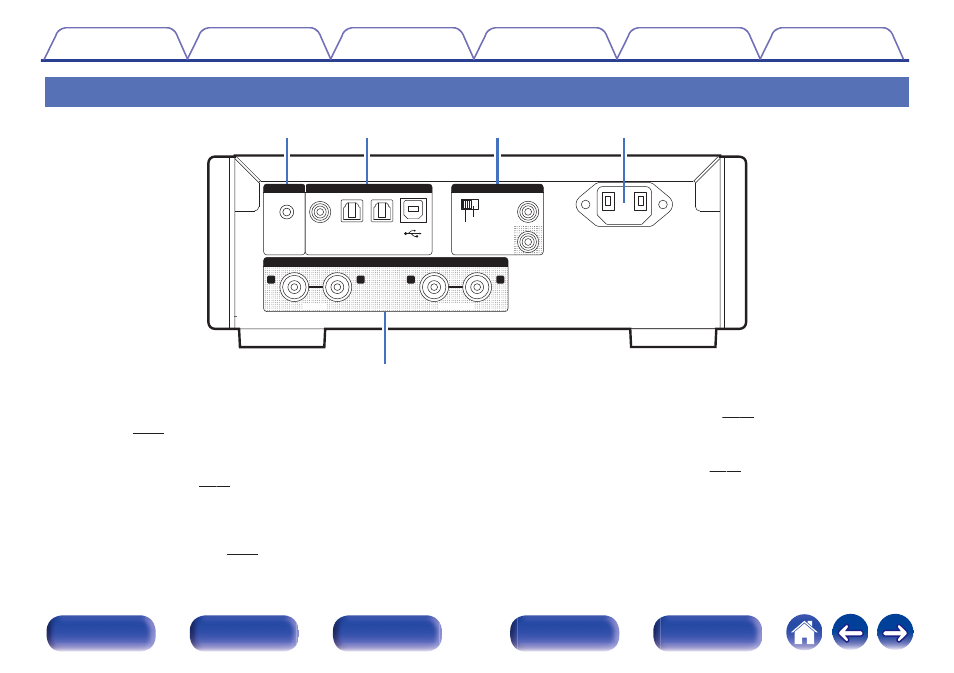

Rear panel
.
AC IN AC IN
1 1 2 2
VARIABLE VARIABLE FIXED FIXED
R L R L
DIGITAL AUDIO IN DIGITAL AUDIO IN
AUDIO OUT AUDIO OUT
AUDIO IN AUDIO IN
AUX AUX
OUT OUT
EXTERNAL EXTERNAL
INTERNAL INTERNAL
IN IN
COAXIAL COAXIAL OPTICAL OPTICAL USB-DAC USB-DAC
REMOTE CONTROL REMOTE CONTROL
t
q w e r
A AUX input connector
Used to connect a smartphone or portable player with an analog
output. (v p. 16)
B DIGITAL AUDIO IN connectors
Used to connect a computer or devices equipped with digital audio
output connectors. (v p. 17)
C Remote control input/output connectors
(REMOTE CONTROL IN/OUT)
Used to connect to a Marantz amplifier that is compatible with the
remote control function. (v p. 22)
D AC inlet (AC IN)
Used to connect the power cord. (v p. 23)
E AUDIO OUT connectors
Used to connect devices equipped with analog audio inputs connectors
or an external power amplifier. (v p. 16)
