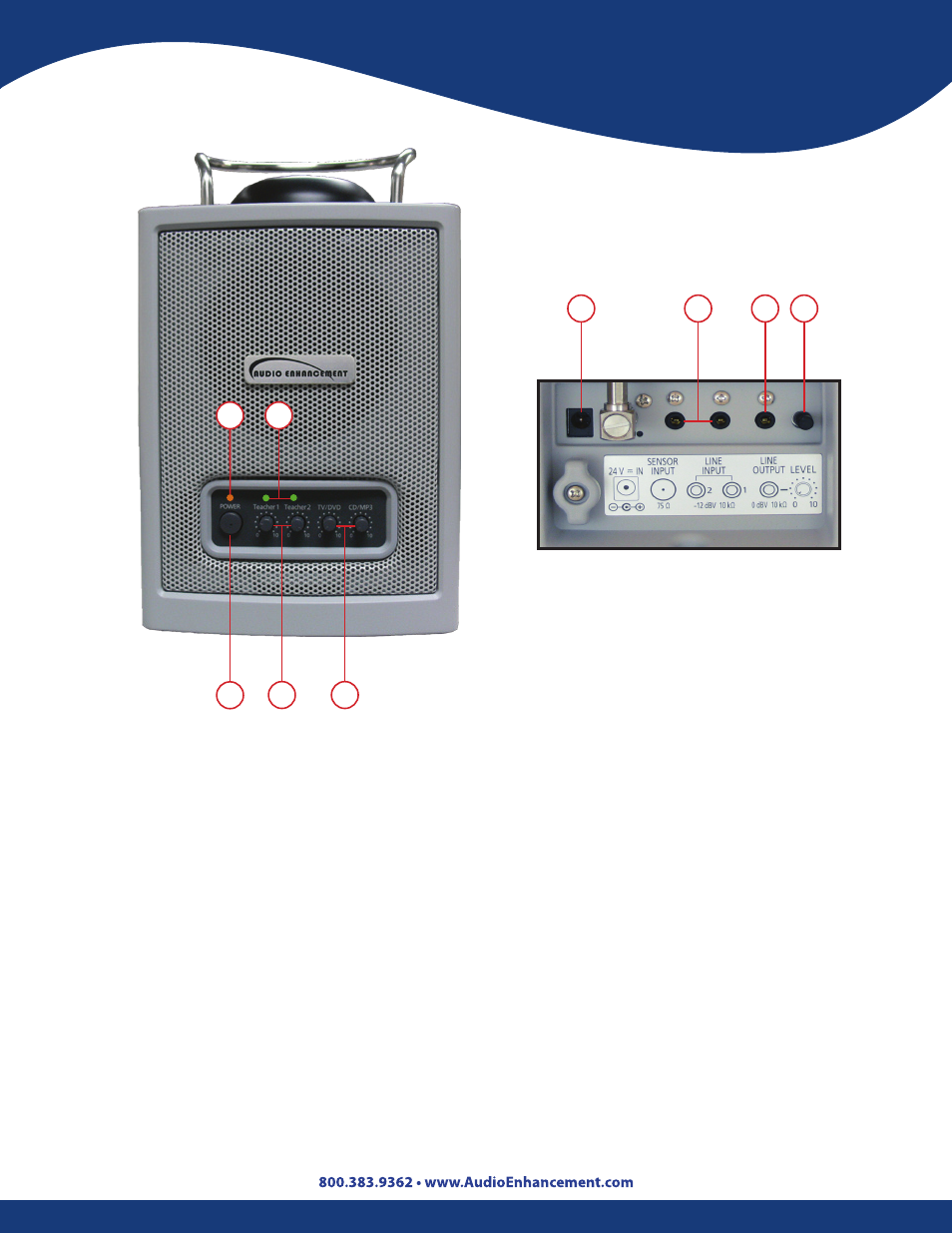

Operating Controls
1. Power Switch: Turns the power ON/OFF .
2. Power Indicator. Light is amber when the power is turned ON .
3. Infrared Microphone Volume Control [Teacher 1 and 2]: These controls are used to
adjust the level of the Teacher/Student microphones .
4. Infrared Signal Indicator [Teacher 1 and 2]: Lights green when the infrared wireless
receiver is receiving a signal from a microphone .
5.
Auxiliary Input Volume Controls [TV/DVD and CD/MP3]: These controls adjust the
volume of the auxiliary inputs connected to the input connectors .
6. Connector for AC Adapter: Use adapter 3A-621DA24 .
7. Auxiliary Line Level Input Connectors: 3 .5 mm stereo mixed-to-mono .
8. Line Level Output: 3 .5 mm stereo (mono source) .
9. Line Level Output Level Control: Allows you to adjust the volume level up or down .
SoloSolution
6
4
2
9
8
7
1
3
5
