Wi-Fi Installation Manual
Firmware Update
Ap
pe
nd
ix
Tr
ou
ble
sh
oo
tin
g
Con
figur
at
io
n
Ho
mi
ng C
lo
ck
Fi
rmwa
re
Up
da
te
Fac
to
ry
D
efa
ul
ts
Re
st
or
e
Bu
tt
on
Op
er
ati
on
In
st
al
la
tio
n
In
tr
odu
ct
io
n
Sp
ec
ific
at
io
ns
Occasionally American Time will have new firmware updates available. Contact American Time for the most recent firmware
version available. Firmware updates require access to the internet through port 80.
n
Note: If traffic is redirected on port 80, firmware updates will fail. Prior to completing the firmware update process verify
internet access is available on port 80.
To complete a firmware update, complete the following process:

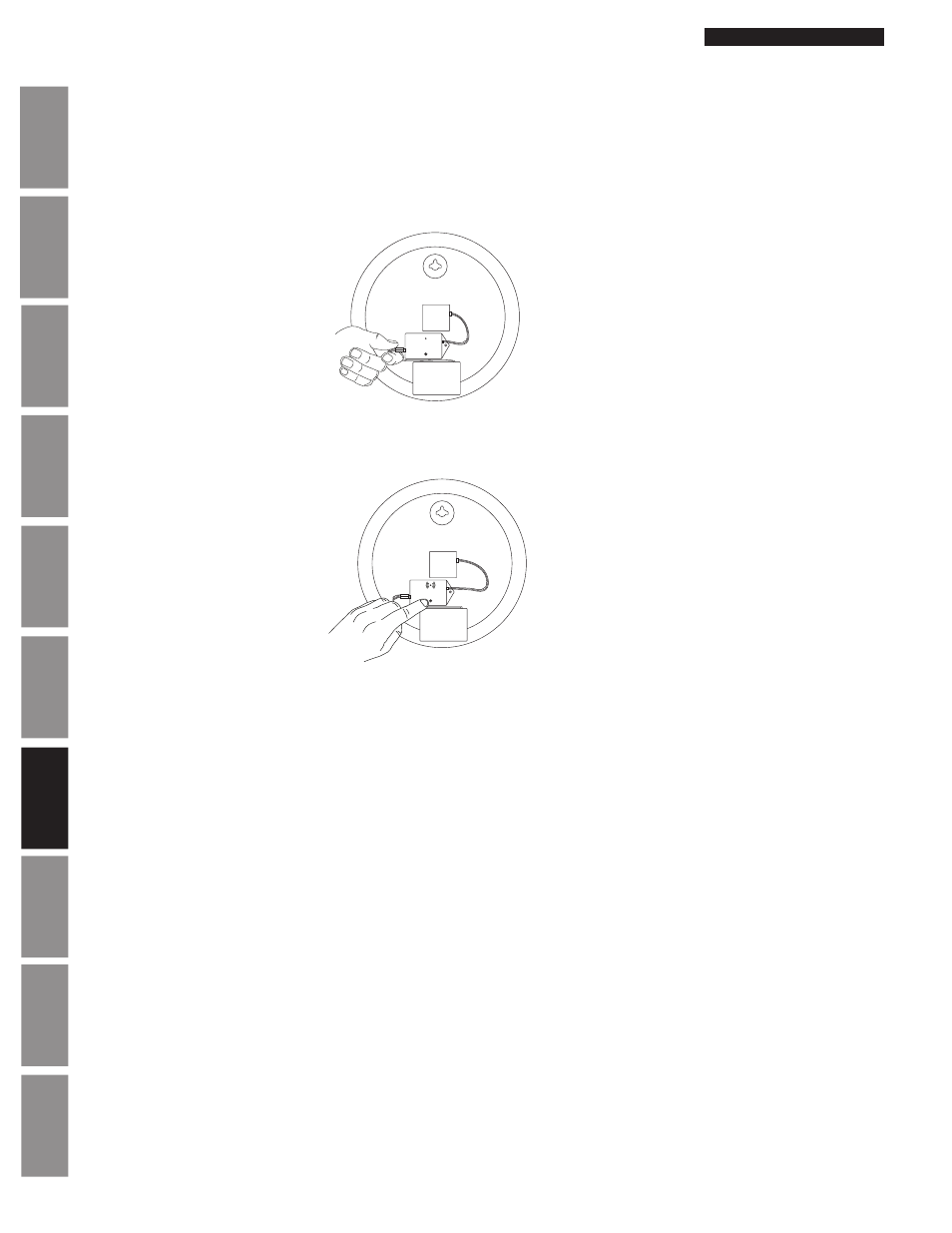

1. Apply power to Wi-Fi module by inserting the barrel plug of the battery pack into the left side of the Wi-Fi module where the
power connection is located.
2. Verify the LED starts flashing.
3. Press and hold the button located on the middle of the Wi-Fi module.
a. The LED should turn solid green to indicate the button press (continue holding the button).
b. Wait for the LED to flash orange one time (do not release the button).
c. Wait for the LED to flash orange twice (do not release the button).
d. Wait for the LED to flash orange three times.
4. Release the button.
a. Verify the LED alternates green/orange/red.
b.
Verify LED turns off.
c. Verify LED flashes red.
n
Note: If the LED turns solid red for approximately 3 seconds, the firmware update process failed. To verify firmware update
process is successful connect to clock in configuration mode and verify firmware version at the bottom of the browser page.
Contact American Time technical support at 800-328-8996.
5. Power cycle Wi-Fi module by disconnecting barrel plug of the battery pack for 5 seconds and reconnecting.
